ENERMAX ECA-MS30 Series User Manual

ECA-MS30 Series
User's Manual
English
Handbuch
Deutsch
Instrukcja obsługi
Polski
ユーザ マニュアル
日本語
使用手冊
繁中
사용자 매뉴얼
Korean
©2019 ENERMAX TECHNOLOGY CORPORATION. All right reserved.
Specifications are subject to change without prior notice.
Some trademarks may be claimed as the property of others.
2.2

How to Install the Motherboard

So installieren Sie das Motherboard
Jak zamontować płytę główną
マザーボードの取り付け方法
安裝主機板
메인보드 설치 방법
2
1
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
MarbleShell MS30 Bianco o cerca il tuo prodotto tra le
Chapter 1 :
•Product Overview •Produkteinführung •Opis produktu
제품 구성 요소
•
• 產品槪觀 •
製品の説明

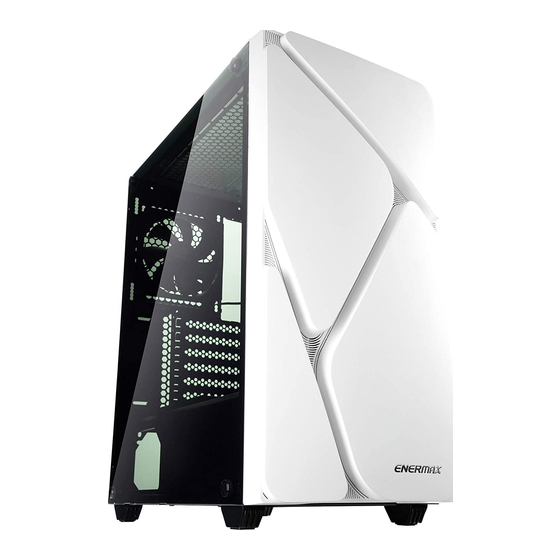

1.1 Product View
Produktskizze
Rozkład elementów
製品ビュー
產品外觀
제품 외관
USB3.0
USB
Headphone
Microphone
Reset
Power
2.3

How to Install Power Supply

Netzteileinbau
Jak zainstalować zasilacz
komputerowy
電源取り付け方法
安裝電源供應器
파워서플라이 설치 방법
1
A
Remove the HDD cage to create extra space for cable management
2
1
B
Move the HDD cage forward to create extra space for cable management
2
1
migliori offerte di Case e Alimentatori
1.2

Specs

Technische Daten
Dane techniczne
スペック
產品規格
사양
Model Name ECA-MS30 series
Dimensions D407 x W215 x H460mm
Material
SPCC, T=0.5mm
M/B Type ATX, Micro ATX, Mini ATX
USB3.0 x 2, USB2.0 x 2, HD Audio,
I/O
Ligh�ng control (reset bu�on)
3.5"
Drive Bays
2.5"
Expansion Slots
Front 2 x 140mm / 3 x 120mm
Fan Slots
Top 2 x 140mm / 2 x 120mm
Rear 1 x 140mm / 1 x 120mm
Front 360mm / 280mm / 240mm radiator
Liquid Cooling Top 280mm / 240mm radiator
Rear 140mm / 120mm radiator
PSU 160mm
Suggested VGA Card Length: 357mm
Clearance
Suggested CPU Cooler Height: 175mm
*Product specifications are subject to change without notice.
*Options vary by countries or regions.
*For detailed information please visit our website at www.enermax.com
2.4 How to Install Internal 2.5" & 3.5" Device
Installa�on von internen 2,5"- und 3,5"-Laufwerken
Instalacja wewnętrznych napędów 2.5"/3.5"
内部2.5インチと3.5インチデバイスの取り付け
安裝隱藏之3.5"/2.5"裝置
드라이브 설치 방법
2.5"/3.5"
2.4.1
A
2
B
2
Chapter 2 :
•Installa�on Guide •Montageanleitung •Instrukcja montażu
• 組裝說明
• 取り付けの説明
2.1

How to Remove Both Side Panels

En�ernen der Seitenwände
Demontaż panelów bocznych
両サイ ドパネルの取り外し
兩側側板拆卸
측면 판넬 탈 부착 방법
2
5
7
1
2
2.4.2
A
B
1
1
Enermax
•설치 가이드
1
2
*Hold the lower edge of glass panel
to avoid falling when removing
2
