royer R-101 Brochure & Specs

The R-101 is a new breed of modern ribbon microphone designed
for today's studio and live environments, exhibiting a flat
frequency response and a well balanced, panoramic soundfield.
Its ability to withstand 135dB SPL @ 30Hz makes it ideal for appli-
cations that were previously off limits to ribbon microphones.
The R-101 incorporates many advancements pioneered by Royer
Labs, including multi-layered wind screening for superior protec-
tion from air blasts and plosives. The screening also provides
reduced proximity effect, allowing for closer miking with less bass
buildup. The ribbon element's smooth frequency response and
phase linearity, coupled with sensitivity levels surpassing those of
"classic" ribbon microphones, make this microphone ideal for digital recording.
A perfect choice for electric guitars, brass instruments and drums, the R-101's
figure-8 pattern also conveys superb ambience and depth when used for room
miking applications.
The R-101 incorporates Royer's patented offset-ribbon technology and a low
mass, 2.5-micron aluminum (99.9% pure) ribbon element. The motor assem-
bly's flux-frame and rare earth Neodymium magnets create a powerful magnetic
field which increases sensitivity while reducing stray magnetic radiation.
The R-101's offset-ribbon design positions the ribbon element towards the front
of the microphone body, which allows for higher SPL handling on the front (logo)
side and the option of a brighter response when recording lower SPL sound
sources on the back side (3 feet and closer; phase reversed in this position).
R-101 FEATURES
• High SPL capabilities for electric guitar and percussion
• Multi-layered wind screen provides superior protection to ribbon element
• No internal electronics to overload or produce distortion up to
maximum SPL rating
• Extremely low residual noise
• Ribbon element not affected by heat or humidity
• Absence of high-frequency peaks, "ringing" and phase shifts
• Equal sensitivity from front or back of element
RECOMMENDED APPLICATIONS
• Close miking
• Electric & acoustic guitars
• Drum overheads, kick drum (see manual for position),
room miking
• Percussion instruments
• Brass, horn sections
• Strings-solo & sections
• Acoustic piano
• Vocals
• Live events-recording and sound reinforcement

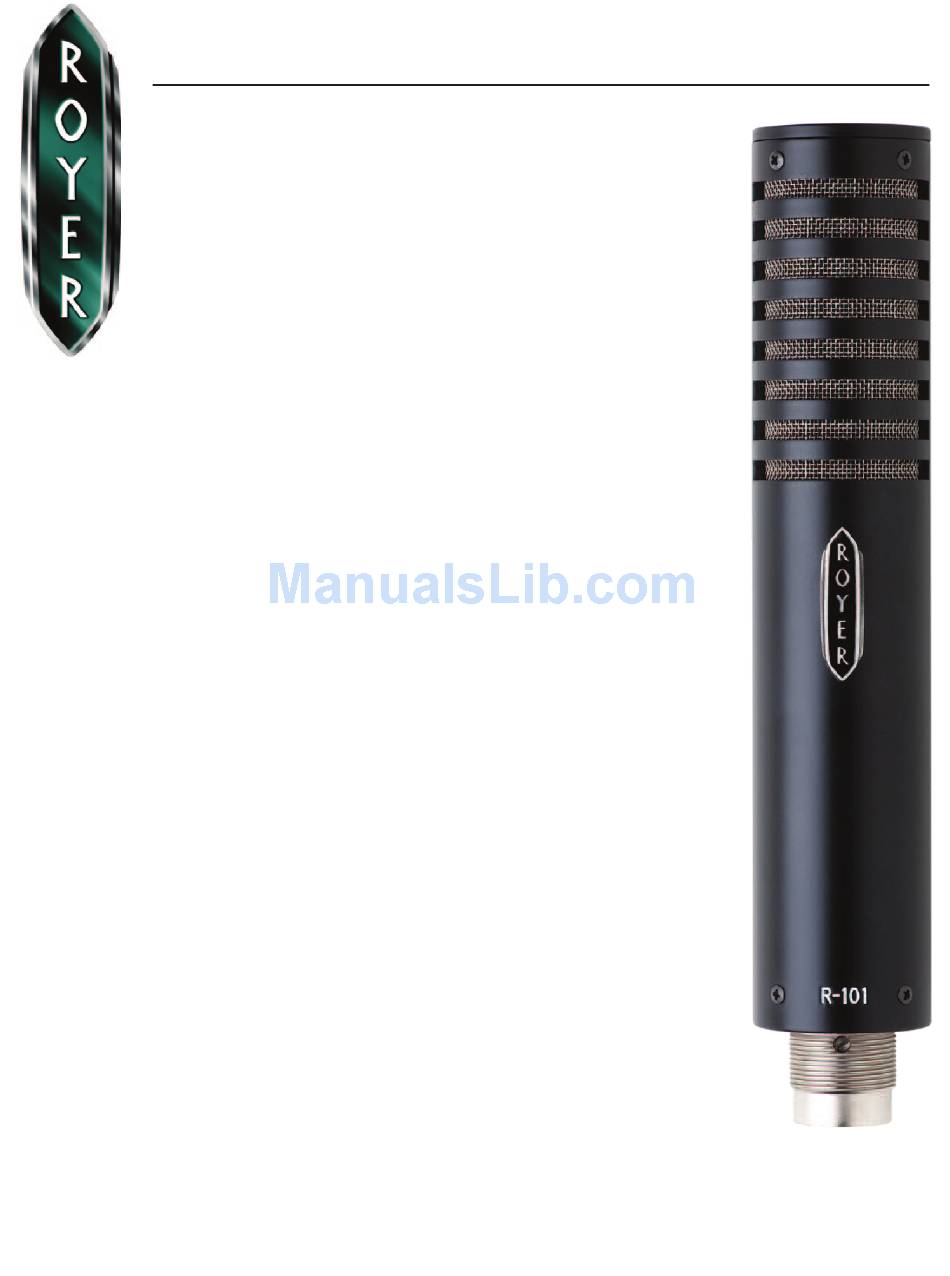

Ribbon-Velocity Studio Microphone

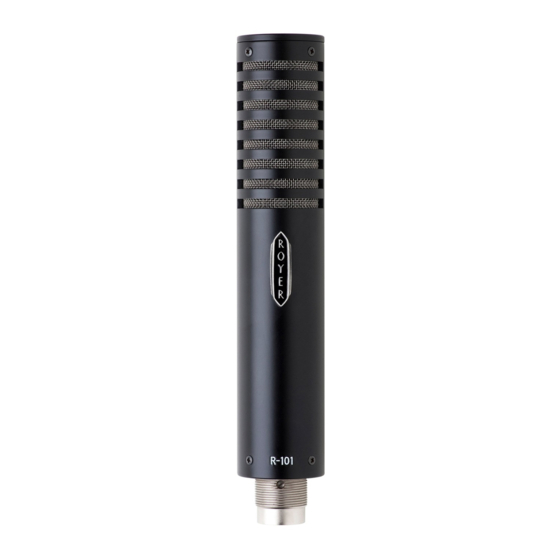

ROYER R-101
Actual size
