This menu displays 11 details of network status for protocols, Ethernet ports, IP, DNS, GK
(H.323) and SIP Proxy Server at a glance.
[Table 4-21] Description of Network Status Menu Details
Menu Detail
WAN Link
LAN Link
WAN Protocol
WAN Address
LAN Address
IPv6 Protocol
IPv6 Address
Primary DNS
Secondary DNS
Status of GK [H.323]
Status of SIP Proxy
Network Status

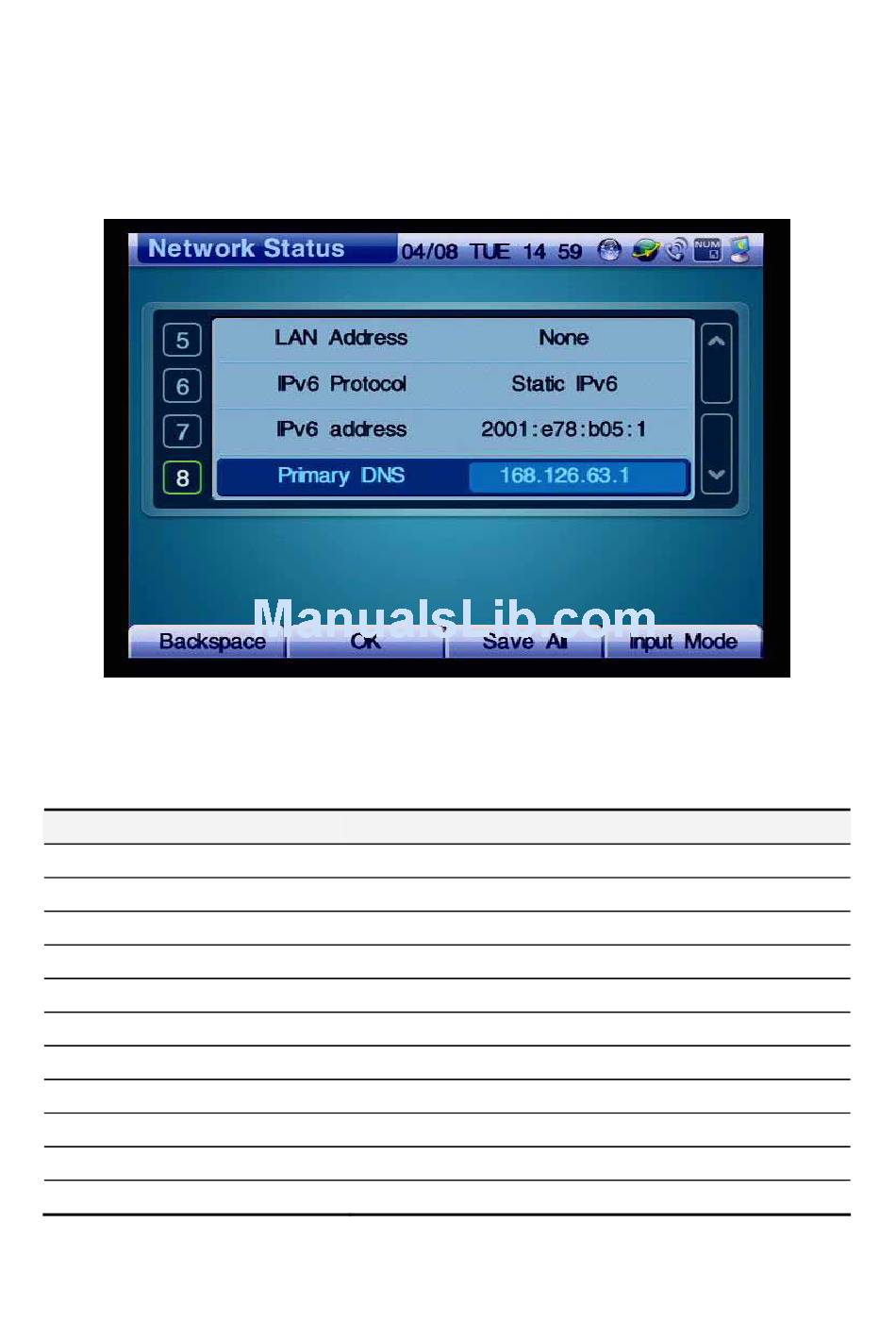

(Figure 4-159) Network Status Menu Section
Description
Indicates link up/down status of LAN0 interface
Indicates link up/down status of LAN1 (PC) interface
Indicates WAN IPv4 protocol(DHCP, Static IPv4, PPPoE)
Displays WAN IPv4 address
Displays LAN IPv4 address
Displays WAN IPv6 protocol
Displays WAN IPv6 address
Displays the Primary Domain Name Server
Displays the Secondary Domain Name Server
Indicates the registration status of gatekeeper
Indicates the registration status of SIP Proxy server
