Set up of the Hardware for Repeater Programming

1–8
• splitter
• serial cable
For programming the repeater you also need the programming software
(ServiceTool) and the power supply for the repeater. The ServiceTool is
not part of the Programming Kit Repeater but can be downloaded from
www.polycom.com. The power supply for the repeater is to be ordered
separately (Part no. UK version: 84642421, Part no. EU version:
84642420, Part no. US version: 84642432).

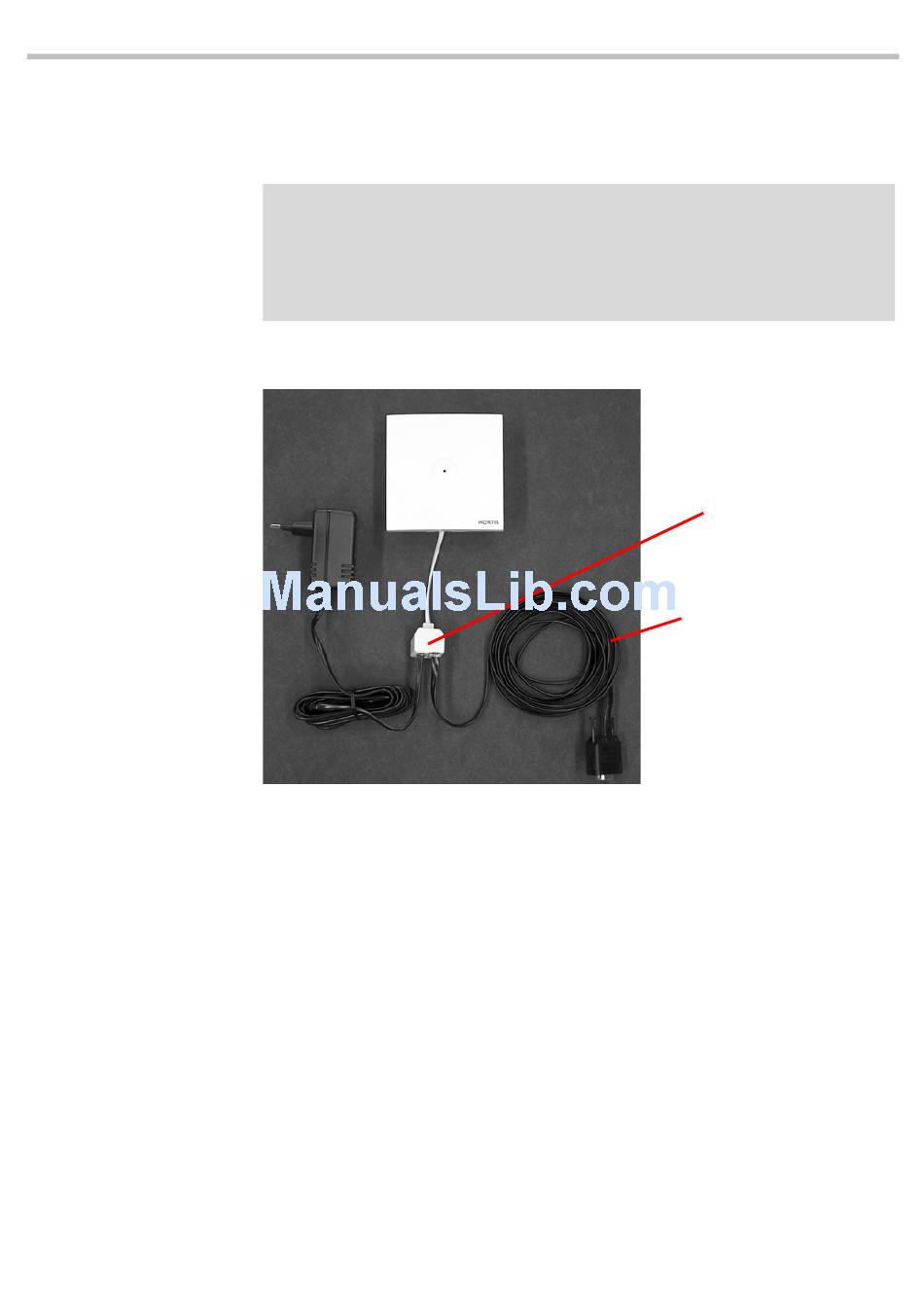

Figure 1-4 Programming Kit Repeater
Unplug the repeater power supply and insert the splitter.
1
Connect the repeater power supply to the splitter and the mains. LED
2
flashes.
Note: Ensure that you have the appropriate power supply for the local
requirements.
Connect the serial cable to the splitter and Com port of your computer.
3
The repeater is now ready for programming via the ServiceTool.
Note: The above mentioned order of the set up (point 1, 2 and 3) is
important.
Splitter
Serial cable
