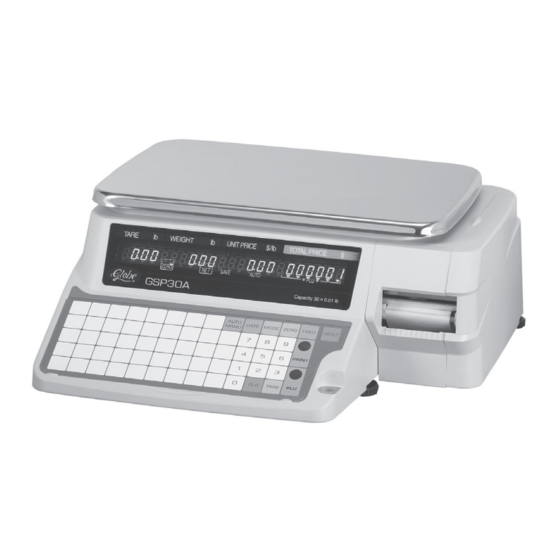

Globe GSP30A Instruction Manual
  1. Manuals
  2. Brands
  3. Globe Manuals
  4. Scales
  5. GSP30A
  6. Instruction manual

Globe GSP30A Instruction Manual

Label printing scale
Hide thumbs
Table of Contents

Advertisement

Quick Links

Model GSP30A
Instruction Manual for Globe
Label Printing Scale Model
For Service on Your Scale
1. Visit our website at www.globeslicers.com
(select the Support / Parts drop down).
2. Or call the Globe service department at 937-297-7247 and ask for contact
information for your local service company.
Visit our website for information on additional products available from Globe.
www.globeslicers.com
Slicers, Mixers, Countertop Cooking Equipment, Meat Choppers, & Scales
- IMPORTANT SAFETY NOTICE -
This manual contains important safety instructions which
must be strictly followed when using this equipment.
Model #:
Serial #:
GSP30A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSP30A and is the answer not in the manual?

Questions and answers

Related Manuals for Globe GSP30A

Summary of Contents for Globe GSP30A

  • Page 1 1. Visit our website at www.globeslicers.com (select the Support / Parts drop down). 2. Or call the Globe service department at 937-297-7247 and ask for contact information for your local service company. Visit our website for information on additional products available from Globe.

  • Page 3: Table Of Contents

    CLEANING/MAINTENANCE ............................ 17 TROUBLESHOOTING ............................. 18 WARRANTY ................................19 GLOBE FOOD EQUIPMENT CO. 2153 DRYDEN RD DAYTON, OH 45439 TOLL FREE: 800-347-5423 PHONE: 937-299-5493 FAX: 937-299-4147 E-MAIL: globeinfo@globeslicers.com WEBSITE: www.globeslicers.com © Globe Food Equipment Company, 2010 7-2010 Printed in the U.S.A.

  • Page 4: Important Notice

    Important Notice YOU MUST CALL YOUR LOCAL WEIGHTS AND MEASURES OFFICE BEFORE YOU USE YOUR NEW SCALE. USUALLY WEIGHTS AND MEASURES IS A DEPARTMENT OF THE COUNTY AUDITOR’S OFFICE. THIS SCALE MUST BE CERTIFIED BEFORE IT CAN BE USED. YOU RUN THE RISK OF BEING FINED IF THIS SCALE IS NOT CERTIFIED BY YOUR LOCAL WEIGHTS AND MEASURES.

  • Page 5: Installation

    Installation Make sure the scale is placed on a stable flat surface. Avoid the following areas when installing the machine. • Areas subject to high temperatures or high humidity • Areas exposed to direct sunlight • Areas where water or other liquids are easily spilled on the machine •...

  • Page 6: Loading/Unloading Labels

    Loading/Unloading Labels Metal Guide Stopper Lever Release Lever Roll Holder Lock Lever Winding Bobbin Winding Bobbin **Label paper Lever must be against this edge. Figure 6-1 *Label paper must go under this bar. IMPORTANT: Before installing a new roll of labels remove 5 to 6 blank labels so only backing paper is fed through the printer.

  • Page 7: Loading/Unloading Labels

    Loading/Unloading Labels 12. Push down on the lock lever until the print head locks into position. 13. With the scale plugged in and turned on, press the FEED key on the keypad once or twice in order to securely turn the paper around the winding bobbin. Continue to press the FEED button until the labels are ejected from the printer.

  • Page 8: Initial Scale Setup

    Initial Scale Set Up NOTE: All programming procedures will use the setup keysheet, which is the one permanently attached to the scale. Changing Current Date And Time IMPORTANT: Before using the scale for the first time, follow these steps to make sure that the current date and time is correct.

  • Page 9: Plu Setup

    POS number (max 5 digits) and press the ENTER key. NOTE: The scale can be reprogrammed to accept a 6 digit PLU or POS number. Contact Globe’s technical service department for assistance. 13. Repeat steps 4 through 12 to enter additional PLU numbers. When complete press the MODE key to return to normal operation.

  • Page 10: Setting Up A Default Plu

    PLU Set Up Setting Up A Default PLU NOTE: The scale is preprogrammed with a default PLU number 1, which has no product name, price, or tare. This allows the scale to be used as a basic label printing scale without PLU’s. •...

  • Page 11: Preset Key Setup

    Preset Key Set Up Setting Up Preset Keys You will need to use the setup keysheet, which is permanently attached and the operating keysheet. 1. Make sure the scale is plugged in, turned on, and there is nothing on the platter. 2.

  • Page 12: Deleting Preset Keys

    Before the safe handling labels can be used, the scale needs to be set up for the new label size. 1. Load the labels following the procedures on page 5 of the GSP30A operator and owners manual. 2. Make sure nothing is on the platter.

  • Page 13: Operating Instructions

    Operating Instructions (Default PLU) The GSP30A scale is designed to print the following information: PLU Name, Extra Message, Sell By Date, Packed Date, Unit Price, Tare, Weight, PLU Number, Total Price, Bar Code, Store Name, Store Address The PLU number, name, extra message, sell by date, packed date will need to be setup (see page 9 for instructions).

  • Page 14: Manual Label Print

    Operating Instructions (PLU’s) Manual Label Print 1. Make sure the scale is plugged in, the platter is on top of the scale, the scale is turned on and the operating keysheet is placed under the plastic covering. 2. Enter a PLU number and press the PLU key or press one of the preset keys. NOTE: To access the upper level of preset keys press the MODE key and then the preset key.

  • Page 15: Using Function Keys

    Operating Instructions (Function Keys) Using Function Keys NOTE: Function keys must be set up as preset keys (see page 11 for set up of function keys). Fixed Price - Used to temporarily change the selling price for a fixed price item. 1.

  • Page 16: Locking/Unlocking Pricing

    Operating Instructions (Function Keys) -$ Amount Discount - Used to temporarily subtract an amount from the total price. 1. Key in the PLU and press the PLU key. 2. If the PLU is a fixed price item continue with step 3. If the PLU is a weighed item, place the product on the receiving tray so a total price is displayed.

  • Page 17: Cleaning/Maintenance

    Cleaning/Maintenance Cleaning • Disconnect the power supply before cleaning. • Keep the machine and key sheet free of dust and dirt. • Ensure that all spills are wiped clean, especially on the weigh platter. • Do not put components in dishwasher. •...

  • Page 18: Troubleshooting

    Troubleshooting Scale will not light up. 1. Check to make sure wall outlet has power to it. 2. Check and make sure power cord is plugged in. 3. Turn scale on by pushing the power switch on the left side of the scale. 4.

  • Page 19: Warranty

    Limited Scale Warranty Globe Food Equipment Company (“GFE”) warrants to the original purchaser of new equipment that said equipment, when installed in accordance with our instructions within the United States and subject to normal use, is free from defects in material or workmanship for a period of one year on parts (excludes wear/expendable parts), one year on labor from date of original installation, or 18 months from actual shipment date, whichever occurs first.
