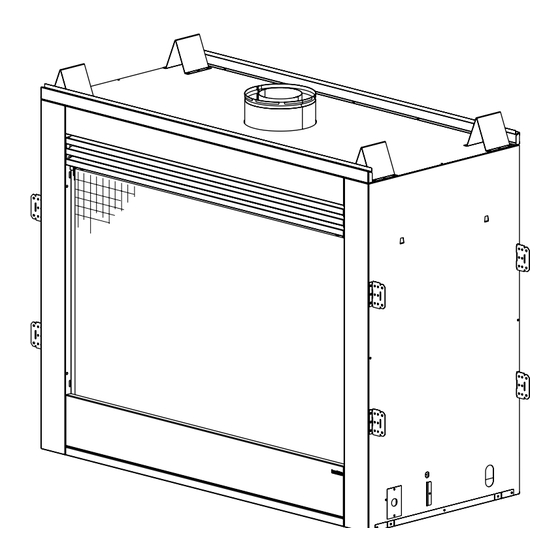

Heatilator GDST5244I Owner's Manual

See-through direct vent gas appliance
Hide thumbs Also See for GDST5244I:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
Models:
GDST5244I
GDST5244IL
See-Through
Direct Vent Gas Appliance
• Important operating and
maintenance instructions
included.
WARNING
If the information in these instruc-
tions is not followed exactly, a
fi re may result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of
this or any other appliance.
• What to do if you smell gas:
- Do not try to light any appliance.
- Do not touch any electrical switch. Do not
use any phone in your building.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
- If you cannot reach your gas supplier, call
the fi re department.
• Installation and service must be performed
by a qualifi ed installer, service agency, or
the gas supplier.
This appliance may be installed as an OEM installation
in manufactured home (USA only) or mobile home and
must be installed in accordance with the manufacturer's
instructions and the manufactured home construction and
safety standard, Title 24 CFR, Part 3280 or Standard for
Installation in Mobile Homes, CAN/CSA Z240MH.
This appliance is only for use with the type(s) of gas
indicated on the rating plate.
CAUTION
DO NOT DISCARD THIS MANUAL
Read, understand and follow
•
these instructions for safe
installation and operation.
Heatilator • GDST5244I • 4045-127 Rev Q • 02/07
Owner's Manual
Leave this manual with
•
party responsible for
use and operation.
WARNING
HOT! DO NOT TOUCH.
SEVERE BURNS MAY RESULT.
CLOTHING IGNITION MAY RESULT.
Glass and other surfaces are hot during
operation and cool down.
•
Keep children away.
•
CAREFULLY SUPERVISE children in same room as
appliance.
•
Alert children and adults to hazards of high
temperatures.
•
Do NOT operate with protective barriers removed or
door open.
•
Keep clothing, furniture, draperies and other
combustibles away.
This appliance has been supplied with an integral barrier to
prevent direct contact with the fi xed glass panel. Do NOT
operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the bar-
rier is not present or help is needed to properly install one.
In the Commonwealth of Massachusetts:
•
installation must be performed by a licensed plumber
or gas fitter;
See Table of Contents for location of additional Common-
wealth of Massachusetts requirements.
Installation and service of this appliance should be performed
by qualified personnel. Hearth & Home Technologies
suggests NFI certifi ed or factory-trained
professionals, or technicians supervised
by an NFI certifi ed professional.
Installation and Operation
1
