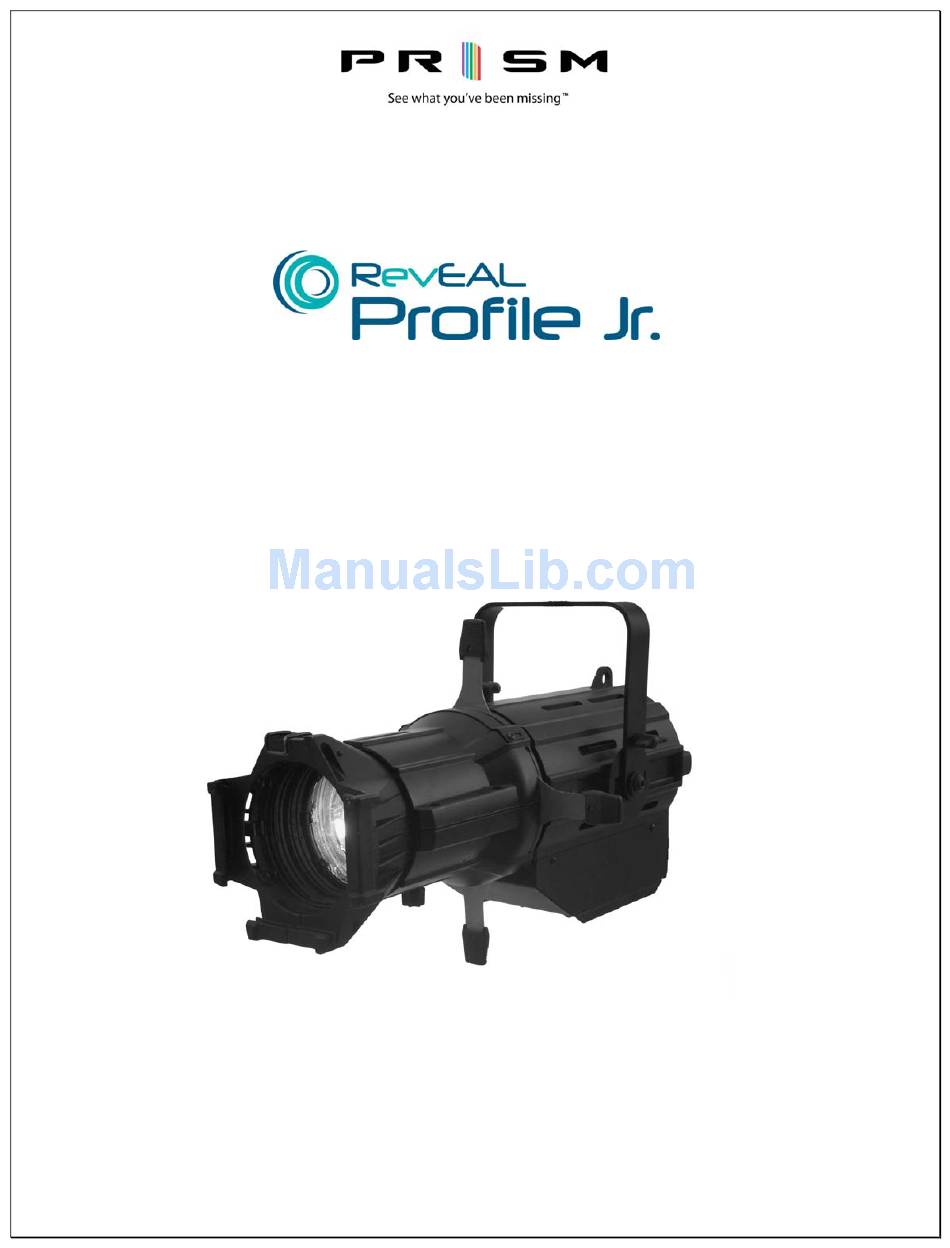

Page 1: User Manual
User Manual User Manual - RevEAL Profile Junior – Prism Projection, Inc. -
Page 2: Basic Installation
• It is not intended for use on dimming circuits. • Contact Prism Projection Service and Support prior to any service work or the product warranty may be voided. Basic Installation Before installing this product please make sure that you have read all warnings and safety information provided in this manual. -
Page 3: Product Overview
The air vents located around the top portion of the fixture body should be clear of obstructions. Product Overview Mounting Hole Lens Barrel Lock Screw Yoke Handle Lock Knob Accessory Slot Yoke Position Adjustment Screw (2) Lens Barrel User Manual - RevEAL Profile Junior – Prism Projection, Inc. -
Page 4: User Interface
All connections, settings and control options are located on the rear of the fixture, as illustrated below. The Navigation Buttons can be used to access control settings and display fixture status on the Navigation Screen. Intensity Control Knob DMX In/Out Firmware Update Port Navigation Screen Navigation Buttons Power On Off Switch (Connector) Power In/Out Ethernet Port User Manual - RevEAL Profile Junior – Prism Projection, Inc. - Page 5 This screen displays the CIE value of the color of the light being produced by the fixture. The screen shows both the target and actual color value in X,Y coordinate values to assure TrueSource active color calibration is active and monitoring performance. User Manual - RevEAL Profile Junior – Prism Projection, Inc.
- Page 6 Color Modes RevEAL Profile Junior offers a calibrated color mode and the option to only use white (CCT). Use the up and down buttons to select “Color” then use the left and right buttons to choose between no color and XY mode.
- Page 7 White (CCT) Available Options: Enabled, Disabled, Correction When enabled the White setting creates a Correlated Color Temperature (CCT)Channel. If the CCT channel is at any value other than 0, white colors will be produced by the instrument. At full the color generated will be 8000K white, at 11% the color generated will be ~3200K white. As the channel value is raised the color temperature will go up. If CCT is at any value other than 0 and the Color Mode is any setting other than None, the instrument will ignore the color channels and only create white light.
- Page 8 RevEAL Profile Junior DMX Chart Variable White Menu Settings: Channel Personality> White (Full White, Variable White) Channel Personality> Intensity (Linear, Standard) Channel Personality> Advanced Settings > Energy (Full, Eco) Channel Personality> Advanced Settings > Refresh Rate Advanced Settings > Algorithm Advanced Settings >...
- Page 9 RevEAL Profile Junior DMX Chart Fixed White Menu Settings: Channel Personality> White (Full White) Channel Personality> Intensity (Linear, Standard) Channel Personality> Advanced Settings > Energy (Full, Eco) Channel Personality> Advanced Settings > Refresh Rate Advanced Settings > Algorithm Control 8 Bit...
- Page 10 RevEAL Profile Junior DMX Chart Variable White + Correction Menu Settings: Channel Personality> White (Variable CCT, CCT + Correction) Channel Personality> Intensity (Linear, Standard) Channel Personality> Advanced Settings > Energy (Full, Eco) Channel Personality> Advanced Settings > Refresh Rate Advanced Settings > Algorithm...
- Page 11 RevEAL Profile Junior DMX Chart Color + Variable White + Correction Menu Settings: Channel Personality> Color (X,Y) Channel Personality> White (Variable CCT, CCT + Correction) Channel Personality> Intensity (Linear, Standard) Channel Personality> Advanced Settings > Energy (Full, Eco) Channel Personality>...
- Page 12 Prism Projection, Inc. 8228 East 124 Street South Sully, IA 50251 +1 (641) 594‐3356 info@prismprojection.com To receive an electronic copy of this user manual, please scan the QR code below. ...
