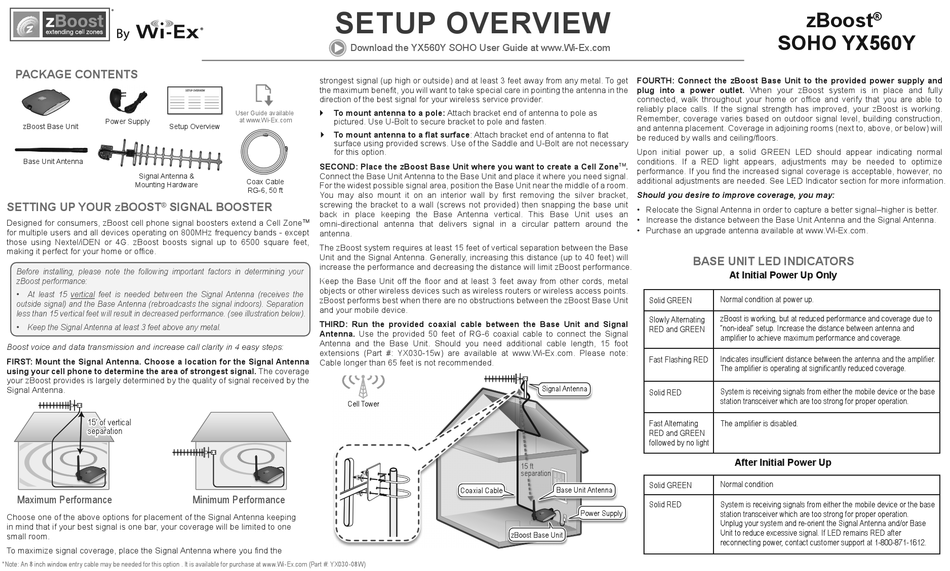

zBoost SOHO YX560Y Setup Overview

PACKAGE CONTENTS

Power Supply
zBoost Base Unit
Setup Overview
Base Unit Antenna
Signal Antenna &
Mounting Hardware
SETTING UP YOUR zBOOST SIGNAL BOOSTER
®
Designed for consumers, zBoost cell phone signal boosters extend a Cell Zone
for multiple users and all devices operating on 800MHz frequency bands - except
those using Nextel/iDEN or 4G. zBoost boosts signal up to 6500 square feet,
making it perfect for your home or office.
Before installing, please note the following important factors in determining your
zBoost performance:
• At least 15 vertical feet is needed between the Signal Antenna (receives the
outside signal) and the Base Antenna (rebroadcasts the signal indoors). Separation
less than 15 vertical feet will result in decreased performance. (see illustration below).
• Keep the Signal Antenna at least 3 feet above any metal.
Boost voice and data transmission and increase call clarity in 4 easy steps:
FIRST: Mount the Signal Antenna. Choose a location for the Signal Antenna
using your cell phone to determine the area of strongest signal. The coverage
your zBoost provides is largely determined by the quality of signal received by the
Signal Antenna.
15' of vertical 15' of vertical 15' of vertical 15' of vertical
separation separation separation separation
Maximum Performance
Choose one of the above options for placement of the Signal Antenna keeping
in mind that if your best signal is one bar, your coverage will be limited to one
small room.
To maximize signal coverage, place the Signal Antenna where you find the
*Note: An 8 inch window entry cable may be needed for this option . It is available for purchase at www.Wi-Ex.com (Part #: YX030-08W)
SETUP OVERVIEW
Download the YX560Y SOHO User Guide at www.Wi-Ex.com
strongest signal (up high or outside) and at least 3 feet away from any metal. To get
the maximum benefit, you will want to take special care in pointing the antenna in the
SETUP OVERVIEW
direction of the best signal for your wireless service provider.
 To mount antenna to a pole: Attach bracket end of antenna to pole as
User Guide available
at www.Wi-Ex.com pictured. Use U-Bolt to secure bracket to pole and fasten.
 To mount antenna to a flat surface: Attach bracket end of antenna to flat
surface using provided screws. Use of the Saddle and U-Bolt are not necessary
for this option.

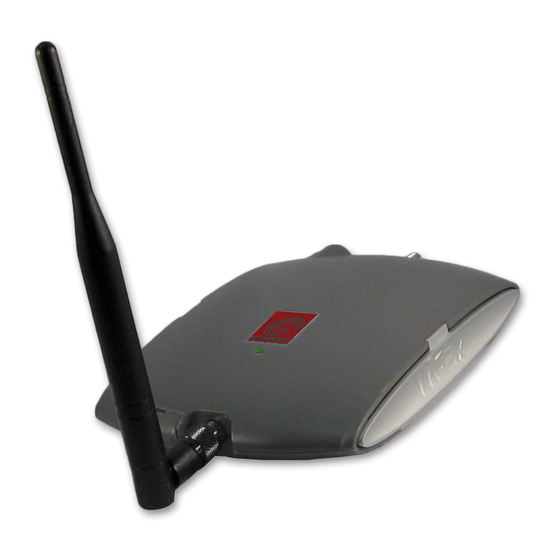

SECOND: Place the zBoost Base Unit where you want to create a Cell Zone
Connect the Base Unit Antenna to the Base Unit and place it where you need signal.
Coax Cable
For the widest possible signal area, position the Base Unit near the middle of a room.
RG-6, 50 ft
You may also mount it on an interior wall by first removing the silver bracket,
screwing the bracket to a wall (screws not provided) then snapping the base unit
back in place keeping the Base Antenna vertical. This Base Unit uses an
TM
omni-directional antenna that delivers signal in a circular pattern around the
antenna.
The zBoost system requires at least 15 feet of vertical separation between the Base
Unit and the Signal Antenna. Generally, increasing this distance (up to 40 feet) will
increase the performance and decreasing the distance will limit zBoost performance.
Keep the Base Unit off the floor and at least 3 feet away from other cords, metal
objects or other wireless devices such as wireless routers or wireless access points.
zBoost performs best when there are no obstructions between the zBoost Base Unit
and your mobile device.
THIRD: Run the provided coaxial cable between the Base Unit and Signal
Antenna. Use the provided 50 feet of RG-6 coaxial cable to connect the Signal
Antenna and the Base Unit. Should you need additional cable length, 15 foot
extensions (Part #: YX030-15w) are available at www.Wi-Ex.com. Please note:
Cable longer than 65 feet is not recommended.
Cell Tower Cell Tower
Minimum Performance
FOURTH: Connect the zBoost Base Unit to the provided power supply and
plug into a power outlet. When your zBoost system is in place and fully
connected, walk throughout your home or office and verify that you are able to
reliably place calls. If the signal strength has improved, your zBoost is working.
Remember, coverage varies based on outdoor signal level, building construction,
and antenna placement. Coverage in adjoining rooms (next to, above, or below) will
be reduced by walls and ceiling/floors.
Upon initial power up, a solid GREEN LED should appear indicating normal
conditions. If a RED light appears, adjustments may be needed to optimize
.
TM
performance. If you find the increased signal coverage is acceptable, however, no
additional adjustments are needed. See LED Indicator section for more information.
Should you desire to improve coverage, you may:
• Relocate the Signal Antenna in order to capture a better signal–higher is better.
• Increase the distance between the Base Unit Antenna and the Signal Antenna.
• Purchase an upgrade antenna available at www.Wi-Ex.com.
Signal Antenna
Base Unit Antenna
Coaxial Cable Coaxial Cable
Power Supply
zBoost Base Unit zBo
zBoost
SOHO YX560Y
BASE UNIT LED INDICATORS
At Initial Power Up Only
Normal condition at power up.
Solid GREEN
zBoost is working, but at reduced performance and coverage due to
Slowly Alternating
"non-ideal" setup. Increase the distance between antenna and
RED and GREEN
amplifier to achieve maximum performance and coverage.
Indicates insufficient distance between the antenna and the amplifier.
Fast Flashing RED
The amplifier is operating at significantly reduced coverage.
System is receiving signals from either the mobile device or the base
Solid RED
station transceiver which are too strong for proper operation.
Fast Alternating The amplifier is disabled.
RED and GREEN
followed by no light
After Initial Power Up
Normal condition
Solid GREEN
Solid RED System is receiving signals from either the mobile device or the base
station transceiver which are too strong for proper operation.
Unplug your system and re-orient the Signal Antenna and/or Base
Unit to reduce excessive signal. If LED remains RED after
reconnecting power, contact customer support at 1-800-871-1612.
®
