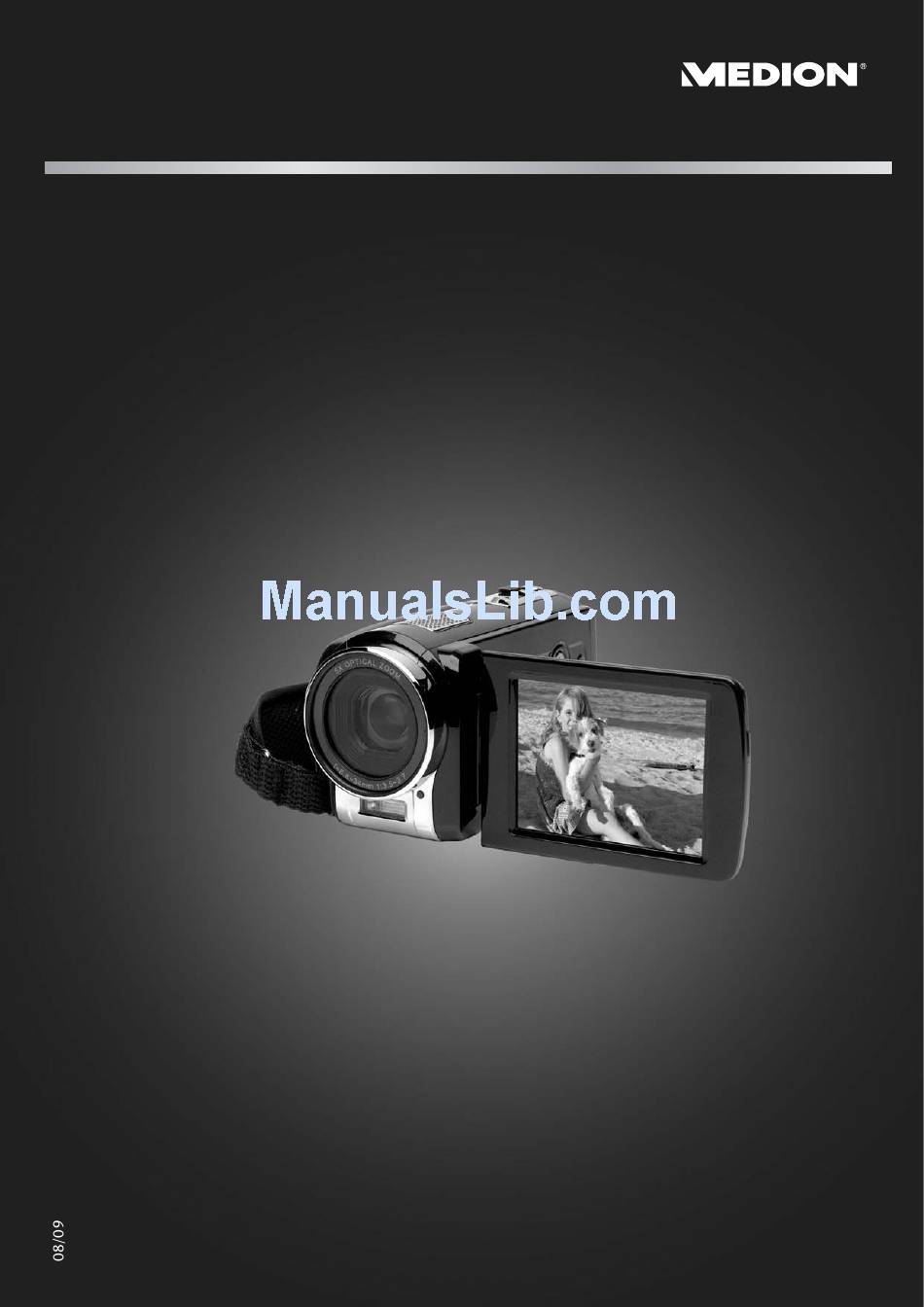

- Page 1 Digital Full HD Camcorder MEDION LIFE ® ® P47010 Instruction Manual MD 85960...
-
Page 2: Table Of Contents
Contents Safety instructions......................2 Danger of injuries ..........................2 Preventing damage to the camcorder ....................3 The Camcorder .........................3 Package contents ..........................3 Product description .........................4 Overview of the appliance .......................5 Getting started .........................6 Open the battery and card compartment..................6 Inserting and removing the battery....................6 Inserting and removing the SC card ....................6 Close the battery and card compartment..................6 Charging the battery........................6... -
Page 3: Safety Instructions
Safety instructions • This unit is not intended for use by people (including children) with reduced physical, sensory or mental abilities or for those without experience and/or knowledge, unless they are supervised by a person responsible for their safety or they have been instructed on its use. Children should be supervised to ensure they do not play with this unit. -
Page 4: Preventing Damage To The Camcorder
Preventing damage to the camcorder • If the battery is leaking, remove it from the camcorder immediately. Clean the contacts before inserting a new battery. • Use type NP60 lithium-ion batteries only. • Before inserting the battery, check that the contacts in the camcorder and on the batteries are clean. Clean the battery connections if necessary with a clean, dry cloth or an eraser. -
Page 5: Product Description
• Camcorder • Mains adapter • USB cable • HDMI cable • AV cable • Pouch • 2 x Li-Ion rechargeable batteries • CD with software and instruction manual • Quick Start Guide and guarantee documents Product description This camcorder combines the following functions in one easy-to-use device: •... -
Page 6: Overview Of The Appliance
Overview of the appliance Front Rear Lens Direction button UP; i: switch display information on and off Self-timer LED Direction button LEFT; Microphone : Self timer shutter button Loudspeaker OK button: confirm selection; Rocker switch T/W: open menu T: Telezoom; W: Wide angle Operation LED PICTURE shutter MOVIE shutter... -
Page 7: Getting Started
Getting started Open the battery and card compartment The compartment for the battery and memory is on the underside of the camera. Hold the camcorder so that the cover to the battery compartment is facing upwards. Slide the cover backwards towards the rear of the device. Inserting and removing the battery Pull the grey locking lever away from the battery compartment. -
Page 8: Basic Operation
Basic operation Switching the camcorder on and off To turn on the camera, open up the LCD panel. The display shows information and the operation LED shines green. To turn the camera off, shut the LCD panel or press the Power button. Changing the mode of operation The camera has a record and a playback mode. -
Page 9: Making Recordings
Manual white balance SD/SDHC card inserted Battery: full power; medium power; low power; empty battery Zoom meter: (1080p): 1x~10x (5x optical zoom+ 2x digital zoom). Other resolutions: 1x~20x (5x optical zoom + 4x digital zoom) Making recordings Movies Proceed as follows in order to record films: Lift the LC display flap. -
Page 10: The Menu In Record Mode
The menu in record mode To open the menu, press OK. In the main menu you will find four menus, indicated by picture symbols: • Film mode • Camera mode • Effects • Setting Using the on-screen menus To select a menu, press the direction buttons LEFT and RIGHT. To move up and down in the on-screen menu, use the direction buttons UP and DOWN. -
Page 11: Camera Mode" Menu
“Camera mode” menu Resolution The following settings are available for photo quality: Setting Explanation High Choose this setting if you want to have the photos printed or enlarged by a laboratory. Std (standard) Choose this setting if you want to print the photos or burn them onto a photo CD. Choose this setting if you want to post the photos on the Internet or e-mail them. -
Page 12: Settings" Menu
WB (White Balance) The camera adjusts the colour balance of images automatically. If you notice a colour cast in the preview on the LCD panel, you can also change the basic setting. The following settings are available: Setting Explanation Auto The camera sets the white balance automatically Daylight For shots taken in daylight. - Page 13 Format Here you can re-format the memory: • When a memory card is inserted, the card will be formatted; • When no memory card is inserted, the internal memory is formatted. CAUTION! If you format the memory all the data stored there will be deleted. Make sure that no important data are in the memory or on the card.
-
Page 14: Playing Back Recordings
Playing back recordings Play back movies on the LCD panel Press the button MODE. The main menu of playback mode is displayed. Select using the RIGHT/LEFT direction button. MOVIE Press OK. You see thumbnail previews of the recorded movies. At the top of the display, the movie number and the number of recordings are shown. -
Page 15: Functions In Playback Mode
Functions in playback mode Playback functions: movies In movie playback mode, further functions are available. Open a preview picture of a movie (see Play back movies on the LCD panel, page 13. Press OK. The playback menu is shown. The following options are available: •... -
Page 16: Playback Functions: Photos
Playback functions: photos In photo playback mode, further functions are available. Show a photo on the LCD panel (see Play back movies on the LCD panel, page 13. Press OK. The playback menu is shown. The following options are available: •... -
Page 17: Supplied Software
Supplied software System requirements To use the camera on the computer, the following system requirements must be met: • Intel Pentium III processor or higher • Windows XP/Vista • DirectX 9.0c or higher • 256 MB RAM • 1 GB free hard disk space •... - Page 18 The operation screen will appear: Select the folder that contains the video files you want to burn. Select the files Click button to add files to the slide show. Click Burn to Disc. Before starting the burning, select the drive with the blank DVD. Now you can create a title in the VCD or DVD menu and add a date.
-
Page 19: Youtube Direct
YouTube Direct The built-in YouTube Direct application offers you an easy way to upload your video clips directly to YouTube. To do so, you must have an account with YouTube Connect the camera to a PC with Internet access using the USB cable. Among the removable media, select the one with the YouTube symbol (in the picture: K:). -
Page 20: Troubleshooting
Troubleshooting Fault Cause Remedy The photos/films are blurred. Macro mode is enabled. Disable macro mode. The lens is dirty. Clean the lens. The photos/films have a colour The white balance is not set Select a white balance setting imbalance. correctly. matching the current light conditions. -
Page 21: Cleaning
Cleaning Before cleaning the device, always disconnect it from the mains supply. Only use a dry, soft cloth to clean the device. Do not use chemical solutions and cleaning products, because these may damage the unit’s surface and/or inscriptions. Technical specifications Image sensor 5 megapixel CMOS Modes... -
Page 22: Disposal
Disposal Packaging To prevent transport damage, your device is packed in packaging. All packaging materials that are no longer required can and should be recycled. Appliance At the end of its life, the appliance should not be disposed of in the normal household rubbish. Please consult your local authority for advice on correct and eco-friendly methods of disposal.
