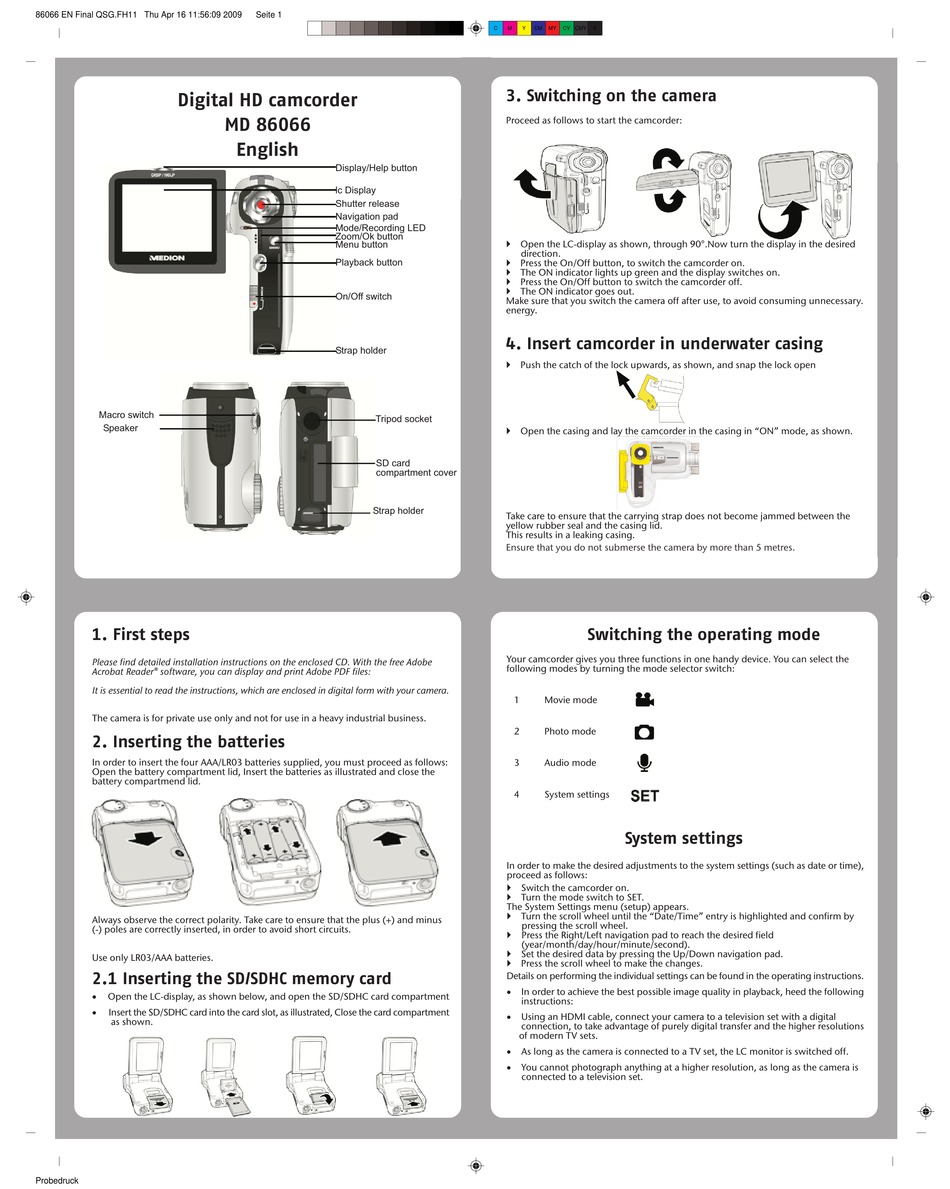

Medion MD 86066 Manual

86066 EN Final QSG.FH11 Thu Apr 16 11:56:09 2009
Digital HD camcorder
Macro switch
Speaker

1. First steps

Please find detailed installation instructions on the enclosed CD. With the free Adobe
Acrobat Reader® software, you can display and print Adobe PDF files:
It is essential to read the instructions, which are enclosed in digital form with your camera.
The camera is for private use only and not for use in a heavy industrial business.

2. Inserting the batteries

In order to insert the four AAA/LR03 batteries supplied, you must proceed as follows:
Open the battery compartment lid, Insert the batteries as illustrated and close the
battery compartmend lid.
Always observe the correct polarity. Take care to ensure that the plus (+) and minus
(-) poles are correctly inserted, in order to avoid short circuits.
Use only LR03/AAA batteries.

2.1 Inserting the SD/SDHC memory card

· Open the LC-display, as shown below, and open the SD/SDHC card compartment
· Insert the SD/SDHC card into the card slot, as illustrated, Close the card compartment
as shown.
Probedruck
Seite 1
MD 86066
English
Display/Help button
lc Display
Shutter release
Navigation pad
Mode/Recording LED
Zoom/Ok button
Menu button
Playback button
On/Off switch
Strap holder
Tripod socket
SD card
compartment cover
Strap holder
C M Y CM MY CY CMY K

3. Switching on the camera

Proceed as follows to start the camcorder:
} Open the LC-display as shown, through 90°.Now turn the display in the desired
direction.
} Press the On/Off button, to switch the camcorder on.
} The ON indicator lights up green and the display switches on.
} Press the On/Off button to switch the camcorder off.
} The ON indicator goes out.
Make sure that you switch the camera off after use, to avoid consuming unnecessary.
energy.

4. Insert camcorder in underwater casing

} Push the catch of the lock upwards, as shown, and snap the lock open
} Open the casing and lay the camcorder in the casing in “ON” mode, as shown.
Take care to ensure that the carrying strap does not become jammed between the
yellow rubber seal and the casing lid.
This results in a leaking casing.
Ensure that you do not submerse the camera by more than 5 metres.

Switching the operating mode

Your camcorder gives you three functions in one handy device. You can select the
following modes by turning the mode selector switch:
1 Movie mode
2 Photo mode
3 Audio mode
4

System settings

System settings
In order to make the desired adjustments to the system settings (such as date or time),
proceed as follows:
} Switch the camcorder on.
} Turn the mode switch to SET.
The System Settings menu (setup) appears.
} Turn the scroll wheel until the “Date/Time” entry is highlighted and confirm by
pressing the scroll wheel.
} Press the Right/Left navigation pad to reach the desired field
(year/month/day/hour/minute/second).
} Set the desired data by pressing the Up/Down navigation pad.
} Press the scroll wheel to make the changes.
Details on performing the individual settings can be found in the operating instructions.
· In order to achieve the best possible image quality in playback, heed the following
instructions:
· Using an HDMI cable, connect your camera to a television set with a digital
connection, to take advantage of purely digital transfer and the higher resolutions
of modern TV sets.
· As long as the camera is connected to a TV set, the LC monitor is switched off.
· You cannot photograph anything at a higher resolution, as long as the camera is
connected to a television set.
