Summary of Contents for ParkerVision System II Presenter
-
Page 1: Table Of Contents

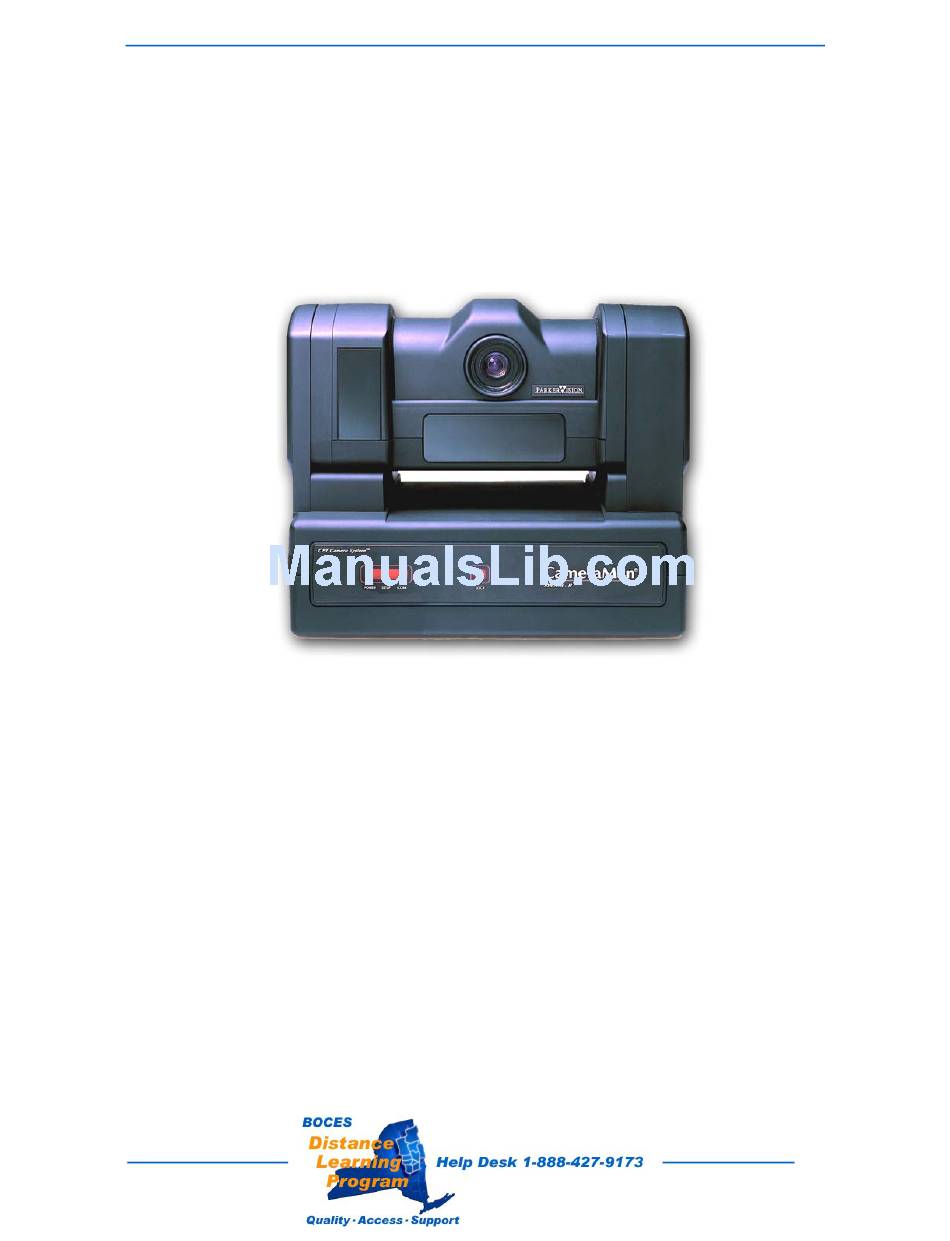

CameraMan System II Presenter Teacher Camera with autoTrack User Guide Overview of the Tracking System Tracking Ring - Power Pack & Belt Wearing the Tracker 3 - 4 To Activate autoTrack Overview of autoTrack Camera Views Setting or Changing autoTrack Camera Views... -
Page 2: Overview Of The Tracking System
Overview Overview A ParkerVision CameraMan System II Presenter is installed as the teacher camera in your distance learning classroom. This camera has an automatic tracking feature called autoTrack. When this feature is activated it allows the teacher to move about the classroom with the camera panning, tilting and focusing automatically and continuously, following the teacher’s movements. -
Page 3: Wearing The Tracker
Wearing the Tracker Using the clip on the back of the power pack’s nylon pouch, attach the Tracking Ring Power Pack either directly to your clothing or to the nylon Power Pack Belt. Do not place the Power Pack in your pocket. This interferes with the RF signal and may affect the audio and tracking capability. - Page 4 Wearing the Tracker cont. The Back Sensor should lie flat against the back of the collar or neck. The Front Sensor should be lying flat and centered on the body, just above chest level. When the teacher turns around to point to a map, for example, the back sensor continues to receive the infrared tracking signal from the camera and the camera will continue to automatically track the teacher’s movement.
-
Page 5: To Activate Autotrack
(See the Teacher Camera Control instructions in the Touch Panel User Guide section of this manual.) Activate one of the autoTrack Views on the CameraMan wireless - remote control keypad. It is possible to control the many of the functions of the autoTrack... -
Page 6: Overview Of Autotrack Camera Views
Overview of autoTrack Camera Views You can choose from four autoTRACK Views. You can store and recall these views from the Tracking System Keypad by pressing one of the autoTRACKView buttons shown on page 5. To emphasize facial expressions, you can change to a close head shot with the TIGHT autoTRACK View button. -
Page 7: Setting Or Changing Autotrack Camera Views
3. Press and hold the RIGHT button until you hear two beeps, indicating the new setting has been stored. To RECALL the right autoTRACK VIEW: Press and release the RIGHT View button. The CameraMan then recalls the information that you stored in the RIGHT button. -
Page 8: Adjusting View While In Or Out Of Autotrack Mode
Adjusting Camera View When you are In or Out of autoTrack mode SUBJECT POSITION arrows Adjustments to your position in the frame can be made while you are in autoTrack. Press any of the four directional Subject Position arrows to adjust your position in the current autoTRACK View. -
Page 9: Other Keypad Controls
Other Keypad Controls Location Preset Select Indicator LED Used to set and recall Indicates keypad is in preset positions. operation. autoTrack Views Subject Position See page 5. Controls See page 8. Focus Used to manually adjust Tracking Freeze the visual clarity of the Used to disengage teacher camera video. -
Page 10: Recharging The Tracking Power Pack
Recharging the Power Packs The Tracking Ring Power Pack comes with a built-in 4-hour Rechargeable Battery. When the battery is running low, the Battery LOW LED on the top of the Tracking Ring Power Pack will glow red. At this time, the Tracking Ring Power Pack should be recharged or the Auxiliary Battery Pack should be attached to the Tracking Ring Power Pack. -
Page 11: Using And Recharging The Auxiliary Power Pack
Using and Recharging the Auxiliary battery Pack A Rechargeable Auxiliary Battery Pack is available to connect with the Tracking Ring Power Pack for extra long use. When attached to the Tracking Ring Power Pack, the Auxiliary Battery Pack overrides the built-in battery. If more than 4 hours of use is required, connect the Auxiliary Battery Pack to the Tracking Ring Power Pack.
