Summary of Contents for Ozito OZRH1500WAK

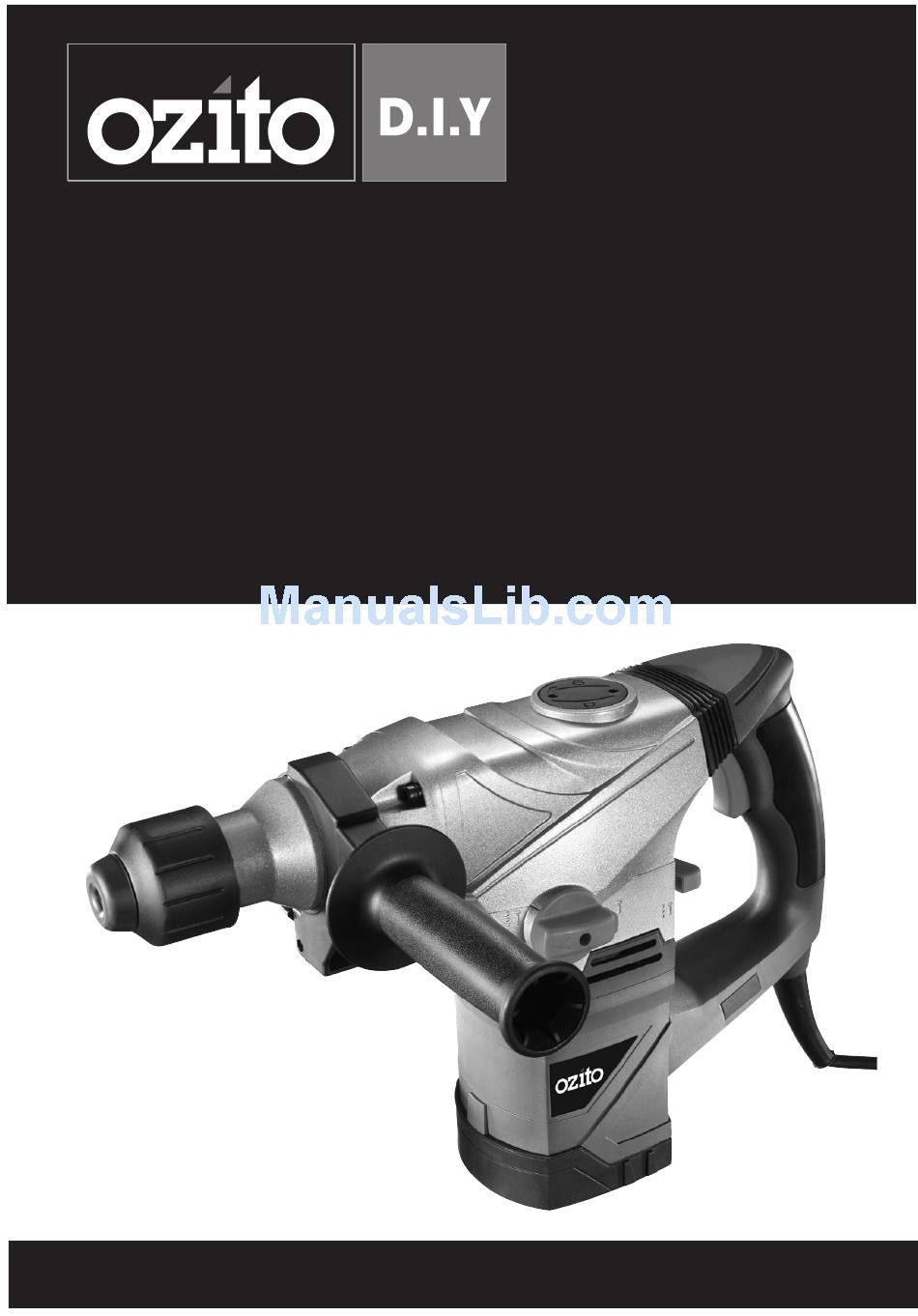

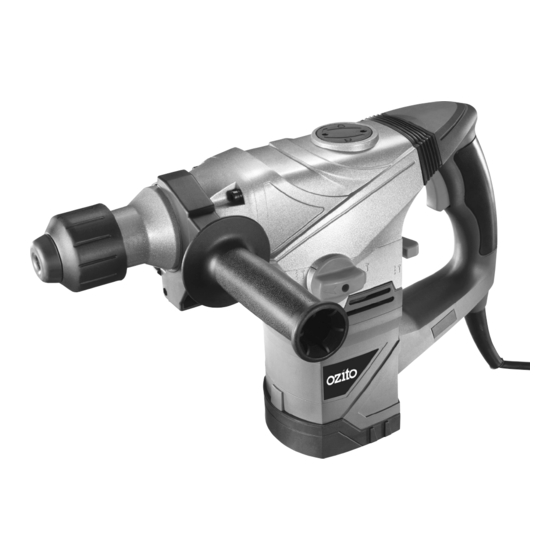

- Page 1 Rotary Hammer Drill Kit 1500W Operation Manual 1 Year Replacement Warranty OZRH1500WAK CAUTION: Read this operation manual before using this tool. 0609 www.ozito.com.au To view the full range visit:...
-
Page 2: Specifications
SPECIFICATIONS MODEL NO. OZRH1500WAK Motor: 1500 Watts Input: 230 - 240V ~ 50Hz No load speed: 750/min Impact rate: 3000bpm Impact energy: 5.0 joule Accessory fitment: SDS+ Grease: Normal ball bearing grease (available from your local hardware or auto store) - Page 3 SPECIFICATIONS - MODEL NO. OZRH1500WAK (cont.) 12. Accessory locking sleeve 1. SDS+ Accessory holder 13. Pointed chisel 250mm 2. Metal depth rod 14. Flat chisel 14*250mm 3. Depth rod locking knob 15. Drill bit 12*150mm 4. Magnesium gear case 16. Drill bit 10*150mm 5.
-
Page 4: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS………………………………………… Page 2 TABLE OF CONTENTS………………………………..… Page 4 INTRODUCTION…………………………………………. Page 5 GENERAL SAFETY INSTRUCTIONS…………………… Page 5 GENERAL SAFETY RULES………………………………. Page 6 OPERATION……………………………………………… Page 9 SIDE HANDLE……………………………………………. Page 9 DEPTH ROD……………………………………………… Page 9 SDS+ ACCESSORIES – FITTING & REMOVAL………… Page 9 CHUCK &... -
Page 5: Introduction
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. -
Page 6: General Safety Rules
GENERAL SAFETY RULES Warning! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term "power tool" in all of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 7 GENERAL SAFETY RULES (cont.) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
- Page 8 ADDITIONAL SAFETY INSTRUCTIONS FOR ROTARY HAMMER DRILLS This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 9: Operation
OPERATION BEFORE ATTACHING OR REMOVING ANY ACCESSORIES FROM THE TOOL, BE SURE TO DISCONNECT THE TOOL FROM THE POWER SUPPLY. Side handle The side handle (11) will provide additional control, support and guidance for the tool. The side handle (11) is adjustable to any position around the 360º handle collar mount. Loosen the side handle (11) grip by rotating it anti-clockwise to the handle collar mount. -
Page 10: Chuck & Sds+ Adaptor
OPERATION (cont.) Warning! Accessories may be hot after use. Avoid direct contact with skin, use gloves or a cloth to remove. Removing a SDS+ accessory To remove the SDS+ accessory, pull the accessory locking sleeve (12) back towards the body of the tool (away from the accessory holder (1) and pull the SDS+ accessory out and away from the tool. -
Page 11: Fitting And Using Dust Cover
OPERATION (cont.) Note: Always use the chuck key on all three holes on the chuck body to ensure each jaw is equally tightened. To remove the drill bit or accessory follow the below steps: Warning! Drill bits can be hot after use, always wear gloves to prevent burns or lacerations. -
Page 12: Maintenance
OPERATION (cont.) Chiseling Rotate the mode selector on the side of the drill to the hammer icon, and rotate the rear mode selector to the drill and hammer icon. This setting is recommended for use when desiring a hammer action without the accessory rotating which is ideal for “chiseling or chipping”... -
Page 13: Carbon Brushes
Always replace both carbon brushes at the same time. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool. -
Page 14: Spare Parts
Limited spare parts are available subject to availability. Please contact your local Bunnings Special Orders Desk to order the required spare parts. Most common spare parts listed below: Spare part Ozito part no. Carbon brushes (pair) SPOZRH1500WA-092 Carbon brushes holder (pair) -
Page 15: Contents
Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. CONTENTS 1 x Rotary Hammer Drill OZRH1500WAK 1 x Side handle 1 x 8*150mm SDS+ drill bit 1 x Metal depth rod... -
Page 16: Warranty
PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 1 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 12 months from the original date of purchase and is intended for DIY (Do it yourself) use only. WARNING The following actions will result in the warranty being void.
