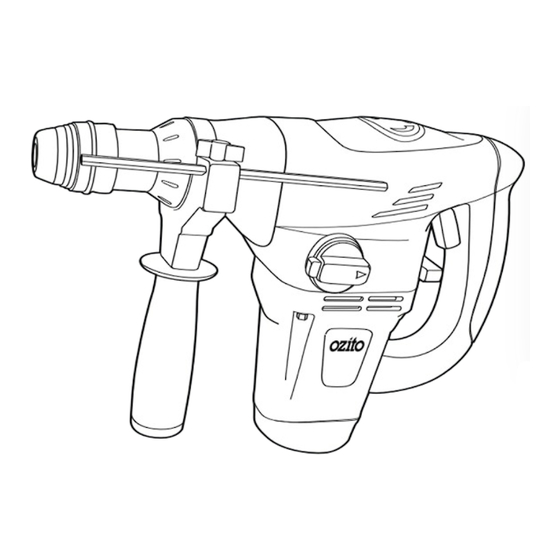

ROTARY HAMMER DRILL
1100w
MODEL NO. OZRH1100A
OPERATING INSTRUCTIONS
w w w. o z i t o . c o m . a u
To view our full range visit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OZRH1100A and is the answer not in the manual?

Questions and answers

Summary of Contents for Ozito OZRH1100A

  • Page 1 ROTARY HAMMER DRILL 1100w MODEL NO. OZRH1100A OPERATING INSTRUCTIONS w w w. o z i t o . c o m . a u To view our full range visit...
  • Page 2 SPECIFICATIONS - MODEL NO. OZRH1100A Motor: 1100w Input: 230V ~ 50Hz No load speed: 800 rpm Impacts: 3200 bpm Impact energy: 3.5 joules Tool weight: 5.50kg Drilling capacities: Masonry 36mm Steel 13mm Timber 40mm Features: Metal gear casing Soft grip...
  • Page 3: Safety Instructions

    The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
  • Page 4 GENERAL 1. Keep work areas clean. Cluttered areas and benches can cause accidents. 2. Consider work area environment. Do not expose your tool to high humidity or rain. Do not use your tool in damp or wet conditions. Keep the work area well lit. Do not use your tool where there is a risk of causing fire or explosion, e.g.
  • Page 5 22.Replacement of the supply cord. If the supply cord is damaged, it must be replaced by the manufacturer or an authorised Ozito Service Agent in order to avoid a hazard.
  • Page 6 SAFETY INSTRUCTIONS FOR ROTARY HAMMER DRILLS Before drilling into walls, ceilings etc, ensure there are no concealed power cables or pipes in the cavity. Always use the side handle, this gives you greater control if the accessory should become jammed. Keep the cord clear of the accessory being used, do not wrap the cord around your arm or wrist.
  • Page 7: Operation

    OPERATION BEFORE ATTACHING OR REMOVING ANY ACCESSORIES BE SURE TO DISCONNECT THE ROTARY HAMMER DRILL FROM THE POWER SUPPLY Side Handle The side handle will provide additional control, support and guidance for the tool. The handle is adjustable to any position around the 360º handle collar mount.
  • Page 8 OPERATION (cont.) Warning! Accessories may be hot after use. Avoid direct contact with skin, use gloves or a cloth to remove. Fitting and Using the Dust Cap The dust cap catches dust and debris generated while using the drill over head.
  • Page 9 OPERATION (cont.) Hammer Drilling Mode This setting is recommended for use when drilling holes in concrete and other masonry products. The hammer action will be in operation while the drill bit rotates simultaneously. To engage this mode rotate the mode selector on the top of the drill to the hammer and drill icon, and rotate the rear mode selector to the drill and hammer icon as shown below.
  • Page 10: Maintenance

    Brushes will wear out after many uses but before they do take the tool to an Authorised Ozito Service Agent for quick and low cost replacement. Always replace both brushes at the same time.
  • Page 11 CONTENTS 1 x Rotary Hammer Drill OZRH1100A 1 x SDS Plus point 1 x Dust cap 1 x Tub of bit grease 1 x Side handle 1 x Pinned spanner 1 x Depth rod 1 x Spare set of carbon brushes 1 x Chuck &...
  • Page 12: Warranty

    PURCHASED FROM:__________________________________________________ DATE PURCHASED: __________________________________________________ 3 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do it yourself) use only. WARNING The following actions will result in the warranty being void.
