Gateway Pro BT
iPod, USB, Bluetooth
User Manual
v.1.1
GWP-9208-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GWP-9208-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Dension GWP-9208-2

Summary of Contents for Dension GWP-9208-2

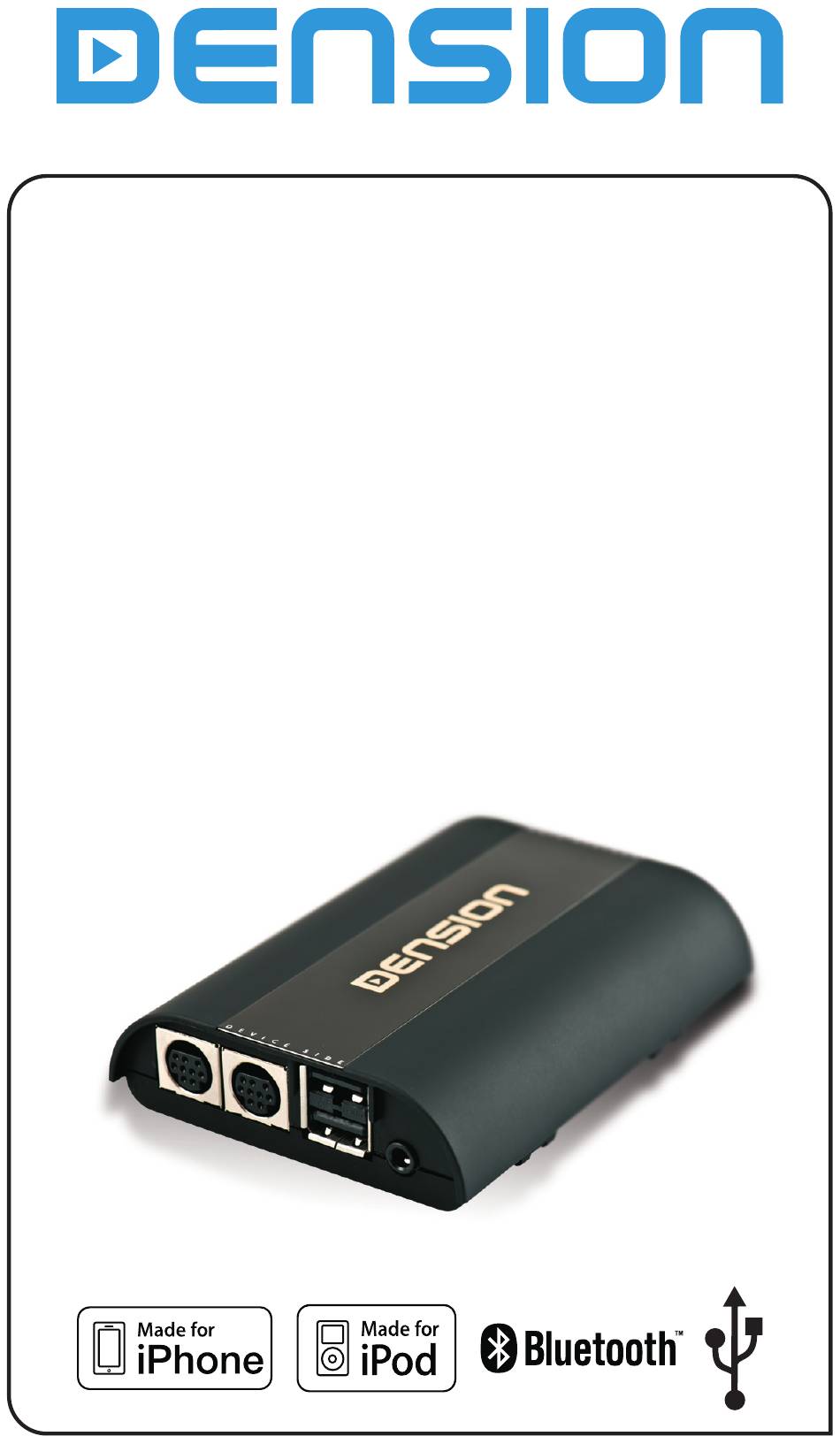

  • Page 1 Gateway Pro BT iPod, USB, Bluetooth User Manual v.1.1 GWP-9208-2...

  • Page 3: Table Of Contents

    Content PRODUCT INTRODUCTION AND FUNCTIONALITY ....PRODUCT COMPATIBILITY Audi Dual CAN - GWP1AC1/AC2 ......... BMW - GWP1BM4 ..........OPEL CAN - GWP1OC2 ..........Peugeot CAN - GWP1PC1 ......... Volkswagen BAP - GWP1V21 ........Volkswagen CAN - GWP1VC1 ........DISCLAIMER AND WARRANTY ........

  • Page 5: Product Introduction And Functionality

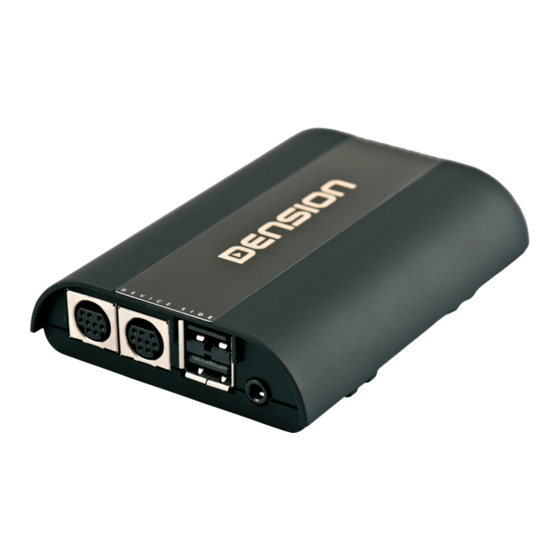

    PRODUCT INTRODUCTION AND FUNCTIONALITY PRODUCT INTRODUCTION The Dension Gateway Pro BT lets you connect your iPod or USB storage (stick, hard drive or mass storage capable mp3 player) to your original car radio, providing music playback, menu based control and charging.
  • Page 6 Supported iPod / iPhone devices via “Lightning to USB cable” (not included in the package) iPod nano 7th generation iPod touch 5th generation iPhone 5, 5c and 5s Aux: 3.5mm stereo aux input (optional). Requires additional AUX cable (CABL-AUX) or Connector Port (EXT1CP2) BLUETOOTH FUNCTIONALITY Pairing a BT Mobile Phone You can pair a Bluetooth capable mobile phone for handsfree calls.
  • Page 7 CONNECTOR PORT The Connector port (Dension Pr.Nr: EXT1CP2) is an accessory for Gateway Pro BT. This device gives the following specific functions: • Aux-input • USB extension • Bypass selector • Status LED • Reset switch LANGUAGE SETTINGS You can set the Language in the settings menu of the Gateway Pro BT.

  • Page 8: Product Compatibility

    PRODUCT COMPATIBILITY Audi Dual CAN - GWP1AC1/AC2 1. GETTING STARTED Switch on your car radio and select CD-Changer mode by pressing the ‘CD’ button. Connect your iPod or USB storage to the Gateway. It will start playing the first song on the device.
  • Page 9 2. OPERATION The menu can be selected and controlled from steering wheel control. You can enter the Gateway Pro BT’s main menu by “Menu” pressing shortly multifunction button. Use same button for browsing, roll down (∆) or up ( ) for accessing different menu options.
  • Page 10 Browsing and Selecting Music (iPod or USB) You can select the music source for playback in the Source Menu. This can be: • Files, Artists, Albums, Titles, Bookmarks (for USB only): Provides browsing and selecting the music files on your USB device • Music (for iPod...
  • Page 11 Paired phone Last four paired phone name (ID) will be listed here. You can force pairing from this menu too if you click select the phone from the list BT Audio You can turn the BT Audio option ON if you want to play music from mobile phone via A2DP.

  • Page 12: Bmw - Gwp1Bm4

    BMW - GWP1BM4 1. GETTING STARTED Switch on your car radio and select CDC mode by pressing the ‘MODE’ function button on the radio. Connect your iPod or USB storage to the Gateway. It will start playing the first song on the device.
  • Page 13 In order to select a menu item press and hold the next track button (like for the FFW function) on the radio or press and hold the previous track button (FRW function) to return to the previous level. Please note: Depending on your Head Unit type, you may need to press the ‘m’ button in order to get the Fast Forward / Rewind function.
  • Page 14 When an artist is selected the PLAY menu item plays all the songs from the given artist, the ALL menu lists all the songs from the given artists. The albums from the artist are listed as separate items afterwards. When an album is selected, all the songs from the given album are listed as separate items afterwards.
  • Page 15 3. USING THE PHONE On Business Radio press the ‘R/T’ and then the ‘Speech’ button on the steering wheel in order to reach the phone Menu. The phone Menu can be selected on Radios with MID display by pressing the “TEL” button on the radio, then pressing the ‘ Menu’...
  • Page 16 You can reject an incoming call by a long press of the “Phone’ button or the “Speech” button on the steering wheel in case of a Business System. To initiate a call, please select the phone number or contact from the Phonebook or call logs in the Phone menu and press the ‘Phone’...

  • Page 17: Opel Can - Gwp1Oc2

    OPEL CAN - GWP1OC2 1. GETTING STARTED Switch on your car radio and select AUX mode by pressing the ‘CD/AUX’ button. Connect your iPod or USB storage to the Gateway. It will start playing the first song on the device. If the Gateway has been in use earlier, music will play from your iPod or USB from the point at which they last played.
  • Page 18 • BT Audio: from a paired A2DP streaming capable phone. The playback is controlled from the phone or with the Next and Back buttons of your car (phone dependent). Please note: This feature is disabled by default. It can be enabled from the Settings menu • iPod UI: the playback is controlled from the iPod • iPod GW: the playback is controlled from the Gateway (the iPod controls get disabled).
  • Page 19 Phonebook In the phonebook menu you can switch off the automatic download of the phone book, which is required to work with certain phone models. BT Audio You can turn the BT Audio option ON if you want to play music from mobile phone via A2DP.

  • Page 20: Peugeot Can - Gwp1Pc1

    Peugeot CAN - GWP1PC1 1. GETTING STARTED Switch on your car radio and select CD-Changer mode by pressing the ‘SOURCE’ button. Connect your iPod or USB storage to the Gateway. It will start playing the first song on the device. If the Gateway has been in use earlier, music will play from your iPod or USB from the point at which they last played.
  • Page 21 Default screen: track details appear on your screen (Track 1, 2…etc. and elapsed time). Press Disc 1 to select this view option. Full ID3 tags can be seen on the screen if you press disc 5 on the Radio (full ID3 tags include: Title, Author, Album name if song info properly filled) Selecting the Music Source...
  • Page 22 The following menu items available in the main menu serve as specific functions for music playback: • Play All: plays all the music from the selected source. The playback starts from the first song on the device • Album play: Plays the full album of the song being played, typically used when in random play mode Settings menu Hotkey function...
  • Page 23 3. USING THE PHONE MENU First go to the default screen (for more details read the BLUETOOTH FUNCTIONALITY sec- tion on Page 1.), then find the phone func- tion on the display by pressing the ‘MODE’ button, then press the ‘OK’ button on the radio twice to get into the phone menu. Toggling between different options is possible with the up ( ) and down ( ) navigation buttons.

  • Page 24: Volkswagen Bap - Gwp1V21

    Volkswagen BAP - GWP1V21 1. GETTING STARTED Switch on your car radio and select ‘Media In’ by pressing the Media button. Connect your iPod or USB storage to the Gateway. It will start playing the first song on the device. In case the Gateway has been in use earlier, music will play from your iPod or USB from where it stopped previously.
  • Page 25 Selecting the Music Source You can select the music source for playback in the Source Menu. This can be: • GW AUX*: the analogue Aux input of the Gateway. No control function is available. AUX can be used if Connector Port (EXT1CP2) or AUX cable (CABL-AUX) is connected • BT Audio: from a paired A2DP streaming capable phone.
  • Page 26 The following menu items provide specific functions for music playback: • Play All: plays all the music from the selected source. The playback starts from the actual playback position and continues sequentially. • Album play: Plays the full album of the song being played, typically used when in random play mode.
  • Page 27 Please note that for consistency reasons the Gateway Pro BT does not store the phone numbers therefore your phone is synchronized again all the time when it connects to the gateway. Synchronization is possible up to 1000 phone numbers (entries with multiple phone numbers synchronize as multiple entries). Receiving and Making Phone Calls When receiving an incoming call, the caller number (if provided) or the corresponding contact name in your phonebook are displayed.

  • Page 28: Volkswagen Can - Gwp1Vc1

    Volkswagen CAN - GWP1VC1 1. GETTING STARTED Switch on your car radio and select CD charger by pressing the CD button (you may need to press the CD button twice for this, depending on the status of the radio). Connect your iPod or USB storage to the Gateway. It will start playing the first song on the device.
  • Page 29 Selecting the Music Source You can select the music source for playback in the Source Menu. This can be: • GW AUX*: the analogue Aux input of the Gateway. No control function is available. AUX can be used if Connector Port (EXT1CP2) or AUX cable (CABL-AUX) is connected • BT Audio: from a paired A2DP streaming capable phone.
  • Page 30 Settings menu Hotkey function You can assign the CD selector buttons (between 2-6) to the desired folder e.g. album, song or menu position. • Select the Set CD option in the Hotkey menu (* icon will appear beside the ‘Set’) • Navigate to the desired menu or music item • Press the hotkey you want to assign from CD buttons 2-6 on the car radio.
  • Page 31 Please note that for consistency reasons the Gateway Pro BT does not store the phone numbers therefore your phone is synchronized again all the time when it connects to the gateway. Synchronization is possible up to 1000 phone numbers (entries with multiple phone numbers synchronize as multiple entries).

  • Page 32: Disclaimer And Warranty

    The use of handheld devices while driving may be subject to government legislation. Please ensure that your use of the Dension device complies with applicable traffic laws. Dension does not assume liability for any events resulting from the illegal or irresponsible use of handheld devices while driving.
