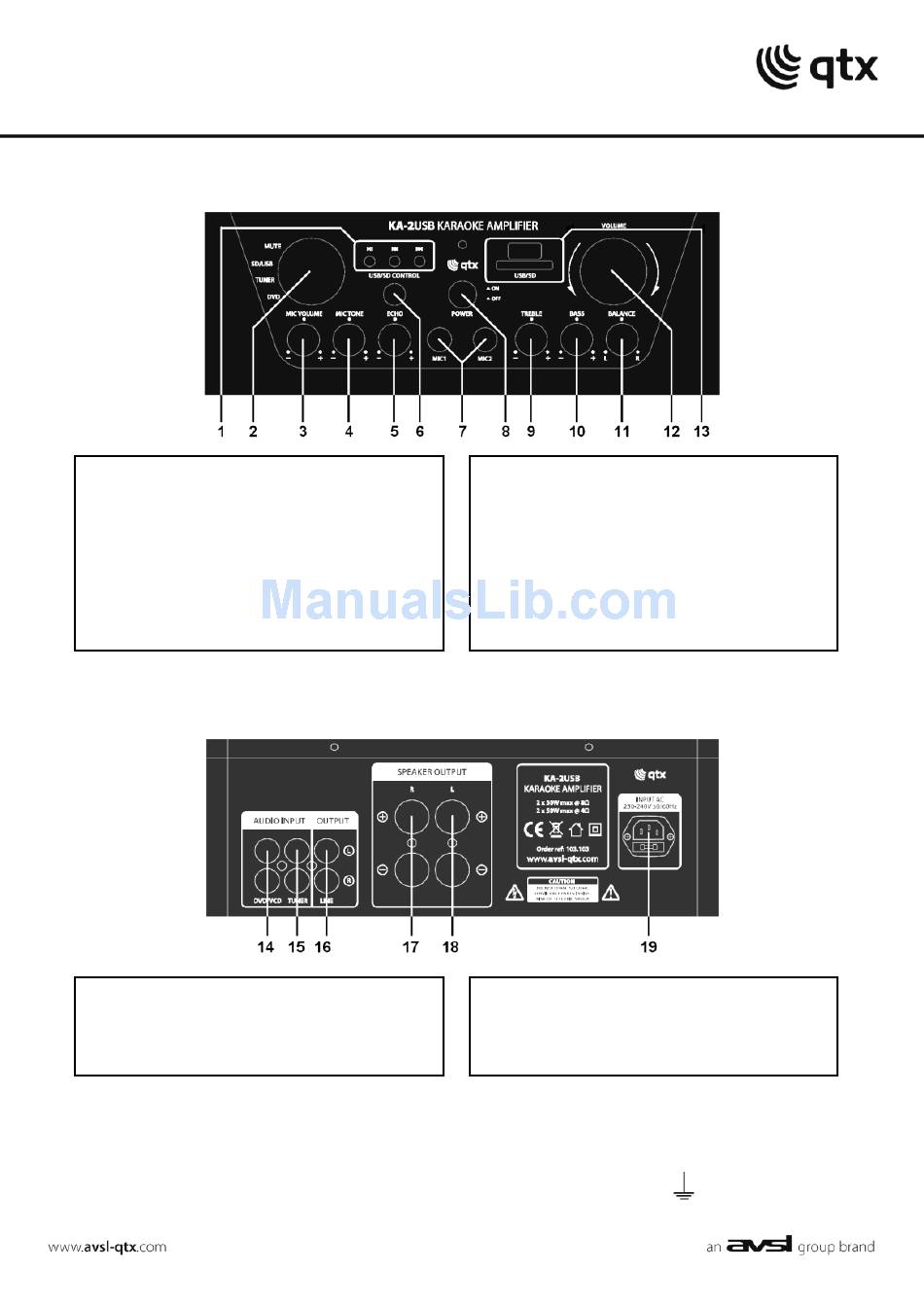

FRONT PANEL

1.
USB/SD player transport controls
2. Input selector rotary switch
3. Microphones – volume control
4. Microphones – tone control
5. Microphones – echo control
6. I.R. remote receiver
7. Microphone inputs (6.3mm jack)

REAR PANEL

14. DVD/CD line input (RCA L+R)
15. Tuner line input (RCA L+R)
16. Line output (RCA L+R)
CONNECT WITH POWER SUPPLY – EARTH WIRE MUST BE CONNECTED:
Use the supplied IEC lead to connect to the main power supply as follows:
LIVE (L) - brown wire NEUTRAL (N) - blue wire
8. Power on/off button
9. Treble EQ control
10. Bass EQ control
11. Balance control for Mic1 / Mic2
12. Master volume control
13. USB & SD ports
17. Right speaker output
18. Left speaker output
19. IEC mains inlet + fuse
EARTH ( ) - yellow/green wire
