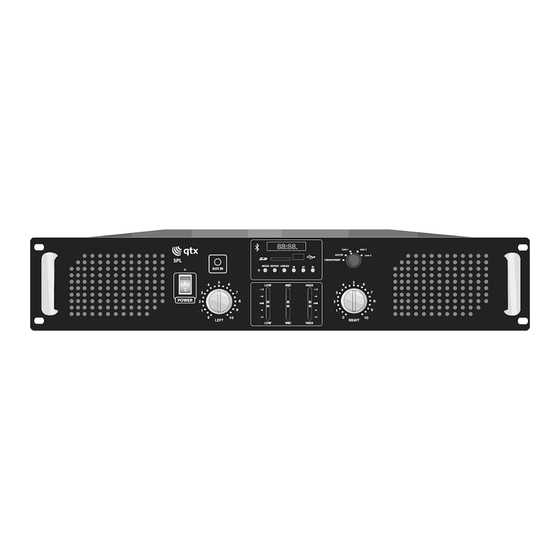

- Page 1 Stereo Amplifiers Order ref: SPL500M (178.821UK) SPL700M (178.822UK) SPL1000M (178.823UK) SPL1200M (178.824UK) SPL1500M (178.825UK) User Manual VERSION 1.0...
-
Page 2: Safety Symbol And Message Conventions
Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty Introduction Thank you for choosing an SPL series amplifier for your stereo sound system. This product is designed to power stereo speakers with a range of switchable inputs including a built-in digital audio playback module. -
Page 3: Package Contents
Package Contents Please check the contents to ensure that the product has been received in good condition. • SPL amplifier • IR remote control for media player • IEC mains lead(s) If you find any accessory is missing or damaged, please contact your retailer at once. Front Panel Power on/off rocker switch and LED 3-band EQ section... -
Page 4: Operation
Connection Each SPL amplifier has 4mm binding post outputs for connecting to 2 speakers (11, 12) The red binding post must be connected to the “+” terminal of the speaker. The white binding post must be connected to the “-” terminal of the speaker. If the speakers are 4Ω... - Page 5 Media player Each SPL amplifier has an internal media player section for digital audio playback from USB/SD/MMC media, FM tuner or via Bluetooth with its own display and control section (4) Turn the source selector (6) to USB/SD/FM/BT to enable playback through the speakers. Press the MODE button to select the function you require - USB, SD, FM radio or Bluetooth.
-
Page 6: Bluetooth Connection
If there is no output, check if there is more than one device within range called “qtx-SPL” In the eventuality that more than one device is called “qtx-SPL”, try each device in turn until the correct one is found. Check also that the volume level is turned up on the sending device.
