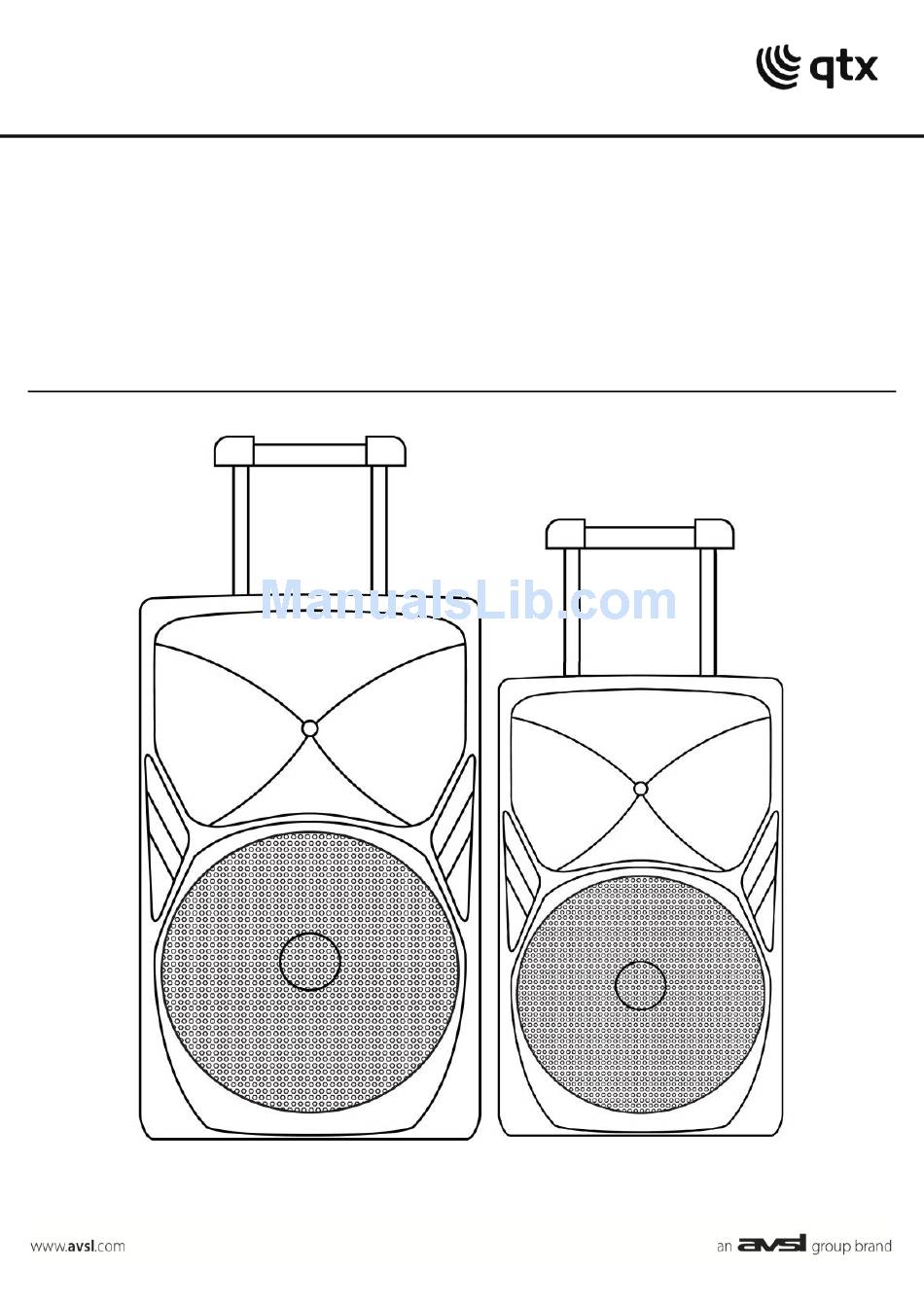

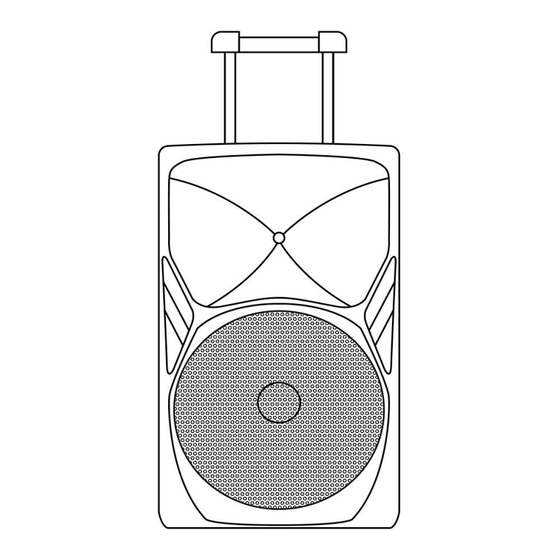

- Page 1 QUEST Portable PA Units Order ref: QUEST-12 (178.886UK) QUEST-15 (178.888UK) User Manual VERSION 1.0...
-
Page 2: Package Contents
Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty Introduction Thank you for choosing a Quest portable PA unit. This versatile portable PA unit is packed with features in a compact, manageable enclosure and is suitable for a wide array of applications ranging from public address for presentations to portable music system. -
Page 3: Rear Panel
Rear panel Media player display Media player controls Instrument input volume Echo effect level Mic 1+2 inputs volume Instrument input 6.3mm jack Microphone 1 input 6.3mm jack Microphone 2 input 6.3mm jack VHF Mic A volume VHF Mic B volume Battery charge status LEDs 12Vdc power input VHF antennas... -
Page 4: External Inputs
When powered up, BASS and TREBLE controls (20, 19) should remain pointing vertically (i.e. 12-o-clock position). Turn up the MASTER VOLUME control (18) part way and switch TALKOVER (24) off. Your QUEST unit should now be ready to operate. VHF Wireless Microphones Extend the 2 VHF antennas (13) at the rear of the unit. -
Page 5: Internal Media Player
Internal media player Each Quest portable PA unit has an internal media player for digital audio playback from USB/SD/MMC media, FM tuner or via Bluetooth. Press ‘Mode’ (9) to select the function you require – USB/SD, FM radio (89-107) or Bluetooth. ... -
Page 6: Bluetooth Connection
FM Tuner In FM tuner mode, the station frequency (in MHz) will be displayed. For initial setup, press PLAY to begin the auto-tuning process. The tuner will seek through all frequencies for strong signal reception (i.e. radio stations) ... -
Page 7: Specifications
Specifications Model QUEST-12 QUEST-15 Power supply 230Vac, 50Hz (IEC) Fuse T3A, 250V Output power 100W 100W Frequency response 50Hz - 16kHz 40Hz - 16kHz SPL @ 1W/1m 96dB 98dB Main driver 300mmØ (12“) 380mmØ (15“) Impedance: main driver 4 Ohms HF driver type 25mm (1”) Titanium compression driver... -
Page 8: Troubleshooting
Troubleshooting Check POWER switch is on Check battery is not drained fully No output and no LEDs Check mains lead is connected Check mains or D.C. fuse hasn’t blown Check batteries in wireless transmitters Check wireless transmitters are switched on Power LED lit but no VHF Check that handheld transmitters are not switched to MUTE output...
