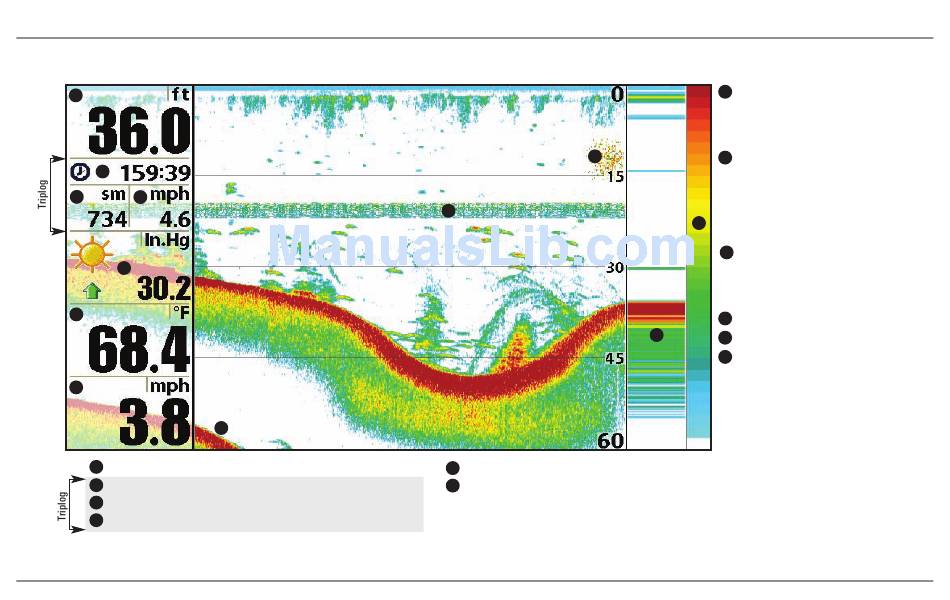

What's On the Sonar Display

The 900 Series™ can display a variety of useful information about the area under and adjacent to your boat, including the following items:
1
2
3 4
5
6
7
1
Depth - water depth; can be set to alarm when the water becomes too shallow.
2 Timer - Elapsed time with Speed accessory or GPS Receiver.
3 Distance - Distance traveled with Speed accessory or GPS Receiver.
4 Average Speed - Average speed reading with Speed accessory or GPS Receiver.
12
10
8
5 Barometric Pressure - Requires optional-purchase WeatherSense®
6 Temperature - water surface temperature
26
Speed - if a Speed accessory or GPS Receiver
7
is attached, the 900 Series™ can display the
speed of the boat, and can keep a triplog of
nautical or statute miles traveled.
8 Thermoclines - layers of water with different
temperatures that appear at different depths
and different times of the year. A thermocline
typically appears as a continuous band of
many colors moving across the display at the
9 same depth.
Sonar Color Bar - color spectrum indicating
9
low to high sonar intensity returns, where
red indicates high intensity and white
indicates low intensity.
10 Bait Ball
11
11 RTS® (Real Time Sonar) Window
12 Second Sonar Return - when the sonar
signal bounces between the bottom and the
surface of the water and back again. Use
the appearance of the second return to
determine bottom hardness. Hard bottoms
will show a strong second return, while soft
bottoms will show a very weak one or none
at all.
