Select Readouts sets individual digital readouts on the Sonar View. This
Advanced feature allows you to select what data will be displayed in each of 5
fixed-position data windows arranged around the left and bottom edges of the
Sonar View screen, or whether a particular window will be turned off,
displaying nothing in that area; you can access this menu choice only when in
Advanced User Mode (see Setup Menu Tab: User Mode).

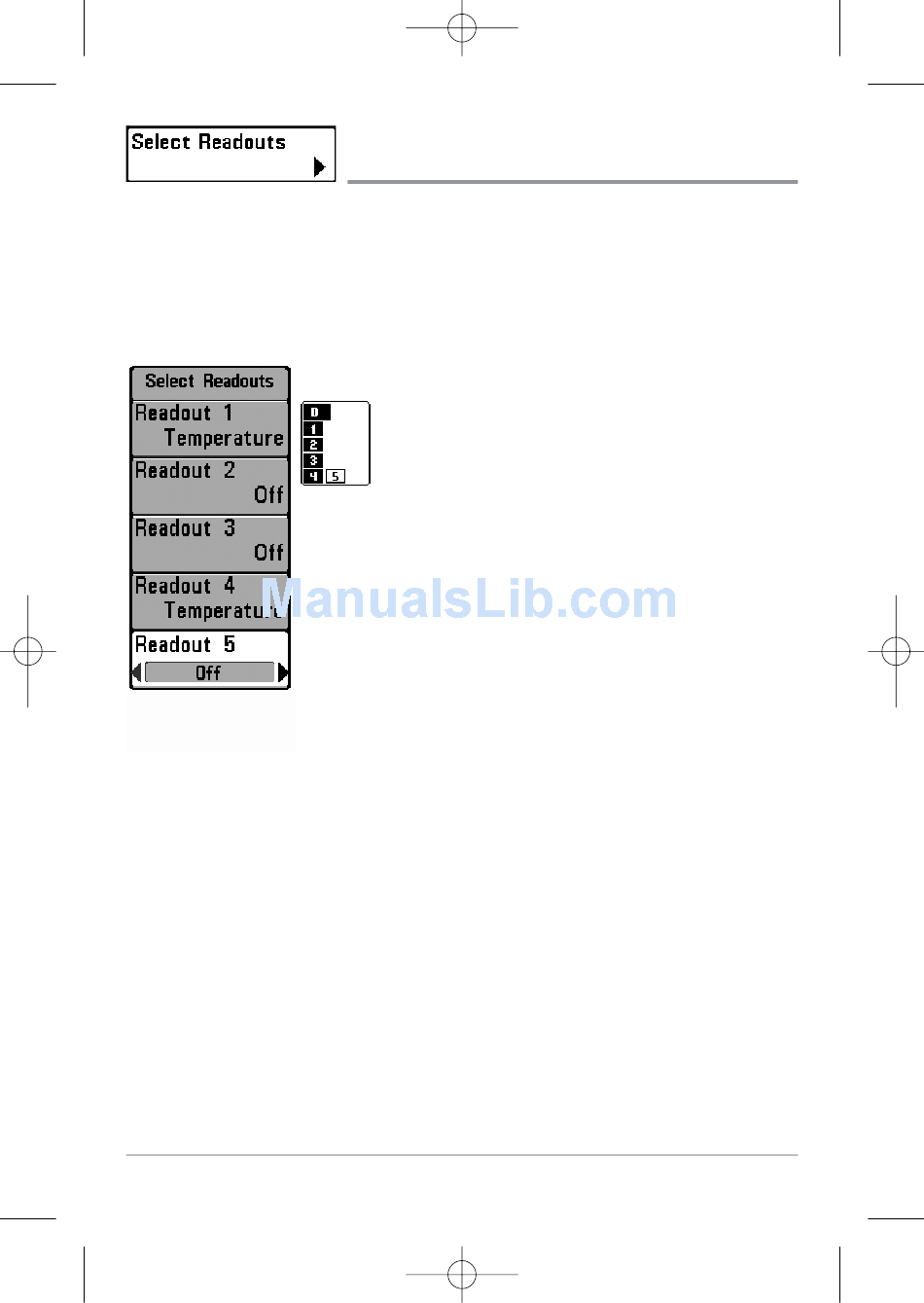

Select Readouts
Select Readouts
(Advanced, Sonar view only)
Data windows can display readouts from
supported accessories such as Temp/Speed.
Each data window can either be empty or
contain one of the following:
• Speed (will be displayed if a Temp/Speed
Accessory
paddlewheel has moved at least once, or
if a GPS Receiver is connected)
• Temperature (will display temperature
from the temperature probe that is built in
to the transducer)
• Triplog (will be displayed if a Temp/Speed
Accessory
paddlewheel has moved at least once, or
if a GPS Receiver is connected)
• Voltage
• Aux Temp (will display temperature from
an optional-purchase temperature probe
or Temp/Speed accessory)
• Water Speed (will only be displayed if a
Temp/Speed Accessory is attached and the
paddlewheel has moved at least once).
Water Speed is not available with a GPS
receiver.
63
