WideSide® View
(with optional-purchase WideSide® transducer)
WideSide® View is only available if you have connected a WideSide® transducer
accessory and when Transducer Select is set to WideSide® (see Sonar Menu Tab:
Transducer Select). The WideSide® transducer requires a separate purchase. The
WideSide® View displays information from the 455 kHz WideSide® transducer.
Three views are available: Left, Right and Both. The default view is Both.
Information from both the left and right beams are displayed simultaneously. The
depth of the water beneath the boat is always displayed. A bottom contour may
be present while bank fishing or fishing river channels. When fishing in the open
water, a bottom contour will not be present, and only sonar returns from either
debris or fish will be displayed.

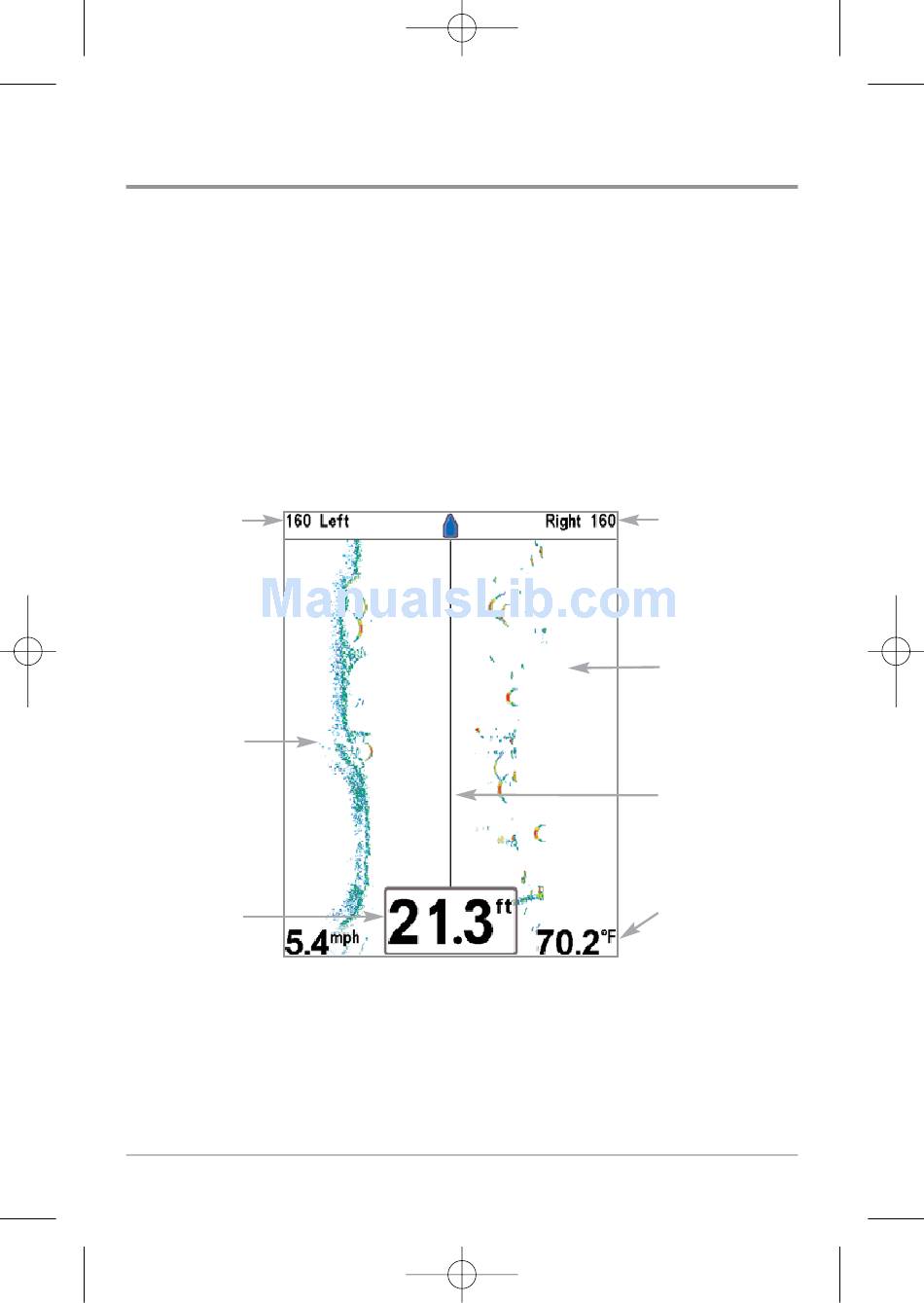

Left Side
View
Bank
Contour
Depth
10/2/2006
WideSide View
22
1:41 AM
Page 27
Right Side View
Open Water
(no bottom
contour visible
on-screen)
Water
Surface Line
Temperature
