OPERATING MANUAL
BEDIENUNGSANLEITUNG
MODE D'EMPLOI
MANUAL DE FUNCIONAMIENTO
MANUALE DI ISTRUZIONI
ΕΓ ΕΙΡΙ∆Ι
ΛΕΙΤ ΥΡΓΙΑΣ
O
M
PERATING
ANUAL
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
VRF SYSTEM
MANUAL DE INSTRUÇÕES

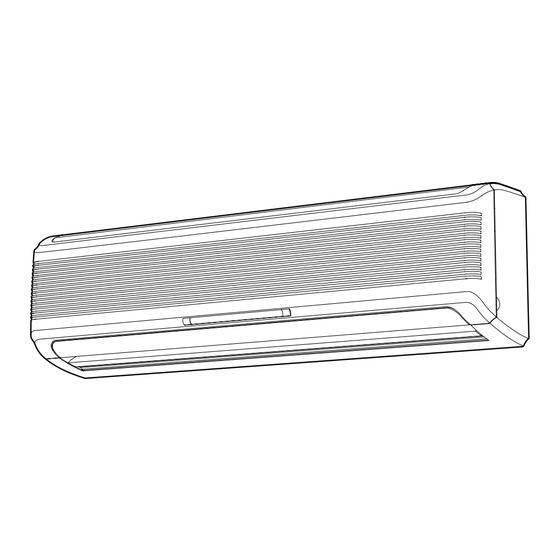

INDOOR UNIT
Wall Mounted Type
AS A18L
AS A24L
AS A30L
KEEP THIS MANUAL
FOR FUTURE REFERENCE
FUJITSU GENERAL LIMITED
P/N9371056036-02
Advertisement
Table of Contents
Related Manuals for AirStage AS A18L
Summary of Contents for AirStage AS A18L
- Page 1 MANUAL DE FUNCIONAMIENTO MANUALE DI ISTRUZIONI ΕΓ ΕΙΡΙ∆Ι ΛΕΙΤ ΥΡΓΙΑΣ PERATING ANUAL РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ VRF SYSTEM MANUAL DE INSTRUÇÕES INDOOR UNIT Wall Mounted Type AS A18L AS A24L AS A30L KEEP THIS MANUAL FOR FUTURE REFERENCE FUJITSU GENERAL LIMITED P/N9371056036-02...
-
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ........1 OPERATING TIPS ........... 4 NAME OF PARTS ........... 2 CLEANING AND CARE .......... 5 MANUAL AUTO OPERATION ....... 3 TROUBLESHOOTING ..........7 ADJUSTING THE DIRECTION OF SPECIFICATIONS ........... 8 AIR CIRCULATION ..........3 SAFETY PRECAUTIONS G Before using the appliance, read these “PRECAUTIONS”... -
Page 3: Name Of Parts
NAME OF PARTS 1 Operating Control Panel 8 Intake Grille 2 MANUAL AUTO button 9 UP/DOWN Air Direction Flaps 0 Moving Diffuser This is used to operate it while remote controller is not available. A RIGHT/LEFT Air Direction Louvers (behind UP/DOWN Air Direction Flaps) 3 Indicator Lamps B Drain Hose 4 FILTER Indicator Lamp (red) -
Page 4: Manual Auto Operation
MANUAL AUTO OPERATION Use the MANUAL AUTO operation in the event the remote control unit is lost or otherwise unavailable. Do not press the MANUAL AUTO button with wet hands or pointed objects, otherwise an electric CAUTION! shock or malfunction may occur. Starting Operation Press the MANUAL AUTO button on the operating control panel. -
Page 5: Operating Tips
OPERATING TIPS Operation and Performance About priority state and standby state G Multiple indoor units can be connected within the same system. Depending on the system, choice of operating mode are limited. Cooling priority state When the other indoor units within the same system operate in cooling or dry mode, heating can not be selected at the same time. -
Page 6: Cleaning And Care
CLEANING AND CARE G Before cleaning the unit, be sure to stop the unit and disconnect the power supply. CAUTION! G Do not stand on an unstable platform when cleaning. G When removing and replacing the air filters, be sure not to touch the heat exchanger, as per- sonal injury may result. - Page 7 Cleaning the body Wash the body with warm water, and then dry with a clean and soft cloth. When not using for an extended period Leave the breaker on for at least 12 hours before starting operation when it is to be used again. En-6...
-
Page 8: Troubleshooting
TROUBLESHOOTING The following conditions are not breakdowns or operation failures. Symptom Problem See page G If the unit is stopped and then immediately started again, the compressor will not Doesn’t operate immedia- — tely: operate for about 3 minutes, in order to prevent fuse blowouts. G Whenever the electrical breaker is turned off then on again, the protection circuit —... -
Page 9: Specifications
G The OPERATION indicator lamp (green) is flashing very fast. G The wired remote controller or simple remote controller indicate Er (when connected). G It has burning smell. SPECIFICATIONS MODEL AS A18L AS A24L AS A30L POWER SOURCE 230 V~50 Hz...
