Summary of Contents for Velleman CAMSET2

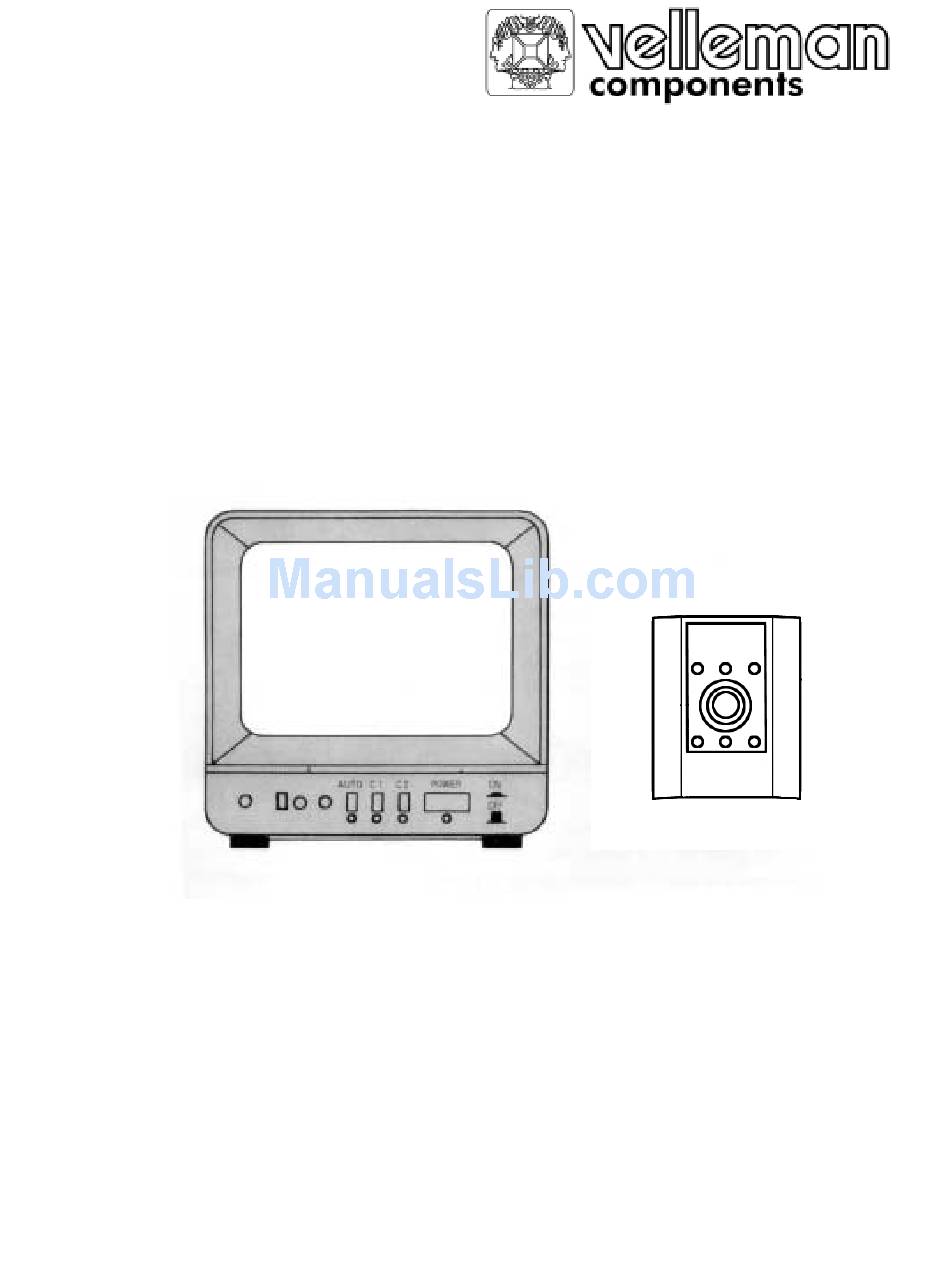

- Page 1 CAMSET2 AUDIO & VIDEO SURVEILLANCE SYSTEM 5"B/W MONITOR & 1/3" CCD CAMERA OWNER'S MANUAL GEBRUIKERSHANDLEIDING MANUEL DE L'UTILISATEUR...
- Page 2 CAMSET2 AUDIO & VIDEO SURVEILLANCE SYSTEM 5"B/W MONITOR & 1/3" CCD CAMERA OWNER'S MANUAL GEBRUIKERSHANDLEIDING MANUEL DE L'UTILISATEUR...
- Page 3 VCR can be added. Please read this instruction manual thoroughly for more details on appropriate use. APPLICATIONS _________________________________________________________________ - Observation purposes : shop office, garage, swimming pool, etc. - Nursery purposes : baby care, nursery, etc. * Your monitor can be connected to your VCR for recording. CAMSET2...
-
Page 4: Front View
2. SPEAKER 3. 6-PIN MINI DIN JACK 4. MICROPHONE 5. CCD CAMERA LENS, 3.6mm, F2.0 Options : CAM3 (camera without IR LEDs) CAMSET/SPC1 (extension cable, 6-pin mini-DIN connectors, male to female) CAMSET/SPC2 (extension cable, 6-pin mini-DIN connectors, male to male) CAMSET2... -
Page 5: Operation
8. To record the audio and video signals from the camera : connect the audio/video output jacks at the back of the monitor to the VCR's audio/video input jack by using the standard audio/video cable with RCA plugs. CAMSET2... -
Page 6: Specifications
Resolution 380 TV lines Video output 1V p-p 75Ω Sensitivity Min. 1lux - min. 0.1lux with IR LEDs ON Working temperature -10 to 40°C Lens 3.6mm, F2.0 Weight 120g Dimensions 51 (W) x 69 (H) x 49 (D) mm CAMSET2...
