Girard Products GSWH-1 Installation Manual

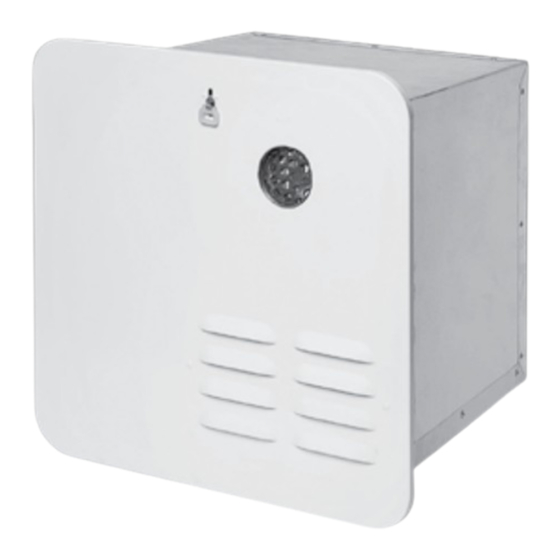

Tankless water heater

Hide thumbs Also See for GSWH-1:

Download this manual See also: Service Manual, Owner's Manual

1361 Calle Avanzado, San Clemente, CA 92673, Phone 949.259-4000 Fax 949.276-5500 www.greenrvproducts.com

TANKLESS WATER HEATER Model GSWH-1

INSTALLATION MANUAL ADDENDUM for after Market Installations

REPLACEMENT OF AN ATWOOD 6 GA. UNIT

DOOR/FLANGE ASSEMBLY - Part #1GWHDA6

Vertical brace

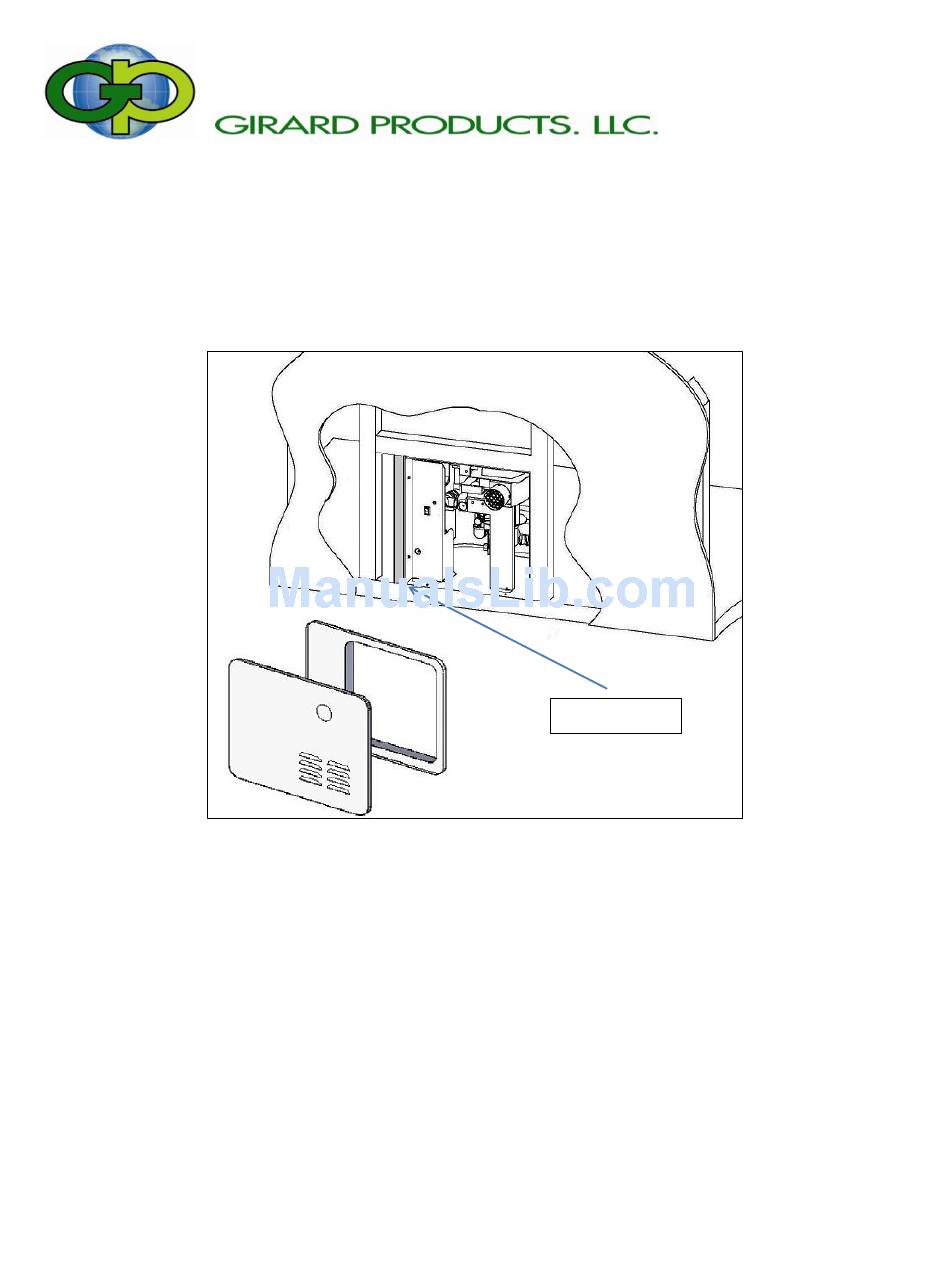

Fig. 1

The existing cut out for a 6 gal Atwood water heater measures 16 1/4" (W) by 12 5/8" (H).

The cut out needed for your GSWH-1 is only 12 ¾" by 12 ¾" and its flange MUST be supported on all

sides by a wooden frame so that it may be mounted rigidly with #8 ¾" flat head screws.

The flange will fit vertically into the existing opening, but a horizontal gap of 3 ½" will be left between

the new flange and the side of the opening.

A properly cut piece of 2" by 2" must be added as a vertical brace located at 12 ¾" from the right edge

of the cut out. (See Fig. 1)

Please refer to the Owner's Manual for information on how to complete the installation.

Page 1 The existing cut out for a 6 gal Atwood water heater measures 16 1/4” (W) by 12 5/8” (H). The cut out needed for your GSWH-1 is only 12 ¾” by 12 ¾” and its flange MUST be supported on all sides by a wooden frame so that it may be mounted rigidly with #8 ¾”...
Page 2 Suburban unit measures 16 ¼” by 16 ¼ “. The cut out needed for your GSWH-1 is only 12 ¾” by 12 ¾” and its flange MUST be supported on all sides by a wooden frame so that it may be mounted rigidly with #8 ¾” flat head screws.
