Focal IC 690 User Manual

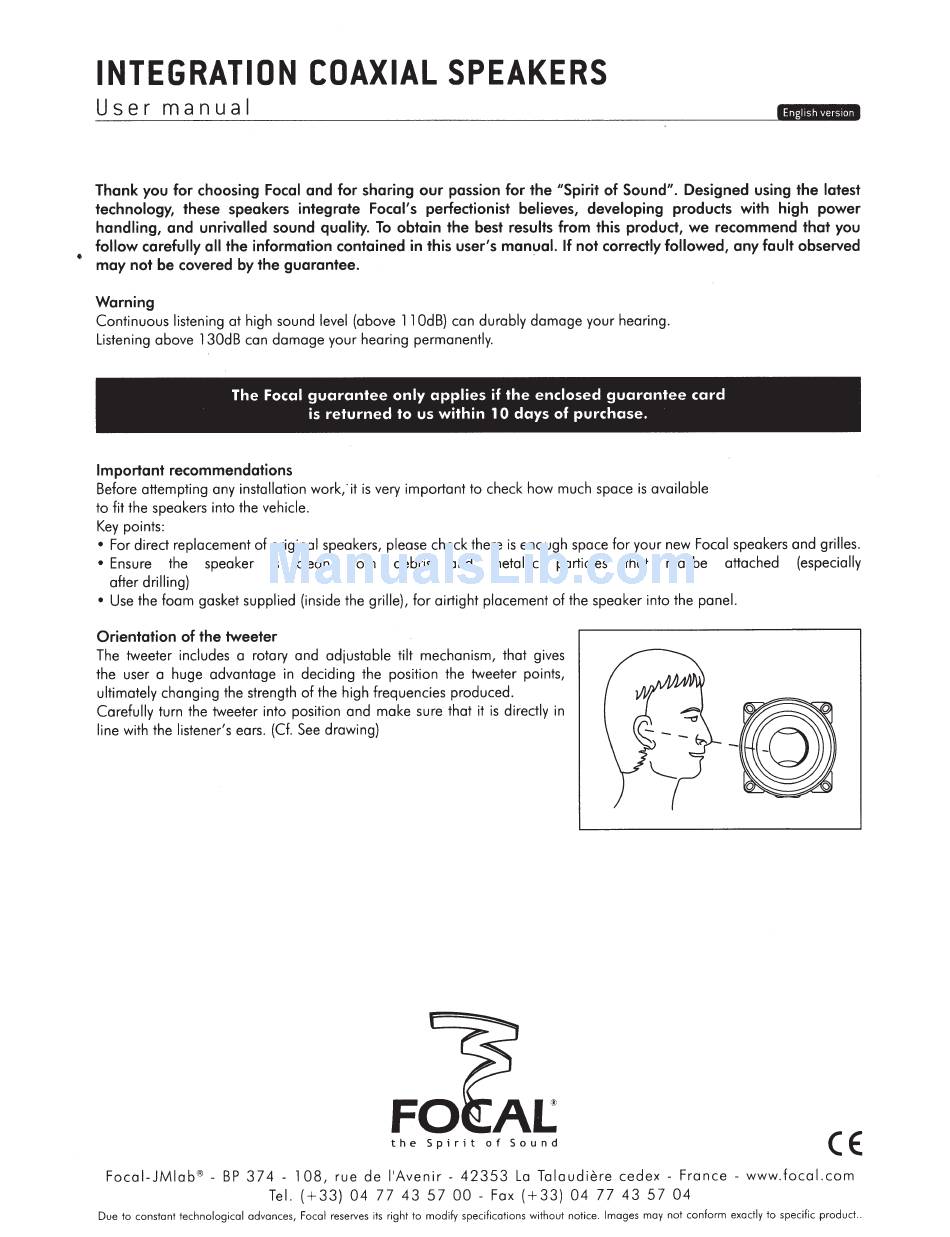

INTEGRATION COAXIAL SPEAKERS
User manual
Thank you for choosing Focal and for sharing our passion for the "Spirit of Sound". Designed using the latest
technology, these speakers integrate Focal's perfectionist believes, developing products with high power
handling, and unrivalled sound quality. To obtain the best results from this product, we recommend that you
follow carefully all the information contained in this user's manual. If not correctly followed, any fault observed
• may not be covered by the guarantee. -
Warning
Continuous listening at high sound level (above 11 OdB) can durably damage your hearing.
Listening above 130dB can damage your hearing permanently.
The Focal guarantee only applies if the enclosed guarantee card
is returned to us within 1 0 days of purchase.
Important recommendations
Before attempting any installation work,.it is very important to check how much space is available
to fit the speakers into the vehicle.
Key points:
• For direct replacement of original speakers, please check there is enough space for your new Focal speakers and grilles.
• Ensure the speaker is clean from debris and metallic particles that maybe attached (especially
after drilling}
• Use the foam gasket supplied (inside the grille}, for airtight placement of the speaker into the panel.
Orientation of the tweeter
The tweeter includes a rotary and adjustable tilt mechanism, that gives
the user a huge advantage in deciding the position the tweeter points,
ultimately changing the strength of the high frequencies produced.
Carefully turn the tweeter into position and make sure that it is directly in
line with the listener's ears. (Cf. See drawing)
the Spirit of Sound
CE
Focai-JMiab®- BP 374 - 108, rue de
1
1
Avenir- 42353 La Talaudiere cedex- France - www.focal.com
Tel. (+33) 04 77 43 57 00- Fax (+33) 04 77 43 57 04
Due to constant technological advances, Focal reserves its right to modify specifications without notice. Images may not conform exactly to specific product ..
