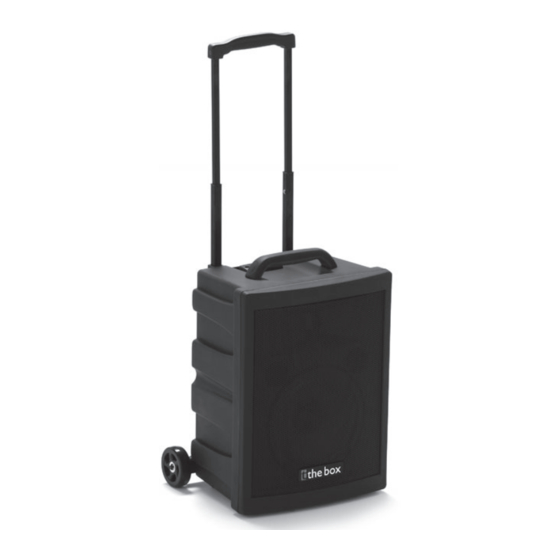

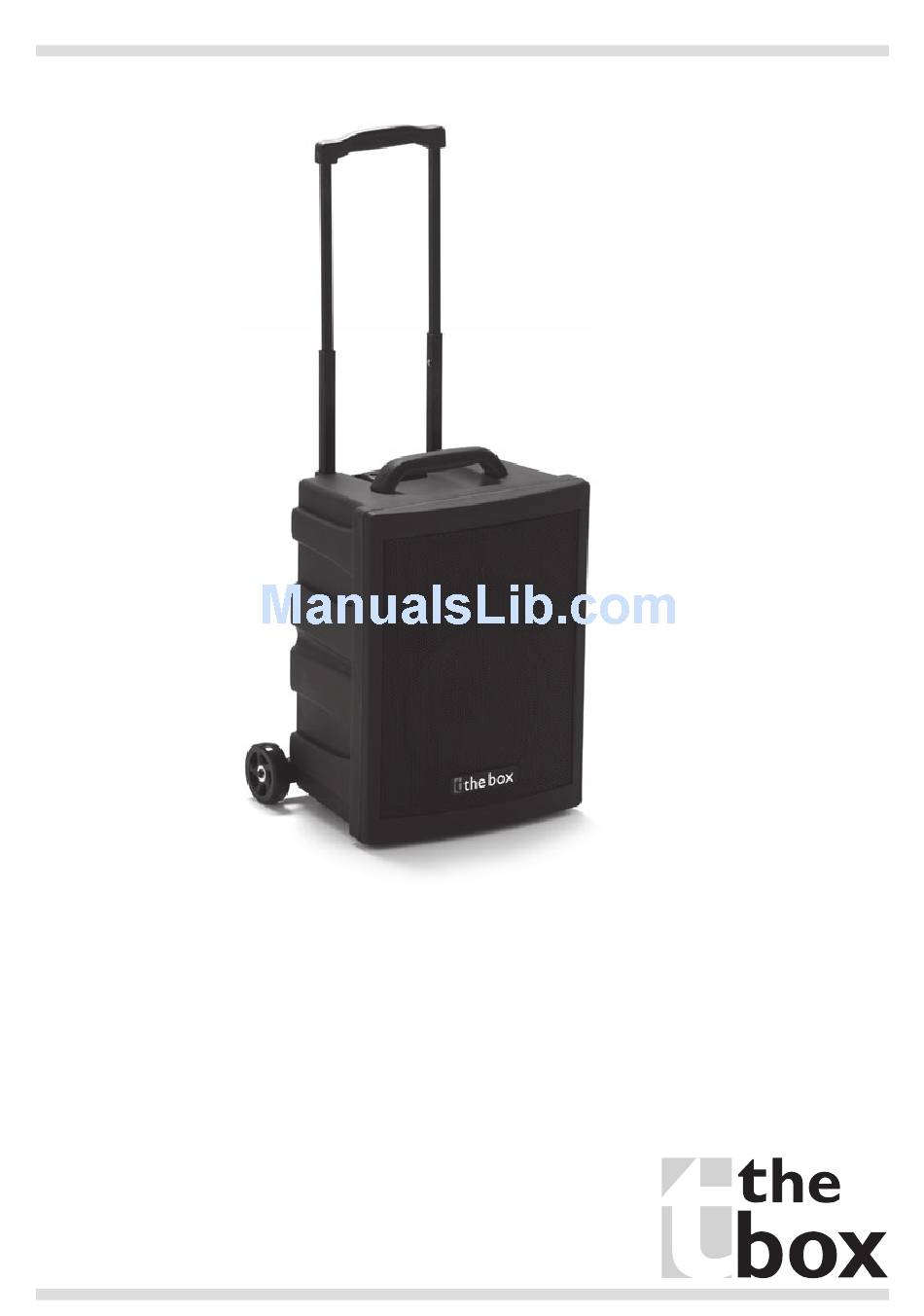

- Page 1 MBA75W MK II Owner’s Manual COMPACT POWERED SPEAKER with integrated cassette player/recorder...
-
Page 2: Important Safety Instructions
Important Safety Instructions For your own safety you must read this section in full first! Intended use This device is intended exclusively for the transmission of audio signals according to this manual and the specifications given here. By using it in any other way you face the risk of electric shock. No warranty claims will be granted for damage resulting from improper use! Risk of electrical shock! •... - Page 3 Charging time for the unit is about 8 hours. Wheels can fitted for effortless moving around. Please read this manual carefully so you can take advantages of all the features of the MBA75W MK II. Retain the manual for future reference. Thank you again for making the right choice in purchasing the THE BOX MBA75W MK II.
-
Page 4: Identifying The Parts
Identifying the Parts 1. Carry Handle: Used to carry the unit. 2. Rear housing and plastic fiber case 3. Front Cover 4. Loudspeaker: Built in 8 inch full range woofer speaker. 5. Tripod stand socket: 35mm jack to set up the regular tripod stand on the bottom. 6. - Page 5 B / Volume, Tone Quality and Master Control Panel -Master Panel Control B1. The CD VOL: Volume control with on/off. B2. The TAPE VOL.: Tape volume control with on/off. B3. Line in VOL: Volume control for external audio input. B4. 6.3mm Ø/RCA Audio Line in: To amplify external audio inputs likes CD, DVD. B5.
- Page 6 C / Power Descriptions C1. POWER SWITCH: - POWER ON (O); POWER OFF (—), make sure the unit is fully turned off to prevent current leakage when not in use. - The Green flashing lights will be switched off once the batteries are fully charged. C2.
- Page 7 D / CD/USB/SD/MMC Audio Music Player 1. POWER: In power OFF mode, press this key to power the unit up. In power ON mode, keep this key pressed for 2 seconds, to power the unit off. 2. LCD DISPLAY: Shows CD status including track number and playing time. 3.
-
Page 8: Handheld Transmitter
20. VOL-: When this key is pressed, the volume will decrease by 1dB per step, the min. volume is 0dB. 21. VOL+: When this key is pressed, the volume will increase by 1dB per step, the max. volume is 30dB. Notes: 1. - Page 9 inserting the batteries. Remove the batteries when not been used for a long period of time to keep the batteries life longer and to prevent damages by leakage. 10. Battery compartment cover: detach it before removing/changing the batteries. Options: Headset or Lavaliere microphone. Note on operation: When using a lavaliere microphone, try to place the capsule close to the mouth, but then don’t turn up the volume too much.
-
Page 10: Note On Unit Installation
Note On Unit Installation 1. Position the unit about 1 -1.5 meter above the floor, to get best performance. The bottom plate features a flange for a tripod stand (ST-3B). 2. Adjust the volume to minimum (Main volume control / CD or TAPE volume) by any volume control. 3. - Page 11 Disposal Do not dispose of the device at the end of his operating life in your normal domestic waste. This device is subject to the European Guidelines 2002/96/EC. • Have the product disposed of by a professional disposal company of by your communal disposal facility. • Observe the currently applicable regulations. In case of doubt contact your disposal facility. •...
- Page 12 © 2010 Musikhaus Thomann Treppendorf 30 • 96138 Burgebrach • Germany www.thomann.de...
