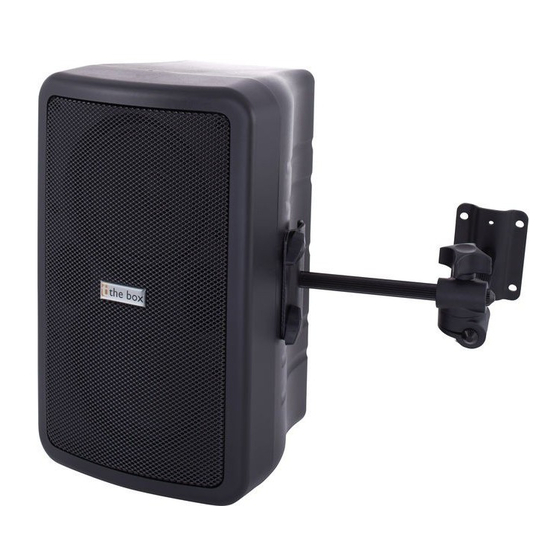

Active monitor speaker

Advertisement

MA 205
Owner's Manual
ACTIVE MONITOR
2x5"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MA 205 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for The box MA 205

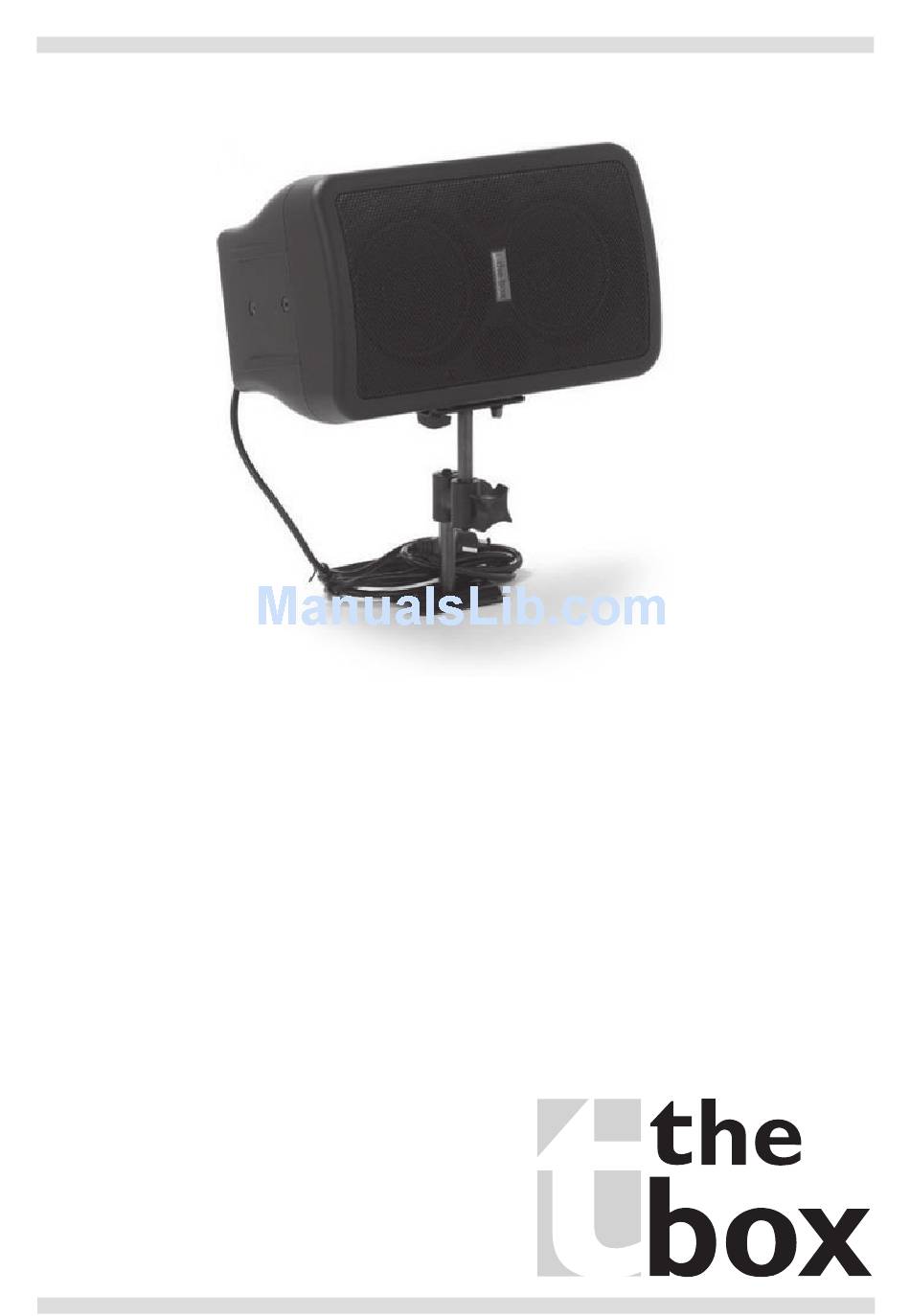

  • Page 1 MA 205 Owner‘s Manual ACTIVE MONITOR 2x5“...
  • Page 2 • NEVER manipulate the power cord or the plug. If a power cord is provided with an earth lead, this is mandatory to ensure safe operation! • NEVER submerse the speaker box in water. Liquid getting into the box will risk a short circuit and will be hazardous.
  • Page 3 • Before connecting or operating this speaker box, please study and follow the instruction manuals of all devices connected to the box, paying particular attention to the operating precautions and wiring procedure.
  • Page 4 The operating elements...
  • Page 5 1. POWER INDICATOR This LED lights up blue when the MA205 active speaker is powered up. 2. POWER SWITCH This switch is used to turn the MA205 ON or OFF. CAUTION: Make sure your supply voltage is same as indicated in the technical specifications of this manual, before you connect the device to the mains power supply.
  • Page 6 Quick Start Make all initial connections with all equipment powered off, and all volume controls turned down. Connect one side of the signal cable to the output of your audio source (e.g. the line out of your mixer). Connect the other side to this unit’s LINE INPUT socket u.
  • Page 7 Installtion examples: Technical specifications Output power ........ : 80W AES (rated power) Frequency Response ....: 75Hz - 16kHz @ +/- 10dB Max SPL (1W, 1m) ....... : 114dB/120dB Speaker complement..... : Two 5” extended range speakers Connectors ........: MIC/LINE balanced input at -45/+6dB ............
  • Page 8 Disposal Do not dispose of the device at the end of his operating life in your normal domestic waste. This device is subject to the European Guidelines 2002/96/EC. • Have the product disposed of by a professional disposal company of by your communal disposal facility.
