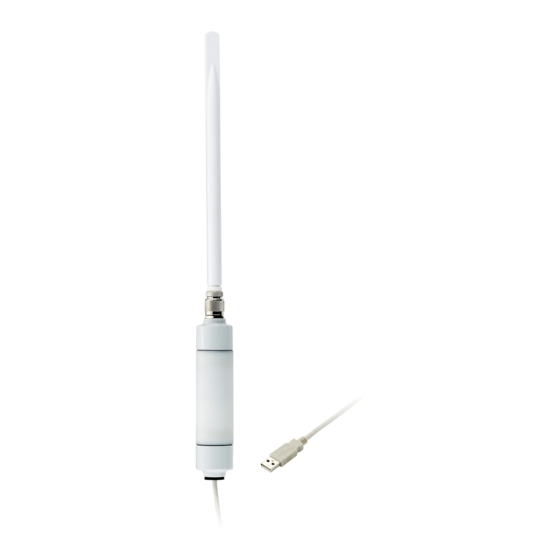

LevelOne WUA-5600 Brochure & Specs

150Mbps N Wireless
High Power Outdoor

USB Adapter

H/W Version: 1
Product Overview
Levelone's WUA-5600 is an IEEE 802.11b/g/n wireless
USB adapter with high power and outdoor design.
The wireless support 2.4GHz band b/g/n up to
150Mbps.It use IP67 enclosure & 5M USB cable for
outdoor environment. The USB connection can be use
form desktop or notebook PC to share a high speed
internet connect, photo, files, music and more.
Wide-coverage with wireless 802.11n
High output power solution provides you larger
wireless range and enhance mobility of usage. To
protect your wireless connectivity, the WUA-5600
can encrypt all wireless transmissions through
64/128-bit WEP data encryption and also supports
WPA-PSK, WPA2-PSK and WPS for WLAN security.
With the 150Mb 802.11 b/g/n High Power Wireless
Key Features
- Complies IEEE 802.11b/g/n standard
- IP67 enclosure for outdoor use
- 100mW-1W adjustable RF transmission power for
wide coverage area
- Bundle with 7 dBi Omni-Directional Outdoor
Antenna
- Support 64/128-bit WEP encryption, advanced WPA/
WPA2 AES/TKIP and WPS for WLAN security
- Support Soft AP function -allows user to create AP
function at your laptop
- Plug-and-Play with FCS-5041 outdoor PoE camera

1 2
USB Adapter, you will experience the best wireless
connectivity available.
Outdoor casing with IP67 rated
The IP67 waterproof housings provide protection in
outdoor applications, also the pole mount design
with "O" ring. Use the 5M USB 2.0 cable to provide
data+power.
Cooperate with FCS-5041 outdoor bullet camera
FCS-5041 is an outdoor bullet IP camera. It provides
a USB connector for option support WUA-5600 with
7dBi antenna. Installation will not be restricted by
location or landforms. The FCS-5041+WUA-5600 high
power wireless solution can be set within any wireless
coverage.
1. 7dBi Antenna
2. Outdoor housing
3. 5M USB 2.0 cable
3
Relate Products
FCS-5041
Day/Night H.264 Megapixel PoE
Outdoor Network Camera
WAB-3002
54Mbps Outdoor PoE Access Point
WUA-5600
