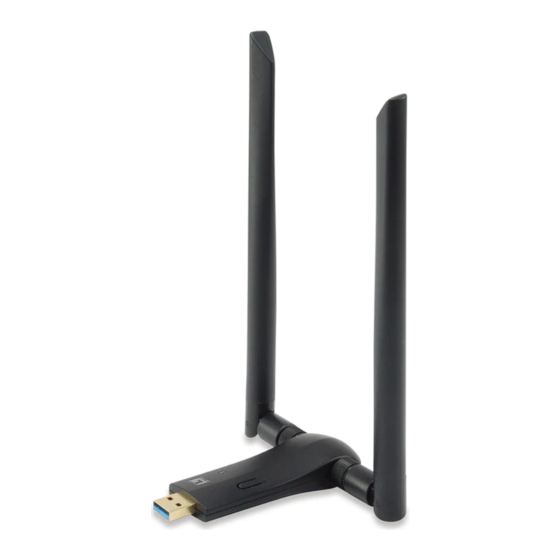

- Page 1 User Manual WUA-1810E Digital Data Communications GmbH Hohe Straße 1, 44139 Dortmund, Germany Email : support@level1.com 1 / 29...
-
Page 2: Table Of Contents
Table of Contents Part 1: Working on Windows PC……………………………………………………P2 1. Hardware Installation ………………………………………………………………P2 2. Install Driver on Your PC…………………………………………………………..P3 3. Connect to Your WiFi Broadband Network……………………………………….P5 4. Frequently Asked Questions for Windows PC…………………………………..P7 Part 2: Working on MAC OS X……………………………………………………….P8 1. -
Page 3: Part 1: Working On Windows Pc
Part 1: Working on Windows PC 1. Hardware Installation 1.1 Turn on your PC, insert USB WiFi Adapter to USB port of your PC Note: After you insert the USB WiFi Adapter into USB port of your PC, in case you see the below interface, please click the Cancel button. -
Page 4: Install Driver On Your Pc
2. Install Driver on Your PC 2.1 Important Notice: In case your PC has integrated WiFi adapter, please turn it off before installing driver for USB WiFi adapter. Otherwise, you will not know which WiFi adapter is working for you and these WiFi adapters may cause conflict with each other. Meanwhile, please uninstall the WiFi driver of your other WiFi adapter before installing driver of USB WiFi adapter;... - Page 5 2.3.2 In the below interface, please click "Next" button to continue with the installation; 2.3.3 In the below interface, please wait 2.3.4 In the below interface, please wait; 2.3.5 In the below interface, please select "Yes, I want to restart my computer now."...
-
Page 6: Connect To Your Wifi Broadband Network
3. Connect to Your WiFi Network You can manage your USB WiFi Adapter and connect it to your WiFi network by using the Windows Integrated WiFi network management tool. And for Windows 8.1/8/7/Vista/XP, you can also use the USB WiFi Adapter integrated Realtek WiFi Management tool to manage your WiFi network. - Page 7 3.1.3 When your wireless network is connected successfully, the following screen will appear. 3.1.4. Note: 3.1.4.1 If you cannot find the icon , please move your mouse to the top right corner of you desktop, select Settings Control Panel Network and Internet Network and Sharing Center Change Adapter Settings, right click Wi-Fi and select Connect/Disconnect.
-
Page 8: Frequently Asked Questions For Windows Pc
Network. 3.2.1.3 Once you are connected to the WiFi network successfully, your information for this Network will be stored in this software, you can find it in “Profile”; Every time when you turn on your PC, USB WiFi Adapter will connect to your WiFi network automatically with these information stored. -
Page 9: Part 2: Working On Mac Os X
Part 2: Working on MAC OS X We here take MAC OS X 10.9 as example for introducing the installation steps. Please note that the steps may vary slightly on other versions of MAC OS X. 1. Hardware Installation Please plug WiFi USB adapter to any USB port of your MAC, we suggesting plugging into the USB port with more open space for better WiFi signal reception. - Page 10 2.2.4 In the screen below, please also click “Continue”: 2.2.5 In the screen below, please select your language, we here take English as example and then click the “Continue” button: 9 / 29...
- Page 11 2.2.6 In the screen below, please select “Agree” 2.2.7 In the screen below, please firstly click “Install for all users of this computer” and then click the “Continue” button. 10 / 29...
- Page 12 2.2.8 In the screen below, please click “Install”: 2.2.9 In case you have setup password for your MAC OS X, you need to input this pass word in the screen below and then click “Install Software”: 2.2.10 In the screen below, please click “Continue Installation”: 11 / 29...
- Page 13 2.2.11 When you see the below screen, please wait for the driver to install automatically: 12 / 29...
-
Page 14: Join A Wireless Network
2.2.12 Congratulations! When you see the below interface, installation is successful, please click “Restart” to restart your MAC; After you restart your MAC, you are able to use this USB WiFi adapter. 3. Join A Wireless Network 3.1 Turn the WiFi Adapter Integrated Inside your MAC Off 3.1.1 Before using USB WiFi adapter, you can turn the WiFi adapter integrated inside your MAC OFF by clicking the “Turn Wi-Fi Off”... - Page 15 Network Utility”: 3.2.2 In the interface below, please click “Available Network”, find your Wi-Fi network, and then double click to select it: 3.2.3 And then please input your Wi-Fi Network Key in the screen below, please make sure that you input the same Wi-Fi Network key twice, and then click the “OK”...
- Page 16 3.2.5 Also, in the “Available Network” in the screen below, you can see that the Wi-Fi network with “*” is the one that you are currently connected to: 3.2.6 Manage My WiFi Network Profiles: For all the Wi-Fi networks which you connected to successfully, their network information including the Wi-Fi network names and Wi-Fi keys are stored in the utility automatically, you can shift between them by double clicking their name in the list below, you...
- Page 17 3.2.7 In the above interface, you can select a profile and: 3.2.7.1 See that the one with “*” in the front is the WiFi network you are currently connected to. 3.2.7.2 Press the “Apply” button and you will be connected to the selected WiFi network.
- Page 18 3.3.2 By clicking the “Open Network Preferences” in the screen below, you will see all the Network information about your MAC 3.3.3 In the interface below, you can see all the WiFi adapters installed on your MAC, the one marked in green color is AC Wireless USB adapter, due to a displaying bug, it is being displayed as “802.11 N NIC”;...
-
Page 19: Uninstall The Driver And Utility On Mac Os
3.3.4 In the interface below, the one marked in Orange color is the Wi-Fi adapter integrated in your MAC, you can click the “Turn Wi-Fi ON/OFF” to control it here also. 3.4 Turn Wi-Fi ON or OFF 3.4.1 In “Link Status” in the screen below, once you click the “Turn Radio Off”, your USB WiFi Adapter will be turned off and you will be disconnected from the current WiFi network and not able to connect to other WiFi network either. - Page 20 using the software that you downloaded, please click the Software as below, follow the on screen instruction to uninstall it step by step: 19 / 29...
-
Page 21: Part 3: Wireless Installation Considerations
Wireless Installation Considerations The LevelOne wireless adapter lets you access your network using a wireless connection from virtually anywhere within the operating range of your wireless network. Keep in mind that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. - Page 22 The wireless connection in public places is usually called “hotspots”. Using a LevelOne USB adapter with your laptop, you can access the hotspot to connect to Internet from remote locations like: airports, hotels, coffee shops, libraries, restaurants, and convention centers.
- Page 23 Centralize your router or access point Make sure you place the router/access point in a centralized location within your network for the best performance. Try to place the router/access point as high as possible in the room, so the signal gets dispersed throughout your home.
-
Page 24: Part 4: Troubleshooting
Troubleshooting This chapter provides solutions to problems that can occur during the installation and operation of the WUA-1810E. Read the following descriptions if you are having problems. The examples below are illustrated in Windows® 7. If you have a different operating system, the process on your computer will be similar. - Page 25 Click the + sign next to Network Adapters. Right-click on Realtek 8812BU Wireless LAN 802.11ac USB NIC. Select Properties to check that the drivers are installed properly. Look under Device Status to check that the device is working properly. Click OK to continue. 24 / 29...
- Page 26 2. The computer does not recognize the WUA-1810E. Make sure that the WUA-1810E is properly seated in the computer’s USB port. If Windows does not detect the hardware upon insertion of the adapter, make sure to completely remove drivers that were previously loaded.
-
Page 27: Part 5: System Specifications
System Specifications Standards IEEE 802.11a/b/g/n/ac IEEE 802.11ac Wave 2 MU-MIMO Processor RTL8812BU USB 3.0 Connector Indicator WiFi LED Status indicator 5V/500mA Power Input Data Rate 802.11ac 866.7, 520, 433.3, 390, 325, 292.5, 260, 195, 130, 97.5, 65, 32.5 Mbps 802.11n 300, 270, 240, 180, 120, 90, 60, 30 Mbps 144.4, 130, 115.6, 86.7, 57.8, 43.3, 28.9, 14.4 Mbps 802.11g... - Page 28 802.11n HT20 (5GHz) Horizontal : -46.87dBm Vertical : -47.65dBm 802.11n HT40 (5GHz) Horizontal : -46.40dBm Vertical : -46.37dBm 802.11ac HT80 (5GHz) Horizontal : -46.39dBm Vertical : -45.50dBm Wireless Channels Country Region BRAZIL 2.412GHz~2.472GHz: CH1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 5.18GHz~5.32GHz: CH 36, 40, 44, 48, 52, 56, 60, 64 5.5GHz~5.7GHz: CH 100, 104, 108, 116, 120, 124,...
- Page 29 Wireless Antenna gain 5dBi EIRP(dBm) 15.57dBm(802.11b) 13.57dBm(802.11g) 12.57dBm(802.11n20) 11.57dBm(802.11n40) 15.48dBm(802.11a) 13.49dBm(802.11n) 11.50dBm(802.11ac) Wireless 5dBi Omnidirectional Detachable Antenna x 2 (2T2R) Antenna 2.4GHz & 5GHz Wireless Frequency Band DSSS, OFDM Wireless Modulation 300Mbps@2.4GHz Features General 867Mbps@5GHz Performance Operating Distance 26.5 × 62.5 × 14.6 mm Physical Specifications Dimensions (W x D x H mm) 100g...
-
Page 30: Part 6: Compliance Statement
Compliance Statement CE marking is a certification mark that indicates conformity with health, safety, and environmental protection standards for products sold within the European Economic Area (EEA).The CE marking is also found on products sold outside the EEA that have been manufactured to EEA standards.
