Page 1: Video Output
HDMI REPEAT WITH VIDEO OUTPUT Operation Manual CM-388M... -
Page 2: Copyright Notice
Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents 1. Introduction ..............1 2. Applications ..............1 3. Package Contents ............1 4. System Requirements ............1 5. Features ................2 6. Specifications ..............3 6.1 Supports Resolutions ..........3 6.2 Audio Chart ..............4 7. Operation Controls and Functions .........4 7.1 Front Panel ..............4 7.2 Rear Panel ..............5 8. -
Page 5: Introduction
1. Introduction The HDMI Repeat with Video Output is designed to convert digital signal from HDMI (or DVI + Coaxial) source to analog signal of NTSC or PAL system, with L/R stereo audio. Besides S-Video and Composite Video outputs, it also provides an HDMI bypass output to deliver the original signal, and a Coaxial output to send S/PDIF digital audio to audio amplifier. -
Page 6: Features
5. Features • HDMI 1.2, HDCP1.1 and DVI1.0 compliant • Converts video signal from HDMI source to NTSC or PAL signal selectable • Converts digital audio from HDMI source to analog stereo audio • Accepts a wide range of HDTV input resolutions, from 480i to 1080p@60Hz and PC from VGA@60Hz to WUXGA@60HzRB •... -
Page 7: Specifications
6. Specifications Input Ports 1 x HDMI type A, 1 x Coaxial Output Ports 1 x HDMI type A, 1 x Coaxial, 1 x Composite-Video, 1 x R/L 1 x S-Video, 1 x R/L Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 141(W) x 127(D) x 38(H) -
Page 8: Audio Chart

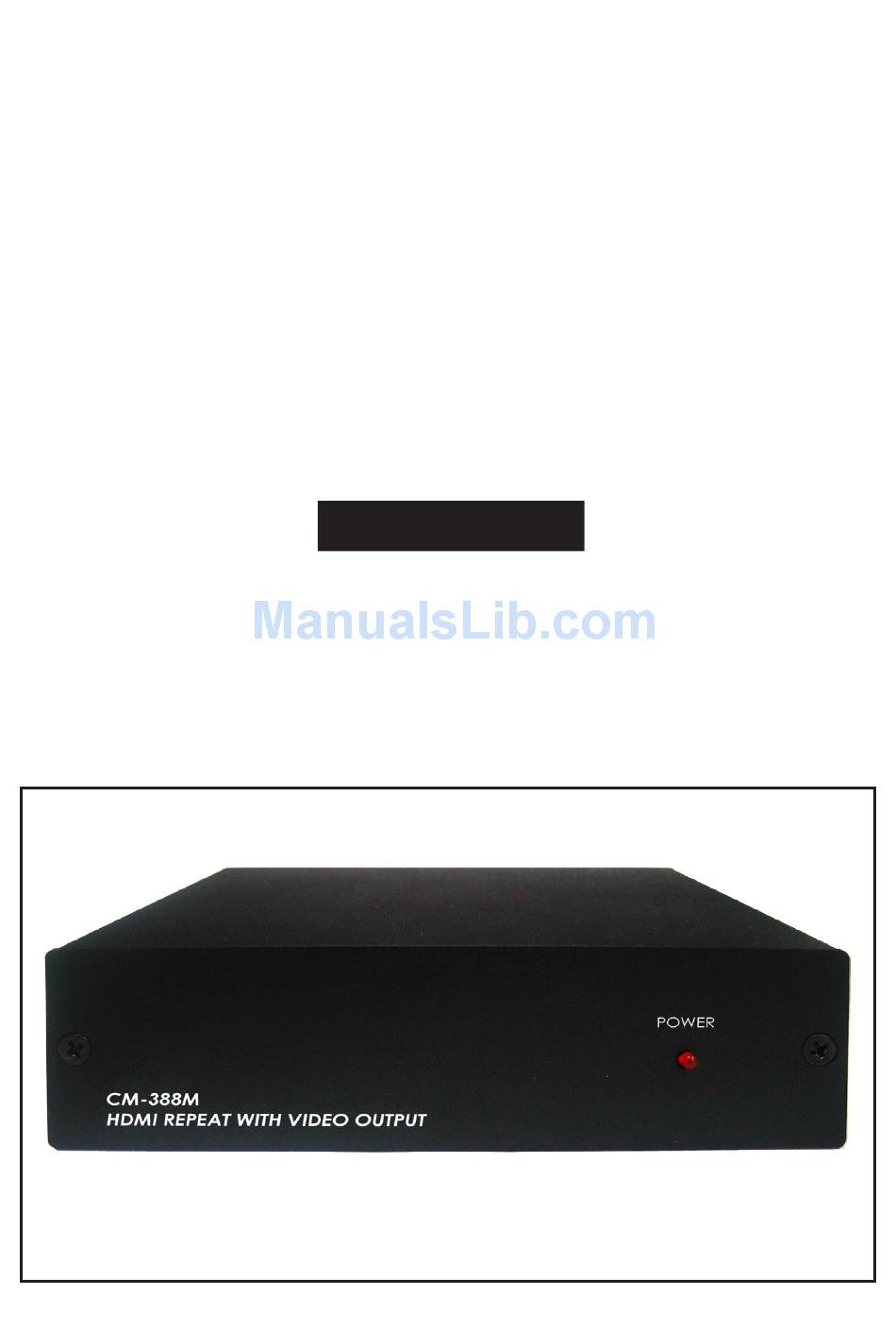

(Audio source is LPCM 2CH) 7. Operation Controls and Functions The following sections describe the hardware components. 7.1 Front Panel POWER CM-388M HDMI REPEAT WITH VIDEO OUTPUT ① ①. Power LED: The LED indicator will illuminate when the unit is connected with power supply. -
Page 9: Rear Panel
7.2 Rear Panel ① ③ ⑦ NTSC COAXIAL COAXIAL VIDEO DC 5V IN HDMI HDMI S-VIDEO INPUT OUTPUT ② ④ ⑤ ⑥ ⑧ ①. Coaxial Input: Connect to the Coaxial output port of your source equipment such as DVD player or Set-Top-Box for audio signal sending. ②. HDMI Input: Connect to the HDMI output port of your source equipment such as DVD player or Set-Top-Box. -
Page 10: Connection And Installation
8. Connection and Installation Amplifier TV/Monitor TV/Monitor... -
Page 11: Acronyms
9. Acronyms Acronym Complete Term HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Video Graphics Array... - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw MPM-CM388M...
