INSTRUCTION MANUAL

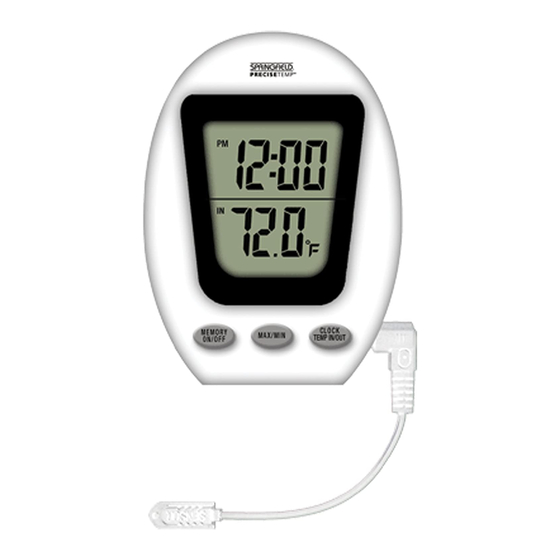

DUAL VIEW INDOOR/OUTDOOR THERMOMETER
MODEL #90173-1

FEATURES

 1.5"H x 1.5"W LCD window with 2 readouts
 12 hour clock
 Displays temperature in °F or °C
 Indoor temperature range of 14˚F to 122˚F (-10˚C to 50˚C)
 Outdoor temperature range of -58˚F to 158˚F (-50˚C to 70˚C)
 Temperature tolerance +/-2°F (+/-1.1°C)
 Min./Max. temperature memory recall function
 Detachable, weatherproof sensor probe with 10 ft. long cable
 Tabletop or wall-mountable
 Requires one AAA alkaline battery (included)

BATTERY INSTALLATION

1. The battery door is located in the back of the unit. To open remove the screw and open the door.
2. Insert (2) LR44 batteries according to the polarity markings located on the inside of the battery
compartment.
3. Place the battery door back on and insert screw to secure door.

LCD READOUTS

This unit scrolls through three different modes which are activated by pressing the "CLOCK, TEMP
IN/OUT" button.
Mode 1 Mode 2 Mode 3
Upper Display Indoor temperature Clock Clock
------------------- ------------------------- -------------------- ------------------
Lower Display Outdoor temperature Indoor Temperature Outdoor Temperature
NOTE: Probe must be plugged into the jack or LL.L will appear where the outdoor temperature is to be
displayed.

OPERATION

Setting the Clock:
Select the modes with clock display. The buttons to set the clock are located on the back of the unit.
Press the "HR" button to set the hour and the "MIN" button to set the minutes.
