• Rerouting on Diverting No If set the route only matches to an incoming diverting
• Force enblock
• Add #
• Disable Echo Canceler
• Call Counter
• Max
6 Click "OK"
If, by way of exception, the route for a Map entry is to be configured with a different
destination than that specified in the route's destination field, you can select this from the
Destination field of the "Map".

12.5.1 Add CGPN map

1 Select Gateway > Routes.
2 For the interface, that you want to add a CGPN map, click the "->" sign under the
CGPN map heading.

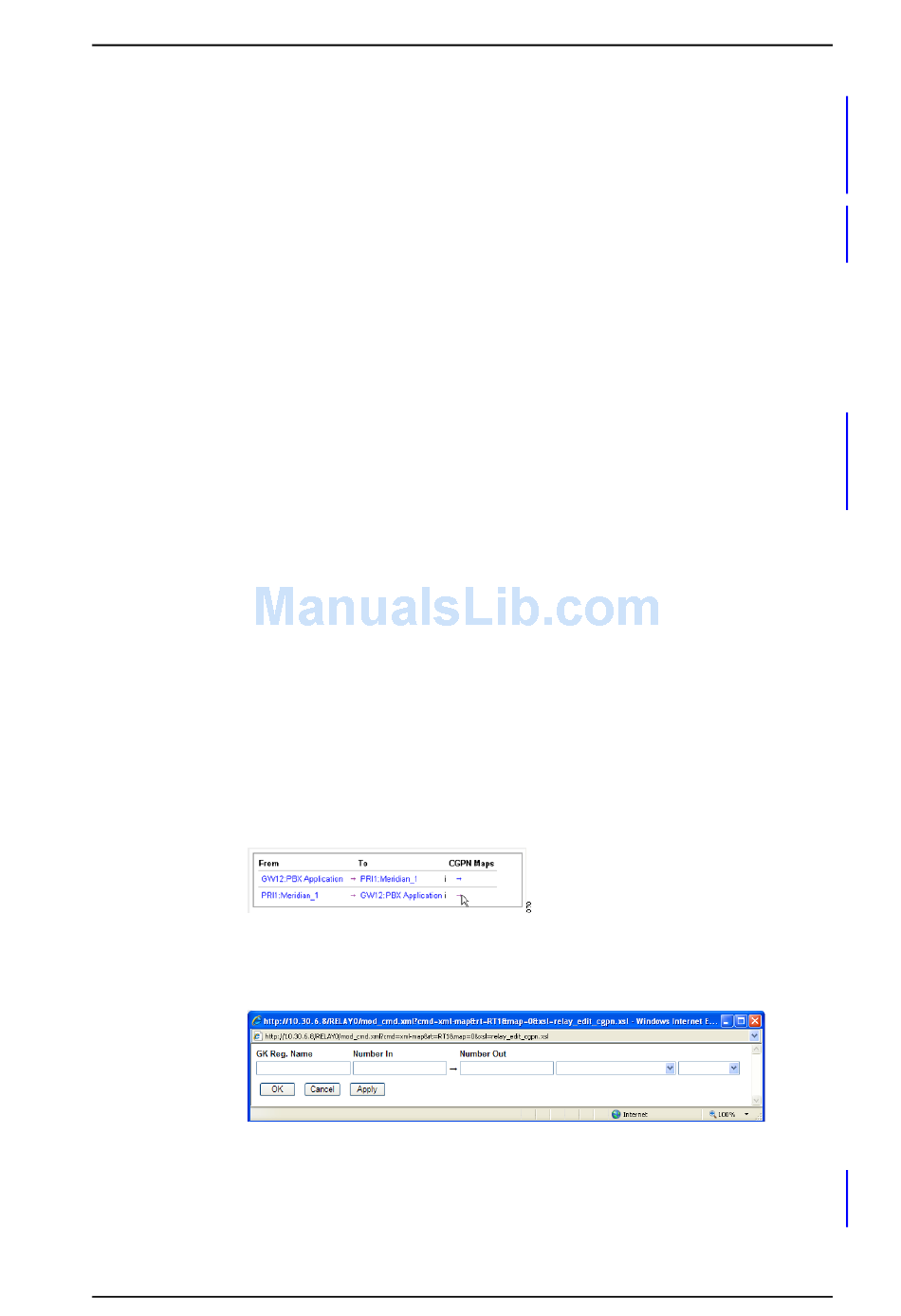

Figure 75. Add CGPN map
A new window opens.
Figure 76. Number In – Number Out
3 If a "GK Reg. Name" is configured, the mapping is applied only if the call is
received from a Gatekeeper/Registrar interface and the name configured for the
registration matches this name.
2009-03-10 / Ver. E
number instead of a called party number. If the
diverting number matches the called party number it is
replaced by the diverting number and the diverting
number is removed and the call is routed normally.
Used to convert a call from overlap dialing to enblock
dialing. The call is not sent until for a timeout of 4s no
additional dialing digit is received. See
en-bloc dialling
A # can be transmitted to mark the end of the call
number. This is required for devices, such as from
Cisco, which are unable to identify the end of a
number properly.
see 21.14 Suppress Echo Compensation
Call Counters can be used to limit the calls sent
through the given route. If the same Call Counter (any
Name) is configured for several maps, each active call
sent through such a map is counted with the Call
Counter. A name for resource management can be
entered. See
150.
Limits the number of permitted calls for a route. See
21.15 Resources Management
Figure 84.
Figure 85.
on page 150.
21.15 Resources Management
on page 150.
