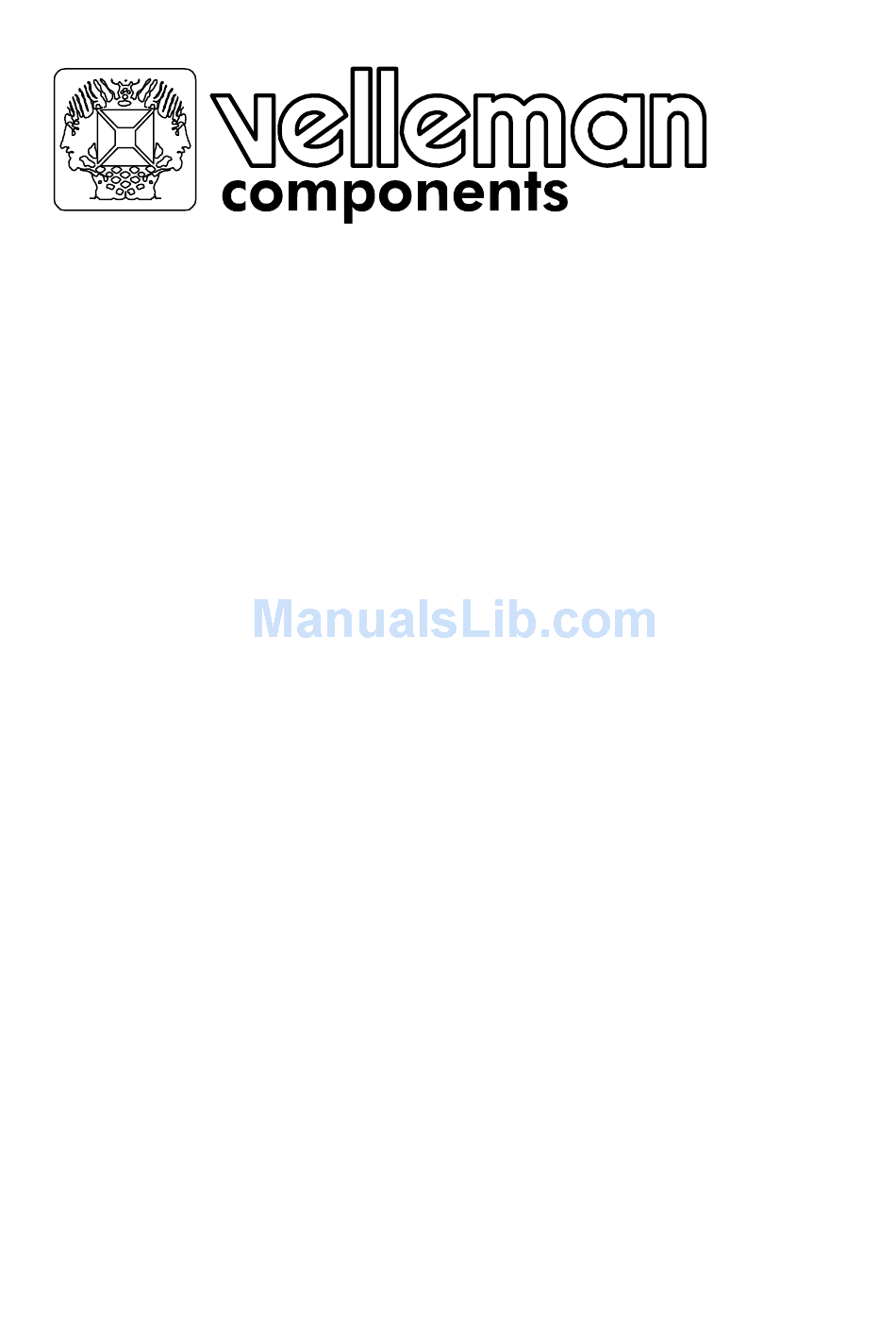

- Page 1 AVM360 Analog multimeter OPERATION MANUAL GEBRUIKERSHANDLEIDING MANUEL D’UTILISATEUR...
-
Page 2: A Word About Safety

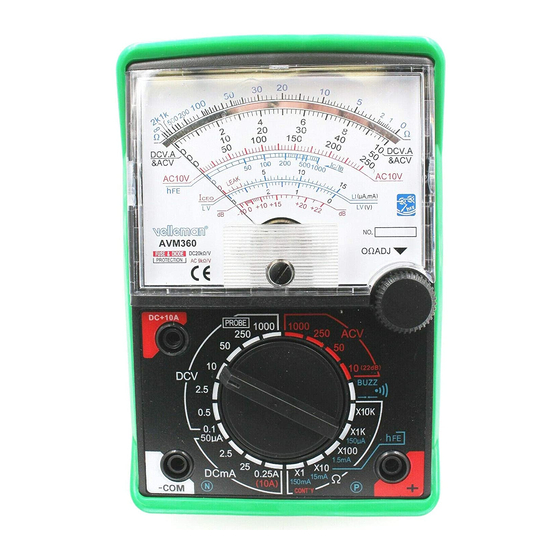

AVM360 Analogue Multimeter 1. Description Your AVM360 is a professional analogue multimeter. It is ideally suited for field, lab, shop, and home applications. It is capable of performing functions : DC Voltage AC Voltage DC Current Resistance Transistor Iceo test... - Page 3 Your AVM360 is an example of superior design and craftsmanship. The following suggestions will help you care for the multimeter so you can enjoy it for years : Keep the multimeter dry. If it gets wet, wipe it dry immediately.
- Page 4 Range selector switch knob í Measuring terminal + ÷ Measuring terminal - COM (common) û OUTPUT (series condenser) terminal ø 0 Ω adjusting knob ù Panel î Indicator Pointer ü Rear case bolt ê Rear case 3. Reference table for reading AVM360...
- Page 5 1 + 14 dB 250 V x 1 + 28 dB Iceo (for big TR) x 10 (for small TR) x 10 x 1K µA x 10 x 100 µA x 100 Diode x 10 mA x 1 mA x 10 AVM360...
-
Page 6: Operating Instructions
ACV test. Such a measurement is made to block the DC voltage which is present in the same circuit and must be cut out so that AC voltage can be read alone. 4.6 Iceo transistor test AVM360... - Page 7 2. Adjust 0Ω ADJ to adjust the pointer to zero position. 3. hFE (DC amplification) test. For NPN transistor For PNP transistor 4. Read the hFE scale. The value of the reading is Ic / Ib, which is the DC amplification degree of the tested transistor. AVM360...
-
Page 8: Diode Test
Decibelmeter : -10 to +22 dB 0 dB = 1mW / 600 Ω 5.3 DC Current Ranges : 50 µA (at 0.1 VDC position) - 2.5 mA - 25 mA - 0.25 A Accuracy at FSD : 3 Volt Drop : 250 mV AVM360... -
Page 9: Battery And Fuse Replacement
Open the case as mentioned above and replace the blown fuse with ratings specified : F 1.5 A / 250 V Remark : Before attempting to open the case, be sure that the test leads have been disconnected from measurement circuit to avoid electric shock. AVM360...
