Summary of Contents for Velleman DVM810

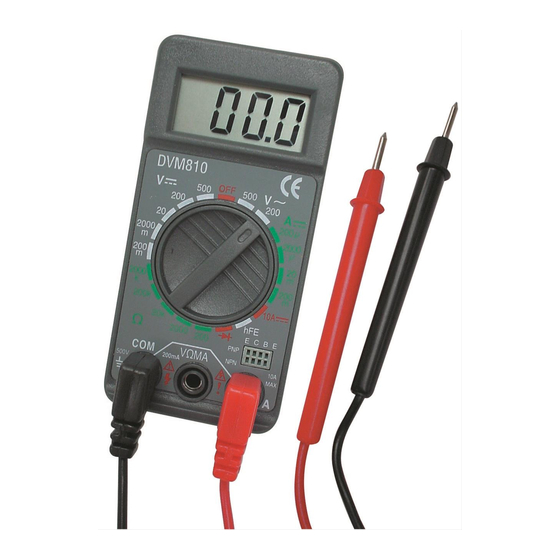

- Page 1 DVM810 DIGITAL MINI MULTIMETER DIGITALE MINI MULTIMETER MINI MULTIMETRE NUMERIQUE DIGITALES MINIMULTIMETER Instruction Manual Gebruikershandleiding Manuel d’utilisation Gebrauchsanleitung...
- Page 2 1. INTRODUCTION The DVM810 is a compact multimeter with a 3 1/2 digit LCD for measuring DC and AC voltages, DC currents, resistance, diodes and transistors (hFE). Full overload protection is provided. It is an ideal instrument for hobbyists, for use in the field, for laboratories and workshops and for domestic applications.
- Page 3 3. Connect the test leads to the device or circuit to be measured. 4. Activate the device or circuit to be measured. Both the voltage reading and the polarity will be displayed. DVM810...
- Page 4 2. Determine whether the transistor is NPN or PNP and locate the emitter, base and collector leads. Insert the leads into the proper holes of the hFE-socket on the front panel. 3. The display will show the approximate hFE-value at the moment of testing. Base current 10µA, Vce 2.8V. DVM810...
- Page 5 2 screws at the back of the device. Remove the old battery or fuse and insert a new one. Observe the polarity ! 6. ACCESSORIES - instruction manual - a set of test leads - a GP23GA-battery of 12V DVM810...
