Spypoint BF-10HD Quick Start Manual

SPY SPY P P INT INT
Surveillance camera
Expedition series
eries Expedition series Pro series Smart series
ure Série Expédition Série pro Série Smart
Serie Expedition Serie Pro-Serie Smart serie
ntura Series expedición Serie pro Smart serie
entura Serie spedizione Serie pro Smart serie
Models:
BF-10
HD
BF-12
HD
Quick start guide
v1.2
1

Getting started

2
Settings
3
Error Messages
Complete Instructions
4
www.spypoint.com
1
Getting started
Useful! Detach a section and insert it into the

sleeve provided for this purpose within the
housing for the camera.

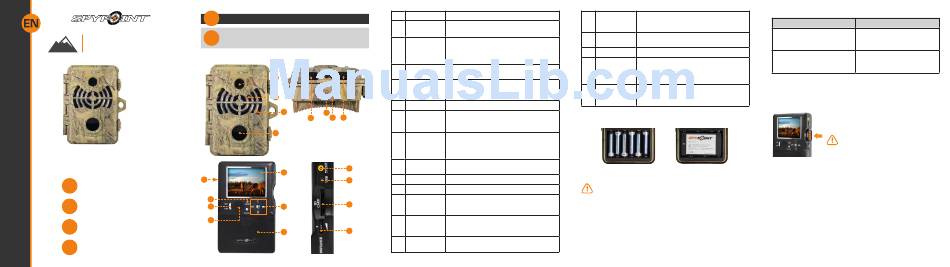

COMPONENTS
Tiny series Live series
Série Tiny Série Live
Tiny-Serie Live-Serie
Serie Tiny 1 Series Live
Serie Tiny Serie Live
2
3
6
5 7 8
4
16
13
9 17
10
18
11 14
12
19
15
1 Photo lens Image sensor and infrared filter.
2 Invisible Night lighting to obtain black and white
LEDs photos and videos.
3 Test light Flashes in TEST mode when there is detec-
tion and flashes 60 seconds in PHOTO/VIDEO
mode to allow the user to leave without being
photographed or recorded.
4 Fresnel lens Expands the detection area and increases the
sensitivity of the camera's motion sensor.
5 12V power This camera can be powered from an
jack external 12-volt DC input such as a 12V
battery or a 12V adapter, sold separately.
6 Tripod mount Standard ¼-20" tripod mount.
7 Microphone To record sound, lift the rubber cap and turn
it slightly to completely clear the microphone
receiver.
8 Solar panel Allows the user to connect a solar panel
jack (SP-12V) to maintain the charge of the
lithium battery pack (LIT-09/LIT-C-8), sold
separately.
9 Battery switch Allows the user to select the power source
according to the type of batteries used.
10 BUSY LED Lights up when the camera is recording.
11 ON/OFF Allows the user to turn on/off the camera.
12 Built-in When viewing videos, allows to hear the
speaker sound.
(if applicable)
13 Viewing To access the main menu and view photos/
screen videos. Screen with zoom and pan functions.
14 Navigation Buttons to set the camera.
buttons
15 Battery case Insert 6 AA batteries (alkaline or lithium) or
a rechargeable lithium battery pack (LIT-09/
LIT-C-8, sold separately).
16 TV OUT To view or delete photos/videos directly on
TV.
17 USB port To transfer photos/videos to a computer.
18 SD card slot An SD card is required to record photos/
videos. The camera is compatible with SD/
SDHC memory card, up to 32 GB capacity
(not included).
19 Distance Allows the user to adjust the distance of
dial detection and the sensitivity of the detector.
See DISTANCE section for more details.

BATTERY INSTALLATION

6 alkaline AA batteries Lithium battery pack
LIT-09/LIT-C-8
We recommend the use of new batteries to ensure a maximum
performance of the camera. Rechargeable AA batteries are not
recommended.
Battery switch position (depending on the power source)
Power source Battery switch position
• 6 AA
• 12V ALK
• 12V + 6 AA
• LIT-09*
• 12V + LIT-09*
LIT-09
• Solar panel + LIT-09*
* Rechargeable lithium battery pack, sold separately (LIT-09) or with
a charger (LIT-C-8).

MEMORY CARD INSTALLATION

Insert an SD/SDHC memory card (up to 32 GB
capacity) in the card slot. The card is inserted
correctly when a click is heard.
Before inserting or removing a memory
card, always turn off the camera to
prevent loss or damage of the photos already
recorded.
