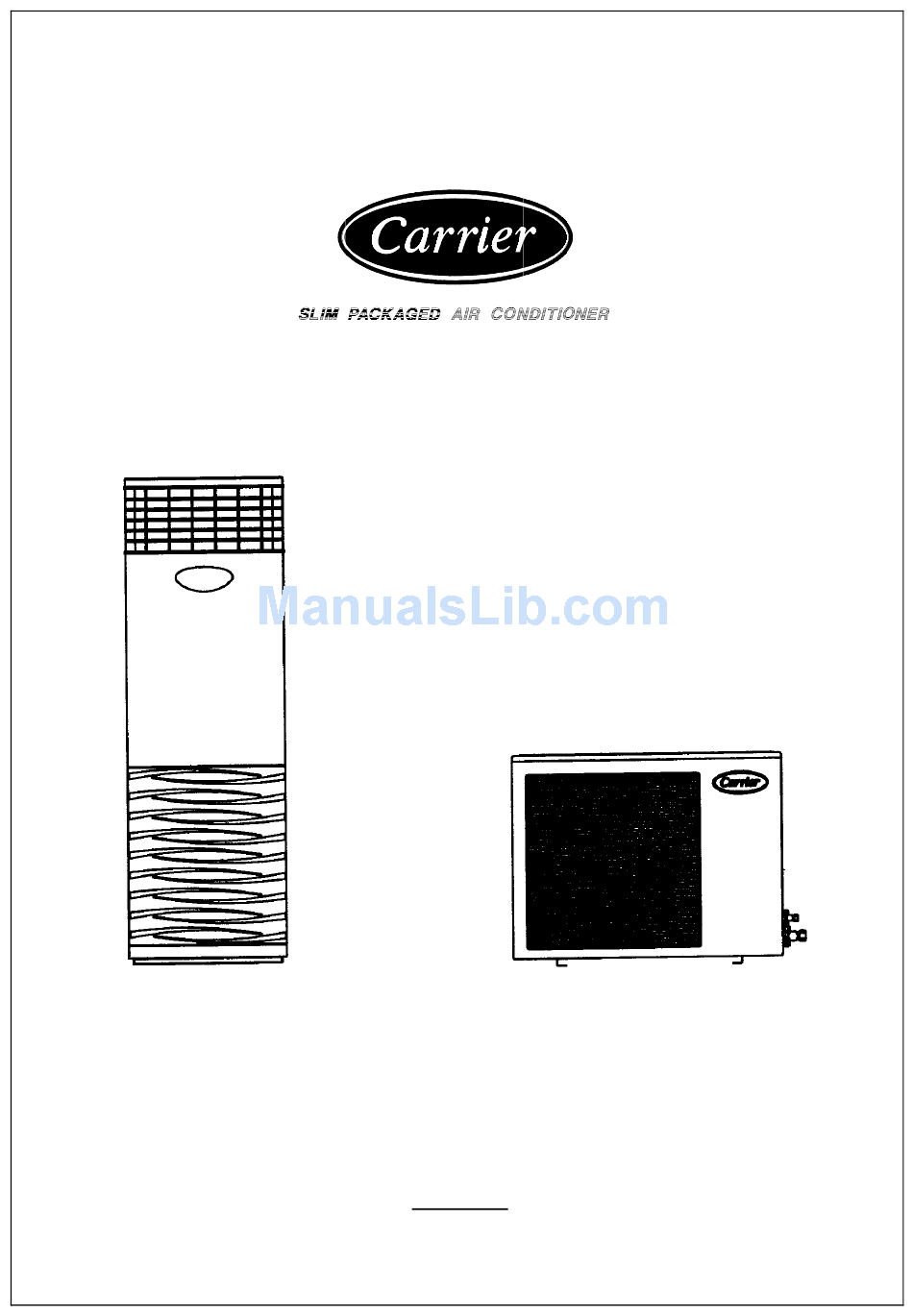

  • Page 1 OWNER’S MANUAL INDOOR UNIT OUTDOOR UNIT Thank you very much for purchasing CARRIER Air Conditioner. Please read this owner’s manual carefully before using your Air Conditioner. PN PE630728...

  • Page 2: Table Of Contents

    CONTENTS TECHNICAL SPECIFICATIONS PRECAUTIONS FOR SAFETY CAUTIONS ABOUT INSTALLATION CAUTIONS ABOUT OPERATION MAINTENANCE AIR CONDITIONER CONTROLLER 10-16 TROUBLESHOOTING GUIDE...

  • Page 3: Technical Specifications

    TECHNICAL SPECIFICATIONS...

  • Page 4: Precautions For Safety

    I. PRECAUTIONS FOR SAFETY Do not attempt to install the unit by yourself. This unit requires a qualified installer. This air conditioner must be connected Ground the unit without fail. to the main power supply by means of a circuit breaker.

  • Page 5: Cautions About Installation

    II. PRECAUTIONS ON INSTALLATION Lay the drain hose for perfect draining. Make sure to connect the air conditioner to an exclusive power supply of rated circuit breaker and voltage. Do not install the unit in an area where Consider the weight of the unit in inflammable gases could leak constructing &...

  • Page 6: Cautions About Operation

    III. PRECAUTIONS ON OPERATION When cleaning the unit, make sure to turn Do not put anything on the outdoor off the main switch unit nor step into it. It may topple and cause an injury. Ensure that the air outlet or inlet of the If you will not use the airconditioner outdoor unit is not blocked.
  • Page 7 III. PRECAUTIONS ON OPERATION (CONTD.) Do not use benzene, alcohol, thinner, Do not insert fingers and sticks in to for cleaning the unit. Use water, the air outlet and air inlet to avoid mild soap and soft cloth instead. injury. If the unit does not operate normally, immediately turn off the air conditioner and the main circuit breaker.

  • Page 8: Maintenance

    IV. MAINTENANCE Check that the air filter is installed Check that the air outlet & inlet of before turning ON the unit indoor and outdoor units are not blocked. Do not clean the coil with vacuum cleaner. Use vacuum cleaner or pressurized It can damage the coil.

  • Page 9: Maintenance

    IV. MAINTENANCE (CONTD.) Dry the filter under sunshade.

  • Page 10: Air Conditioner Controller

    V. AIR CONDITIONER CONTROLLER V1. The following features can be operated by the buttons on the Display unit. V2.1 Power on/off Press POWER button to turn ON the air conditioner or vice versa. When turned ON, it will operate according to the last setting made by the user. V2.2 Fan Press FAN button to select desired fan speed (HIGH, MED, LOW or AUTO).

  • Page 11: Air Conditioner Controller

    V. AIR CONDITIONER CONTROLLER (CONT’D.) V2.3.1 Fan If the system is in FAN mode, the FAN LED on the Display unit will be lit. The system will operate as the fan only. The TEMP∆ and TEMP∇ buttons are not used. V2.3.2 Cool If the system is set to COOL mode, the COOL LED on the Display unit will be lit.
  • Page 12 V. AIR CONDITIONER CONTROLLER (CONT’D.) V.3 The system can be controlled using the LCD Remote unit (OPTIONAL ITEM) V3.1 LCD type remote (OPTIONAL ITEM) The following features can be accessed using the LCD type remote. V3.1.1 Power ON/OFF V3.1.2 FAN V3.1.3 Operating mode: Press the MODE button on the LCD type remote, to operate the air conditioner in FAN, COOL or DRY modes.
  • Page 13 V. AIR CONDITIONER CONTROLLER (CONT’D.) While the system is in SLEEP mode: • Pressing the SLEEP button again cancels the sleep function. • Pressing the TEMP button will increase the set temperature by 1°C from the last setting. • And unit is turned off or power failure occurs, the SLEEP function is cancelled.
  • Page 14 V. AIR CONDITIONER CONTROLLER (CONT’D.) To cancel this function • Press button until the display shows blinking OFF, • Press CANCEL button. NOTE: If no button is pressed within 10 seconds, LCD display will return to show setting temperature and no data will be transmitted. V3.2 Compressor delay protection Each time the compressor shuts off there is a 3-minute time delay before it restarts.

  • Page 15: Troubleshooting Guide

    Clean the drain pan and the room clogged drain line drain line. No signal output from air Controller’s battery is weak Replace controller with conditioner controller new battery of the same specs. Concepcion Carrier Air Conditioning Company Web Site: www.carrier.com.ph...
