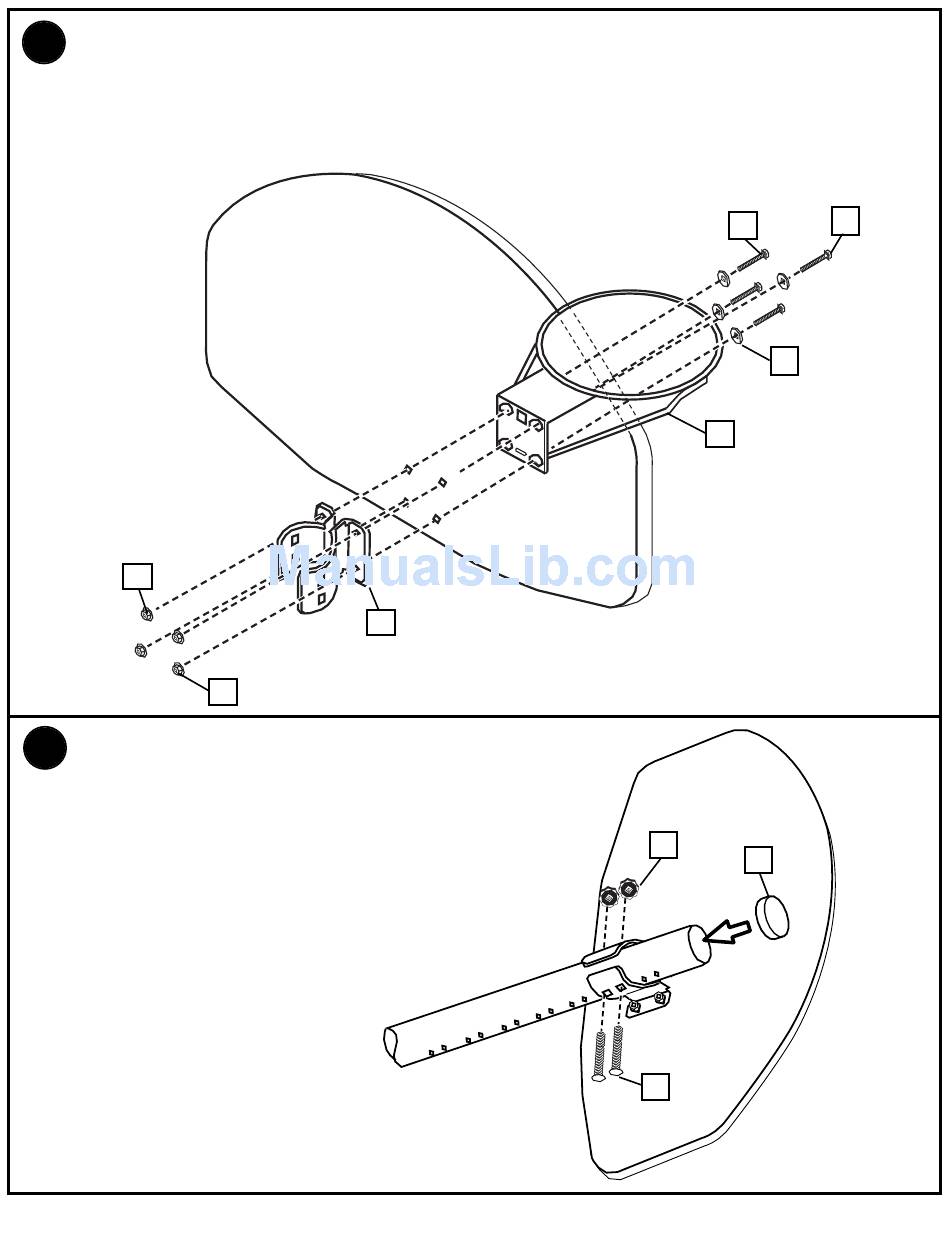

Mount brackets (20) and rim (18) to backboard and finger tighten as shown.
6.
NOTE: Final adjustments will be made in Step 9.
IMPORTANT! For spring loaded rim assembly, refer to instructions
included with rim hardware.
17
While still in the horizontal position,
9.
carefully slide backboard components onto
pole. Secure hardware at desired position
as shown and tighten all hardware
completely at this time.
