INSTALLATION AND OPERATION MANUAL
Free-Standing
EPA Certified
Wood-Burning Stoves
Save These Instructions
For Future Reference
P/N 506031-01, Rev. C, 01/2012
A French manual is available upon request. Order P/N 506223-28.
Ce manuel d'installation est disponible en francais, simplement en faire la demande. Numéro de la
pièce 506223-28.
WIN # 20551
•
Hot! Do not touch! The glass and surfaces of this appliance will
be hot during operation and will retain heat for a while after
shutting off the appliance. Severe burns may result.
•
Carefully supervise children in the same room as appliance.
This appliance must be properly installed and operated in order to prevent the
possibility of a house fire. Please read this entire installation and operation
manual before installing and using your wood stove. Failure to follow these
instructions could result in property damage, bodily injury or even death.
Contact your local building or fire officials to obtain a permit and
information on any installation requirements and inspection
requirements in your area.

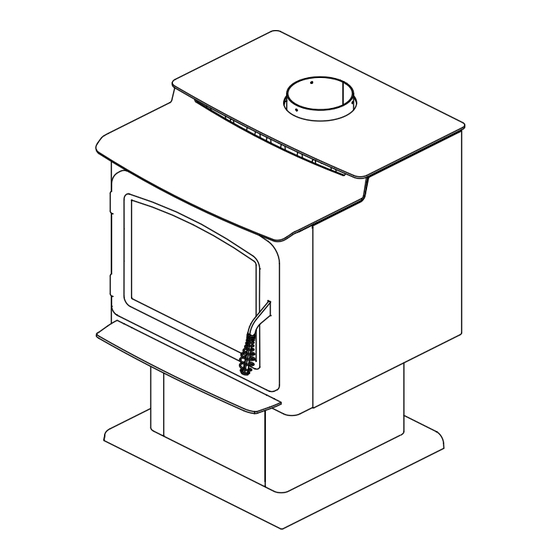

Model Grandview™ GV230
WARNINGS
Grandview GV230
Wood Stoves
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lennox Country Grandview GV230
Summary of Contents for Lennox Country Grandview GV230
- Page 1 INSTALLATION AND OPERATION MANUAL Free-Standing EPA Certified Wood-Burning Stoves Save These Instructions For Future Reference P/N 506031-01, Rev. C, 01/2012 Grandview GV230 Wood Stoves Model Grandview™ GV230 A French manual is available upon request. Order P/N 506223-28. Ce manuel d’installation est disponible en francais, simplement en faire la demande. Numéro de la pièce 506223-28.
-
Page 2: Table Of Contents
Paint Curing ................. 18 Burn-In Period ................18 Thank you for selecting a Lennox Hearth Products wood stove as the answer to your home supplemental heating needs. Operating Hints ................18 Door Operation ................18 Starting and Maintaining a Fire ..........19-20... -
Page 3: Important Safety Information
ing season to check for soot and creosote accumulations. IMPORTANT SAFETY AND WARNING Any accumulations over 1/8” thick should be removed by INFORMATION a professional chimney sweep. Do not attempt to burn out heavy creosote accumulations with a hot fire. If large ac- cumulations are occurring, review your burning procedures. -
Page 4: Testing Information
TESTING INFORMATION SELECTING THE PROPER VENTING SYSTEM The appliance is merely one component of a larger system. The other This manual describes the installation and operation of the Grandview™ equally important component is the venting system. This is necessary for 230 non-catalytic wood heater. -
Page 5: Chimney Height Requirements
2’ (610 mm) Min. connected to the appliance probably will not resolve such a problem as the stove or fireplace insert is not the source of negative pressure. Lennox 3' (914 mm) Hearth Products accepts no liability for damages resulting from negative Min. -
Page 6: Clearances To Combustibles
WARNING: In the event that you remove the blower for any reason, make sure a cover plate (available from Lennox Hearth Products) is installed before using the heater. Note: The cover plate is not necessary if a blower has never been installed... -
Page 7: Floor Protection
INSTALLATION CLEARANCES - REFER TO FIGURES 2, 3 AND 4 Alcove or Parallel Installation Corner Installation Alcove or Parallel Installation Alcove Depth 48" (1219mm) MAX. Combustible Wall Combustible Wall † Elbow Stove Floor Protection Stove Floor † † Protection Stove Floor Protection Top View... -
Page 8: Alcove - Floor Protection
Using the r formula: ALCOVE INSTALLATIONS - FLOOR PROTECTION Minimum r-value (per Inch) Specified min. thickness of of listed material thickness When the Grandview™ 230 is installed in an Alcove, the floor protection alternate r-value (per inch) of listed must be a thermally rated non-combustible floor protector meeting or material of alternate material material... -
Page 9: Specifications
Stove Pipe Diameter SPECIFICATIONS - GRANDVIEW™ 230 Single Wall or Double Wall 6” (152 mm) Log Length 16” W x 18” D Max. Product Reference Information (406mm W x 457mm D Max.) Cat. No. Description Ship. Ship. Weight Volume Firebox 17” W x 19” D Max. (432mm W x 483mm D Max.) H8338 Grandview 230 Wood-Burning Stove... -
Page 10: Typical Installation Figures
Single Wall Pipe STAINLESS STEEL LINER Using 6” Diameter Single Wall Connector Pipe Using 6” Diameter Rigid Stainless Steel Liner INSTALL VENTING SYSTEM PER VENT MANUFACTURERS INSTALL VENTING SYSTEM PER VENT MANUFACTURERS INSTRUCTIONS! INSTRUCTIONS! Chimney Chimney Termination Termination Rain Cap Shown with Tubinox™ Stainless Steel Liner components (see Page 28 for ordering information) -
Page 11: Chimney Installation
CHIMNEY INSTALLATION Double Wall Pipe • Install chimney as per manufacturer’s instructions. Some brands of Using 6” Diameter Type L-Vent Connector Pipe pipe may require removal of the spacer ring in the flue collar. Mobile (Manufactured) Home Installation Shown • All horizontal runs of pipe should be as short as possible and are INSTALL VENTING SYSTEM PER VENT MANUFACTURERS required by NFPA No. -
Page 12: Chimney - Wall Pass-Through Requirements
Chimney Connector Systems and Clearances from Combustible System A Walls for Residential Heating Appliances (NFPA 211) Refer to Minimum chimney clearance to brick Figure 9 and combustibles 2 in. (51mm) System A. Minimum 3.5 in. (90 mm) thick brick masonry wall Minimum clearance 12 in. -
Page 13: Leg Installation
If there is hidden damage, notify your for any damaged or missing parts. If there is hidden damage, notify your freight company or Lennox Hearth Products dealer immediately. freight company or Lennox Hearth Products dealer immediately. -
Page 14: Attaching Stove To Manufactured Home Floor
ATTACHING STOVE TO MANUFACTURED HOME FLOOR Stove Back Leg Tie Down Kits (Manufactured [mobile] Homes) Order: H7665 Leg Tie Down Kit, Coastal and Lakeview Legs H5308 Leg Tie Down Kit, Olympic Legs ATTACHING STOVE TO MANUFACTURED HOME FLOOR THE STOVE MUST BE ATTACHED TO THE FLOOR AT NO LESS THAN Tie Down Holes TWO POINTS Figure 12 - Securing Pedestal to Floor... -
Page 15: Outside Combustion Air Kit Installation
OUTSIDE COMBUSTION AIR KIT INSTALLATION Outside Air Kits Order: 1 ea. P/N UZIAD Outside Air Coupler Kit (connects outside air ducting, UZI, to stove) 1 ea. P/N UZI Outside Air Ducting Kit (includes 4” insulated flex x 10’ long) An outside air kit is required in Manufactured (mobile) Home installa- Coupler (attached to existing collar) tions. -
Page 16: Brick And Baffle Board Installation
1. Install firebox bottom brick spacers on both the left and right side of BRICK AND BAFFLE INSTALLATION firebox. The brick spacers are located in the package with the manual. Assure that brick spacers are pushed to each side until they are in CAUTION: Wear gloves during brick installation in case of full contact with the firebox side on each side. -
Page 17: For Mobile Home Installs
FOR MOBILE HOME INSTALLS: POST INSTALLATION CHECKS Be sure the stove is properly grounded Check that all chimney pipe joints are secured and installed according to the Be sure the stove is properly securely manufacturers instruction. fastened to the floor If used, make sure the outside air kit is Be sure the outside air vent is free of properly installed and unobstructed. -
Page 18: Paint Curing
(cat. no. H8159), available Be careful not to abuse door assembly by striking or from all Lennox Hearth Products dealers. slamming it. If the door assembly or glass is broken or damaged, they must be replaced with factory original parts before heater can be safely operated. -
Page 19: Starting And Maintaining A Fire
3. Place a small amount of crumpled paper in front of the firebox and STARTING AND MAINTAINING A FIRE cover it with a few pieces of kindling. 4. Light the paper and allow sufficient time for the kindling to become fully engulfed in flames. -
Page 20: Fuel
5. Once kindling is burning well, larger pieces of wood may be added, FUEL then the door should be fully closed if there was the need to keep it slightly open during start up. This unit is designed and engineered to burn, dry, well-seasoned wood only. 6. -
Page 21: Getting The Most Out Of Your Stove
At this point, you may need to burn the efficiency in a wood-burning appliance is a combination of combustion stove with the draft open for a few minutes to ignite the wood. All Lennox efficiency and heat transfer efficiency. Whether heating your entire home or... -
Page 22: Blower Operation (Optional Kit)
In the event that you remove the blower for any reason, the fire to build up more heat. make sure a cover plate (available from Lennox Hearth NOTE: Turn blower off before opening the door to load the fuel. Products) is installed before using the heater. Excessive rear wall temperatures will result if the stove is burned without the cover plate. -
Page 23: Do's And Don'ts
DO’S AND DON’TS DO NOT: Install or operate this stove before reading this manual. DO NOT: Close the draft beyond the point at which the flames are completely extinguished. DO NOT: Open the stove door without fully opening the draft first. DO NOT: Burn driftwood or wood that has been in salt water. -
Page 24: Maintenance
DOOR HINGES: If door hinges need lubricating, use an anti-seize com- • Do not use chemical glass cleaners as they may damage the gaskets pound (never use oil) available from your Lennox Hearth Products dealer. or painted surfaces. DOOR LATCH: Adjustment Instructions - Remove the right side heat TIPS FOR KEEPING THE GLASS CLEAN shield by loosening the 3 screws located on the back of the stove. -
Page 25: Troubleshooting
TROUBLESHOOTING Problem Solution POOR DRAFT: Extend chimney in length or have the chimney realigned to the proper size flue. Oversized chimneys normally have poor drafts. Remember, the stoves’ draft depend solely on the natural draft of the chimney (See Draft Requirements on Page 4). -
Page 26: Replacement Parts Lists
BLOWER PARTS Cat. No Description H8374 Blower Snap Switch Contact an Lennox Hearth Products dealer to obtain any of these H8375 Blower Blade parts. Never use substitute materials. Use of non-approved parts can result in poor performance and safety hazards. -
Page 27: Accessories
ACCESSORIES - MODEL GRANDVIEW™ 230 DOOR TRIM Item # Cat. No. Model Description H8346 DRTRM-GV230-NKL Door Trim, Nickel PEDESTAL (REqUIRED) Item # Cat. No. Model Description H8347 DRTRM-GV230-BRNKL Door Trim, Brushed Nickel H8343 PED-GV Pedestal, Black BLOWER H8350 BLWR-GV-700-SS Blower OR LEGS (REqUIRED) H8339 LEG-COSTL-BLK... - Page 28 ACCESSORIES - MODEL GRANDVIEW™ 230 Secure Black™ Single Wall Stove Pipe 6” SW Pipe and Accessories Cat. No. Model Description Pc. / Container Security Chimneys™ Pipe 6SWL6 6SWL6 LENGTH 6” X 6” 6SWL12 6SWL12 LENGTH 6” X 12” Tubinox Components 6SWL24 6SWL24 LENGTH 6”...
-
Page 29: Accessories
ACCESSORIES - MODEL GRANDVIEW™ 230 Cat. No. Model Description Pc. / Container Supports (continued) TEE SUPPORT Secure Temp® Factory-Built Chimney 6” Secure Temp ASHT and Secure Temp G-ASHT 6SMA 6SMA GALVALUME ADJUSTABLE TEE SUPPORT (2” TO 6”) Cat. No. Model Description Pc. -
Page 30: Product Reference Information
The Date On Which Your Appliance Was Installed __________________________ Your Dealer's Name _________________________________________________ Lennox Hearth Products reserves the right to make changes at any time, without notice, in design, materials, specifications, prices and also to discontinue colors, styles and products.
