- Page 1 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® 2012 OWNER’S MANUAL Seduce 3180220 La-Z-Boy Spas - Sales & Marketing Division ® 4411 Bee Ridge Road. # 299 Sarasota, Florida 34233 1.800.465.2933 www.lazboyspas.com...
-
Page 2: Table Of Contents
La-Z-Boy Spas. ® La-Z-Boy is a registered trademark of La-Z-Boy Incorporated and is used under license to 2217044 Ontario Inc. La-Z-Boy Spas may make product modifications and enhancements. Specifications may change without notice. International products may be configured differently to meet local electrical requirements. -
Page 3: Safety Information
For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Important Safety Instructions and Warnings Read and Follow All Instructions To reduce the risk of injury, do not permit children to use this product un- less they are closely supervised at all times. - Page 4 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Important Safety Instructions and Warnings Read and Follow All Instructions To reduce the risk of injury, do not permit children to use this product un- less they are closely supervised at all times.
- Page 5 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Warning Sign Warning Sign Must Be Posted – The orange WARNING sign like the one shown is packed with your new spa / hot tub. This sign must be posted in a prominent place in...
- Page 6 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Dealer: ___________________________________________________________________ Date Purchased: ___________________________________________________________________ Company: ___________________________________________________________________ Address: ___________________________________________________________________ Telephone: Installer: __________________________________________________________________ Date Installed: __________________________________________________________________ Company: __________________________________________________________________ Address: __________________________________________________________________ Telephone: Spa: ___________________________________________________________________ Date Delivered: ___________________________________________________________________ Model: ___________________________________________________________________ Color: ___________________________________________________________________ Serial Number: Your unique spa / hot tub serial number is located on a data plate on the back of the equipment access door below the topside control panel.
- Page 7 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ®...
- Page 8 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ®...
-
Page 9: Guarantee
® Introduction ® Your choice of a La-Z-Boy Classic Spa indicates that you are devoted to excellence. The management and staff appreciate your patronage and take pride in the tradition of quality spas / hot tubs that our company represents. -
Page 10: Model Overview

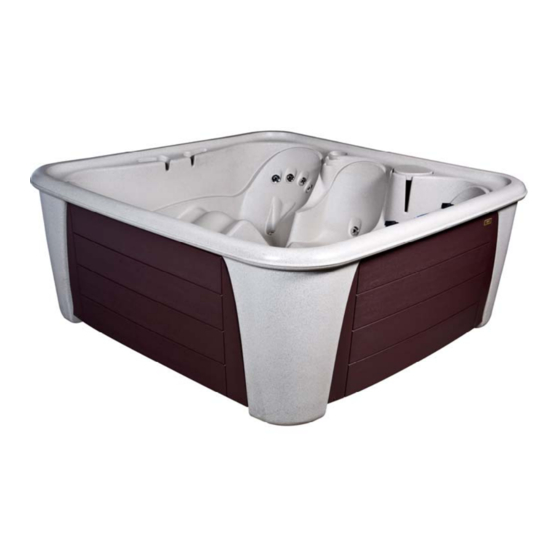

For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Model Overview Seduce - 120V Operation Dimensions: 84”L x 84”W x 35”D Seats: 5 Water Jets: 30 Capacity: 251 USG / 950L Dry Weight: 400 Lbs / 182 kg Filled Weight: 2500 Lbs / 1134 kg... - Page 11 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Model Overview Seduce - 240v Operation Dimensions: 84”L x 84”W x 35”D Seats: 5 Water Jets: 30 Capacity: 251 USG / 950L Dry Weight: 400 Lbs / 182 kg Filled Weight: 2500 Lbs / 1134 kg...
-
Page 12: Location And Installation
For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Location and Installation Proper planning is an important consideration when installing your new spa / hot tub. Site selection is a critical step and requires serious thought. Planning ahead makes the installation process easier. The following information is provided to assist you in site preparations. - Page 13 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Location and Installation Figure 1 – Clearances and Support...
- Page 14 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® The following dimensions can be used to determine the proper location of submerged conduits in concrete slab installations. All dimensions are made from the outside of the spa / hot tub. The topside control panel is shown at bottom of the diagram for reference.
-
Page 15: Electrical Specifications
RESET button. If the GFCI does not reset, • Always use a weatherproof-covered receptacle. unplug the spa and call your local La-Z-Boy Spas dealer for service. DO NOT USE THE SPA! • Receptacle shall be located not less than 5 feet (1.5 m) from and not exceeding 10 feet (3.0 m) - Page 16 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Electrical Specifications 120V to 240 V Conversion (North America 60hZ) Some spa owners choose to have their spa converted from 120V operation to 240V operation for greater energy efficiency. WARNING: The electrical circuit must be installed by a licensed electrical contractor and approved by a local building or electrical inspector.
- Page 17 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Electrical Specifications 120V to 240 V Conversion Continued Step 3. Turn Dipswitch #10 off (down). To run at 240V, dipswitch #7 should be in the on position. To run at 120V, dip switches #7 & 10 are the only ones that should be in the ON position. Adjusting any other dip switches will render the spa inoperable and may cause permanent damage.
- Page 18 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Electrical Specifications 240 V Electrical Installation (North America 60hZ) WARNING: The electrical circuit must be installed by a licensed electrical contractor and approved by a local building or electrical inspector. Failure to comply with state and local codes may result in fire or personal injury and will be the sole responsibility of the spa owner.
- Page 19 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® WARNING WARNING: Disconnect the electrical power before servicing. Before obtaining access to terminals, all supply circuits must be disconnected. Parts with extra low voltage (not exceeding 12V) must be inaccessible to a person in the spa / hot tub.
- Page 20 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Important: Use only a properly sized 50 AMP GFCI Circuit Breaker (240V Operation Only). Installation, including selection of conductor size and type, must be performed by a qualified electrician in accordance with the National Electrical Code or the Canadian Electrical Code, and all federal, state, provincial and local codes and regulations in effect at the time of installation.
-
Page 21: Startup
For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Startup Important: Read these step-by-step startup procedures before using your spa / hot tub. Failure to do so may result in damage to the equipment and may void your guarantee Note: If you are unsure of any of the above startup procedures, please call your local dealer for assistance. - Page 22 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Before Adding Water Before adding water, go through these simple steps now to prevent common issues when setting up your / hot tub for the first time. Verify that the following have all been rechecked.
- Page 23 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Filling Your Spa Now it's time to fill your spa / hot tub with water. Do not turn on the electricity yet until the spa / hot tub is completely filled. To properly fill your...
- Page 24 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Operational Checks CAUTION: Do not turn on any pump until your spa is properly filled with water. Running any pump without water in your spa can cause IMMEDIATE damage, which is not covered by the guarantee! By now you have rechecked your spa / hot tub mechanical connections and filled it with water to about 1”...
- Page 25 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® 6) Plug in the spa or turn on the circuit breaker. Set the desired temperature by using the up or down keys. 7) Push the jet button on the keypad to turn on the low speed pump. Check to ensure water is coming from some of the jets.
-
Page 26: Water Quality
For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Water Quality Note: Perform water quality testing weekly and whenever your water is changed (or when your spa / hot tub is first filled). Once your spa / hot tub reaches 95ºF / 35ºC, properly adjust the chemistry of your spa / hot tub water by testing it with good quality test kits and adjusting levels as need- Figure 10 –... - Page 27 La-Z-Boy Spas strongly recommends the use of our AquaAzure Water Care ® products. It significantly reduces the need for chlorine or bromine and makes managing your spa / hot tub water easy. Ask your La-Z-Boy Spa dealer for further details.
- Page 28 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Water Quality Summary The following table summarizes the desired water quality properties your spa / hot tub should have: Test Desired Value Total Alkalinity 80 to 120 ppm (mg/L) 7.2 to 7.8...
-
Page 29: In-Touch 1000 Controls
® In-Touch 1000 Electronic Control The La-Z-Boy Spas In-Touch 1000 topside controls are mounted front and center and control the pumps, temperature, lighting, and filtration cycles and more. State of the art electronics protected by special weather resistant materials make the In-Touch 1000 Electronic Controls one the most reliable choice in the harshest of climates Figure 11 –... - Page 30 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Pump Press “Pump ” to turn pump on or off, and to shift between low and high speeds. The low-speed will turn off after 4 hours. High-speed will turn off after 15 minutes. Low- speed may run automatically at times, during which it cannot be deactivated from the panel, but high-speed may be operated.
-
Page 31: Color Coordinated Cover
For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Color Coordinated Cover Place the Color Coordinated Cover on your spa / hot tub. Keeping the cover in place anytime the spa / hot tub is not in use reduces the heating time and minimizes operating costs. -
Page 32: Water Management
For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Water Management Below are some answers to common water chemistry questions. pH It is common to have pH fluctuations after adding chemicals to your spa / hot tub or after a party. Let your jets run and give your water time to stabilize. -
Page 33: Frequently Asked Questions
For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Frequently Asked Questions Why Does the Pump run all the Time? Your spa / hot tub can be programmed for constant filtration (see page 35) to keep your water as clean and clear as possible. It is normal for your pump to run this way when programmed to do so. - Page 34 Every other time you drain and refill, you should also replace the filters and wipe down the spa (see page 43). What is the insulation made of? The La-Z-Boy Spas Seduce model includes a polyurethane spray type insulation that is installed in all spaces permitting between the interior shell and exterior walls.
- Page 35 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® How do I bleed air from my system? When draining and refilling your spa / hot tub, the pump may become air locked. -locked pumps stop water from flowing in your spa / hot tub and is easily resolved by bleeding off the trapped air.
-
Page 36: Troubleshooting
For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Troubleshooting If a problem arises, you can check this list for a quick solution. If this does not resolve your problem, please call your local dealer for servicing information. Important: Most problems can be quickly resolved by resetting the GFCI breaker. Try this first before proceeding. - Page 37 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Problem Cause Solution Low/no jet Air lock Bleed air from the system (page 33) pressure Dirty filter Check and clean or replace filter Closed jets Open all jets by turning CCW Closed...
- Page 38 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Problem Cause Solution Water too hot High set Turn down set temperature on topside control panel temperature High Remove the cover from the spa ambient temperature Water will not Thermostat Check and reset to desired temperature...
- Page 39 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Diagnostic Messages Mess Meaning Action Required No message on display. Power has The control panel will be disabled until been cut off to the spa. power returns. Spa settings will be preserved until next power up.
- Page 40 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Diagnostic Messages Mess Meaning Action Required Possible inadequate water, poor If water level is normal, make sure all flow, or air bubbles in detected in pumps have been primed. Press any the heater. Spa is shut down for 15 button to reset.
-
Page 41: Maintenance And Care
For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Maintenance and Care Important: The guarantee on your spa / hot tub and equipment depends on proper water balance (see page 26). In addition, the following maintenance procedures must be followed periodically. - Page 42 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Draining and Refilling Your Spa Figure 16 - Drain Operation 1. Turn off the GFCI breaker or unplug the spa. 2. Remove spa / hot tub cover and allow water to cool down.
- Page 43 For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Jets, All Active Comfort Massage Remove and clean the jets as needed using a high quality plumbing cleanser, water, and a cloth or soft-bristled brush. Light, LED Mood and Safety Drain the spa / hot tub and clean the LED Safety and Mood Light lens as needed using an optical cloth and an eyewear cleaning product specifically designed not to scratch optical surfaces.
-
Page 44: Shutdown / Winterization
For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Shutdown / Winterizing Your spa / hot tub is designed to operate year round. If you plan to leave your spa / hot tub unused for long periods of time in severely cold weather, you should winterize your spa / hot tub to avoid accidental freezing due to a power or equipment failure. -
Page 45: Glossary
For HELP, call La-Z-Boy Spas at 1.800.465.2933. ® Glossary Drain Bib A male garden-hose-style fitting to which a garden hose is connected for draining water. Ground Fault Circuit Interrupter. A special type of circuit GFCI breaker designed to shut power off if there is a leak of electricity detected in the equipment. -
Page 46: Notes
