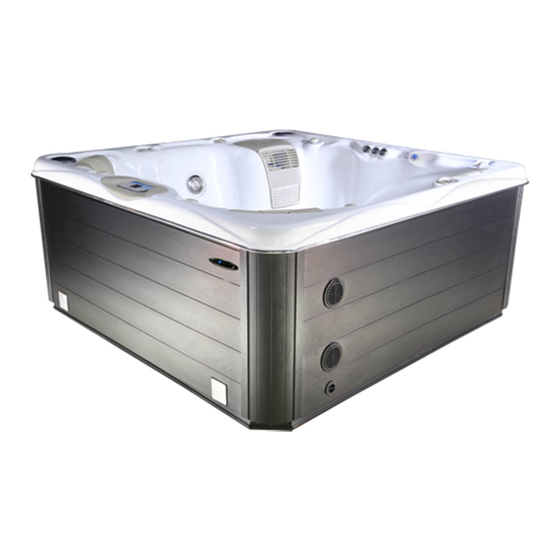

LAZBOY Premier Series Owner's Manual

LAZBOY Premier Series Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

For HELP, call La-Z-Boy
Hot Tubs at 1.800.465.2933.
®
OWNER'S MANUAL
La-Z-Boy
Hot Tubs
®
335 Superior Blvd.
Mississauga, ON L5T 2L6
1.800.465.2933
www.lazboyhottubs.com
Registration of your hot tub is the Lazboy® Hot Tubs Retailer's responsibility. Please verify
with your Lazboy® Hot Tubs Retailer that your hot tub has been registered for your warranty.
Contents subject to change without notice
2020
La-Z-Boy
is a trademark of La-Z-Boy Incorporated and is used under license to 2217044 Ontario Inc.

Advertisement

Table of Contents
loading

Related Manuals for LAZBOY Premier Series

Summary of Contents for LAZBOY Premier Series

  • Page 1 1.800.465.2933 www.lazboyhottubs.com Registration of your hot tub is the Lazboy® Hot Tubs Retailer’s responsibility. Please verify with your Lazboy® Hot Tubs Retailer that your hot tub has been registered for your warranty. Contents subject to change without notice 2020 La-Z-Boy...

  • Page 2: Table Of Contents

    For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® ® La-Z-Boy Premier Hot Tubs Owner’s Manual Table of Contents Safety Information…………………………………………………………………………. 03 Guarantee..……………………………………………………………………………….… 08 Introduction…………………………………………………………………………………. 10 Location and Installation…………………………………………………………………... 11 Electrical Specifications…………………………………………………………………… 12 Startup………………………………………………………………………………………. 15 Water Quality……………………………………………………………………………….. 20 In-Touch 3000 Electronic Control……………………………………………………….. Comfort Zone Massage Control…………………………………………………………..

  • Page 3: Safety Information

    For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® SAFETY INFORMATION SAVE THESE INSTRUCTIONS IMPORTANT USER SAFETY INSTRUCTIONS Your physiological response to hot water is subjective and depends on your age, health, and medical history. If you don’t know your tolerance to hot water, or if you get a headache, or be- come dizzy or nauseous when using your spa / hot tub, get out and cool off immediately.
  • Page 4 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® SAVE THESE INSTRUCTIONS IMPORTANT SAVE THESE INSTRUCTIONS Your physiological response to hot water is subjective and depends on your age, health, and medical history. If you don’t know your tolerance to hot water, or if you get a headache, or become dizzy or nauseous when using your hot tub, get out and cool off immediately.
  • Page 5 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® IMPORTANT ELECTRICAL SAFETY INSTRUCTIONS SAFETY COMES FIRST WHEN INSTALLING & USING THIS ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS MUST ALWAYS BE FOLLOWED! 1. READ AND FOLLOW ALL INSTRUCTIONS. 2. Electrical installation must be completed by a qualified electrician in accordance with all National, Regional and Local Codes and Regulations in effect at the time of installation.
  • Page 6 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® SAFETY SIGN Safety Sign Must Be Posted – The orange WARNING sign like the one shown is packed with your new spa / hot tub. This sign must be posted in a prominent place in close proximity to the installation site immediately upon completion of installation.
  • Page 7 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® Dealer: ___________________________________________________________________ Date Purchased: ___________________________________________________________________ Company: ___________________________________________________________________ Address: ___________________________________________________________________ Telephone: Installer: __________________________________________________________________ Date Installed: __________________________________________________________________ Company: __________________________________________________________________ Address: __________________________________________________________________ Telephone: Spa: ___________________________________________________________________ Date Delivered: ___________________________________________________________________ Model: ___________________________________________________________________ Color: ___________________________________________________________________ Serial Number: Your unique spa / hot tub serial number is located on a data plate outside the cabinet at ground level directly below the topside control panel.

  • Page 8: Guarantee

    For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ®...
  • Page 9 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ®...

  • Page 10: Introduction

    For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® INTRODUCTION ® Your choice of a La-Z-Boy Premier Hot Tub indicates that you are devoted to excel- lence. The management and staff appreciate your patronage and take pride in the tra- dition of quality spas / hot tubs that our company represents.

  • Page 11: Location And Installation

    For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® LOCATION AND INSTALLATION Proper planning is an important consideration when installing your new spa / hot tub. Site selection is a critical step and requires serious thought. Planning ahead makes the installation process easier.

  • Page 12: Electrical Specifications

    For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® ELECTRICAL SPECIFICATIONS Important: Qualified and licensed electricians must perform all electrical hookups. The following specifications must be followed in order to ensure proper per- formance and safety. WARNING Starting an incorrectly wired spa / hot tub could cause severe damage to the mechanical equipment or even bodily harm.
  • Page 13 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® WARNING Disconnect the electrical power before servicing. Before obtaining access to terminals, all supply circuits must be disconnected. Parts with extra low voltage (not exceeding 12V) must be inaccessible to a person in the spa / hot tub.
  • Page 14 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® IMPORTANT: Installation, including selection of conductor size and type, must be performed by a qualified electrician in accordance with the National Electrical Code or the Canadian Electrical Code, and all federal, state and local codes and regulations in effect at the time of installation.

  • Page 15: Startup

    For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® STARTUP Important: Read these step-by-step startup procedures before using your spa / hot tub. Failure to do so may result in damage to the equipment and may void your Guarantee Note: If you are unsure of any of the startup procedures below, please call your local dealer for assistance.
  • Page 16 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® BEFORE ADDING WATER Before adding water, go through these simple steps now to prevent common issues when setting up your / hot tub for the first time. Verify that the following have all been rechecked.
  • Page 17 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® FILLING YOUR SPA Now it's time to fill your spa / hot tub with water. Do not turn on the electricity yet, until the spa / hot tub is completely filled. To properly fill your spa / hot tub: 1.
  • Page 18 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® OPERATIONAL CHECKS CAUTION Do not turn on any pump until your spa is properly filled with water. Running any pump without water in your spa can cause IMMEDIATE damage, which is not covered by the guarantee! By now you have rechecked your spa / hot tub mechanical connections and filled it with water through the pre-filter (if equipped).
  • Page 19 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® CAUTION If water does not flow from the jets after 2 minutes, turn power off at the main panel and bleed air from the system. Turn power on again. Sometimes momentarily turning a pump off/ on will prime it.

  • Page 20: Water Quality

    For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® WATER QUALITY Note: Perform water quality testing weekly and whenever your water is changed (or when your spa / hot tub is first filled). Once your spa / hot tub reaches 95ºF, properly adjust the chemistry of your spa / hot tub water by testing it with good quality test kits and adjusting levels as needed.
  • Page 21 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® HARDNESS LEVEL Once your pH level is proper, test the hardness level of your water with a good quality test kit. Maintain a hardness of 200 to 400 ppm (mg/L). A balanced hardness level helps prevent corrosion and scaling. If the measured hardness level is too low, add calcium chloride to the water.
  • Page 22 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® WATER QUALITY SUMMARY The following table summarizes the desired water quality properties your spa / hot tub should have: Test Desired Value Total Alkalinity 80 to 120 ppm (mg/L) 7.2 to 7.8 Hardness 200 to 400 ppm (mg/L) Bromine...

  • Page 23: In-Touch 3000 Electronic Control

    For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® IN-TOUCH 3000 ELECTRONIC CONTROL The In-Touch 3000 Electronic Control panel uses a paged-style menu system to operate and program your spa. Basic button functions are described next. Figure 11 – Topside Control Panel TEMPERATURE UP SETTINGS KEY TEMPERATURE...
  • Page 24 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® SPA MODE INITIAL START-UP TEMPERATURE CONTROL FUNCTIONALITY AND Before applying voltage to power-up your hot tub, ADJUSTMENT it is very important that you understand the se- quence of events that occur when the system is activated in order that the pump(s) can be primed efficiently and damage to the system can be avoided.
  • Page 25 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® OPTIONS MODE PUMP 1 FUNCTION WATER CARE Press this pad to activate the pump The Water Care section will help you set up your 1st press – low speed (icon rotates slow) ideal filtration and heating settings.
  • Page 26 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® SPA SUBMENUS AUDIO (optional) MODIFYING SCHEDULES The Audio section in the Settings menu gives you To modify a Water Care category, use the lit the option to disconnect or unpair your Bluetooth button to the right (key 5) to open the selected enabled device.
  • Page 27 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® SPA SUBMENUS MAINTENANCE REMINDERS DATE AND TIME The in.k862 keypad will remind you of mainte- Here you can adjust the time format, change the nance required on your spa, like rinsing or clean- year, date and time.
  • Page 28 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® SPA SUBMENUS KEYPAD SETTINGS ELECTRICAL CONFIGURATION In this section you can change the temperature Please do not make changes in this section unit and language. Use the arrow keys and move unless you are a qualified electrician.
  • Page 29 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® STANDBY MODE A press of the SETTINGS key brings you into the menu options. Use the UP and DOWN arrow keys to highlight STANDBY. Press the LIGHT key and the following message will appear. “All pumps off! Press Drain to drain spa”...

  • Page 30: Comfort Zone Massage Control

    For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® COMFORT ZONE MASSAGE CONTROL The Reclina-Seat has its own individual Comfort Zone Massage Control that allows you to turn on the pump and then select the massage techniques similar to those of professional masseuses.

  • Page 31: Premium Aquacoustics Surround Sound Stereo

    For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® PREMIUM AQUACOUSTICS SURROUND SOUND STEREO INK800 KEYPAD BLUETOOTH AUDIO FUNCTIONS PRESS YOUR MODE KEY TO POWER ON/OFF ACCESS YOUR IN.STREAM DEVICE AUXILLARY AUDIO DEVICE PLAY / PAUSE AUDIO BLUETOOTH AUDIO DEVICE NEXT TRACK LAST TRACK VOLUME UP / DOWN...

  • Page 32: Optional Aquaclear Purewater System

    For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® OPTIONAL AQUACLEAR PUREWATER SYSTEM HOW IT WORKS This system combines the benefits of both Ozone and UV-C sanitization utilizing a patented UV Chamber to both inject ozone into the water, mix it and then expose it to powerful UV-C rays, all-in-one.

  • Page 33: Optional I-Command System

    For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® OPTIONAL I-COMMAND 2 SYSTEM The Smart Phone App that is designed as a wireless hot tub control which allows you to pick the water care settings that fit your schedule. Adjust filtration and temperature settings and create the ideal hot tub experience from inside your home.
  • Page 34 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® 2. Installing the spa transmitter If you purchased a spa with in. touch 2 as a standard feature or as an option, note that the spa transmitter will be pre-installed. To ensure proper signal transmission, it may be necessary to change the position of the transmitter once the spa is installed in the yard.
  • Page 35 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® If you need to replace a transmitter or pair your transmitters again, power up the home transmitter and press on its pairing button with a paper clip. The status light of the transmitter will blink yellow.
  • Page 36 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® 5. Strong and Long Range Communication Signal Through their proprietary RF technology, in. touch 2 transmitters emit a strong, stable and long-range signal between your spa and your router (about 3 times longer than regular signal).
  • Page 37 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® USING THE APP On your home network It is possible to access your spa with the in. touch 2 app through your home network. To be able to see your in. touch 2 in the application you need to connect your device to the same router (Wi-Fi network) than the one used to connect your Home Transmitter Go to the Wi-Fi settings section of your mobile device and choose the same network that your spa is connected to (i.e.
  • Page 38 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® Setup your Wi-Fi on your device Before using your application, go to the Wi-Fi section of your device’s settings. Make sure you are connected to your home network. This needs to be the same Wi-Fi pro- vided by the router to which you connected your Home Transmitter.
  • Page 39 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® Find the icon for the in. touch 2 application, then tap on it to open it. The first time you use the application a message will ask you: “in. touch 2” Would like to send you notifications.
  • Page 40 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® Login page Before using your application, you must create an account first and then, you’ll be able to sign in. Your account will give you the opportunity to have access to your spa from any in.
  • Page 41 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® New account creation When you choose to create a new account, you agree at the same time the Terms of Service and the Privacy Policy. You can read them at any time through this link: https://geckointouch.com/legal...
  • Page 42 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® Choose a spa This page displays all the spas detected by your application. To detect your spa, you need to connect your mobile device to the same network to which you connected your Home Transmitter. Once you have done a connection with the spa its name will be saved on this page to allow you to connect to this spa from anywhere.
  • Page 43 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® Home page The main screen gives you access to your accessories, water temperature, water care and settings The app is mirroring the top side control (keypad) over the internet.

  • Page 44: Color Coordinated Cover

    For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® COLOR COORDINATED COVER Place the Color Coordinated Cover on your spa / hot tub. Keeping the cover in place anytime the spa / hot tub is not in use reduces the heating time, minimizes operating costs and prevents acrylic damage due to UV overexposure.

  • Page 45: Water Management

    For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® WATER MANAGEMENT All La-Z-Boy Premier Hot Tubs are equipped with an Ozone Purifier that is highly effective in re- moving unwanted contaminants from the water by means of an electronic oxidation process. If your water quality seems improper, increasing the time your spa filters the water may clear up your problem.

  • Page 46: Frequently Asked Questions

    For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® FREQUENTLY ASKED QUESTIONS Why does the circulation pump run all the time? Your spa / hot tub can be programmed for constant filtration to keep your water as clean and clear as possible. It is normal for your circulation pump to run this way when programmed to do so.
  • Page 47 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® How often should I drain my spa / hot tub? You should drain and refill your spa / hot tub every 1-3 months depending on usage. Every other time you drain and refill, you should also replace the filters and wipe down the spa.
  • Page 48 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® How do I bleed air from my system? When draining and refilling your spa / hot tub, the pump may become air locked. Air- locked pumps stop water from flowing in your spa / hot tub and is easily resolved by bleeding off the trapped air.

  • Page 49: Troubleshooting

    For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® TROUBLESHOOTING If a problem arises, you can check this list for a quick solution. If this does not resolve your problem, please call your local dealer for servicing information. Important: Most problems can be quickly resolved by resetting the GFCI break- er.
  • Page 50 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® Problem Cause Solution Low/no jet Air lock Bleed air from the system pressure Dirty filter Check and clean or replace filter Closed jets Open all jets by turning CCW Closed Open all T-handle shutoff valves on heater and valves pumps ACV* open...
  • Page 51 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® Problem Cause Solution Water too hot High set Turn down set temperature on topside control panel temperature High Remove the cover from the spa ambient temperature Water will not Thermostat Check and reset to desired temperature heat is set too Air open...
  • Page 52 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® ERROR CODES Message Meaning Action Required No message on display. Power has The control panel will be disabled until been cut off to the spa. power returns. Spa settings will be preserved until next power up.

  • Page 53: Maintenance And Care

    For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® MAINTENANCE AND CARE Important: The guarantee on your spa / hot tub and equipment depends on proper water balance. In addition, the following maintenance procedures must be fol- lowed periodically. EVERLAST CABINETS The spa / hot tub consists of a rigid polymer that combines the durability of plastic with the beauty of a wood-looking cabinet.
  • Page 54 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® DRAINING AND REFILLING YOUR SPA Figure 16 - Drain Operation 1. Turn Power Off - turn the power off at the spa consoles and deactivate disconnect switches at the GFCI plug or load center. 2.
  • Page 55 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® ALL ACTIVE COMFORT MASSAGE JETS Remove and clean the jets as needed using a high quality plumbing cleanser, water, and a cloth or soft-bristled brush. LED MOOD AND SAFETY LIGHTS Drain the spa / hot tub and clean the LED Safety and Mood Light lens as needed using an optical cloth and an eyewear cleaning product specifically designed not to scratch optical surfaces.

  • Page 56: Shutdown / Winterizing

    For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® SHUTDOWN / WINTERIZING In the event that you do not wish to use your hot tub year-round, it is very important that you properly winterize to protect against damage from freezing. Your La-Z-Boy® Hot Tubs retailer can perform this service for a nominal fee.

  • Page 57: Glossary

    For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® GLOSSARY Drain Bib A male garden-hose-style fitting to which a garden hose is connected for draining water. GFCI Ground Fault Circuit Interrupter. A special type of circuit breaker designed to shut power off if there is a leak of electricity detected in the equipment.

  • Page 58: Notes

    For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ® NOTES Notes:_______________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________...

  • Page 59: Wiring Diagrams (In.ye)

    For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ®...
  • Page 60 For HELP, call La-Z-Boy Hot Tubs at 1.800.465.2933. ®...
