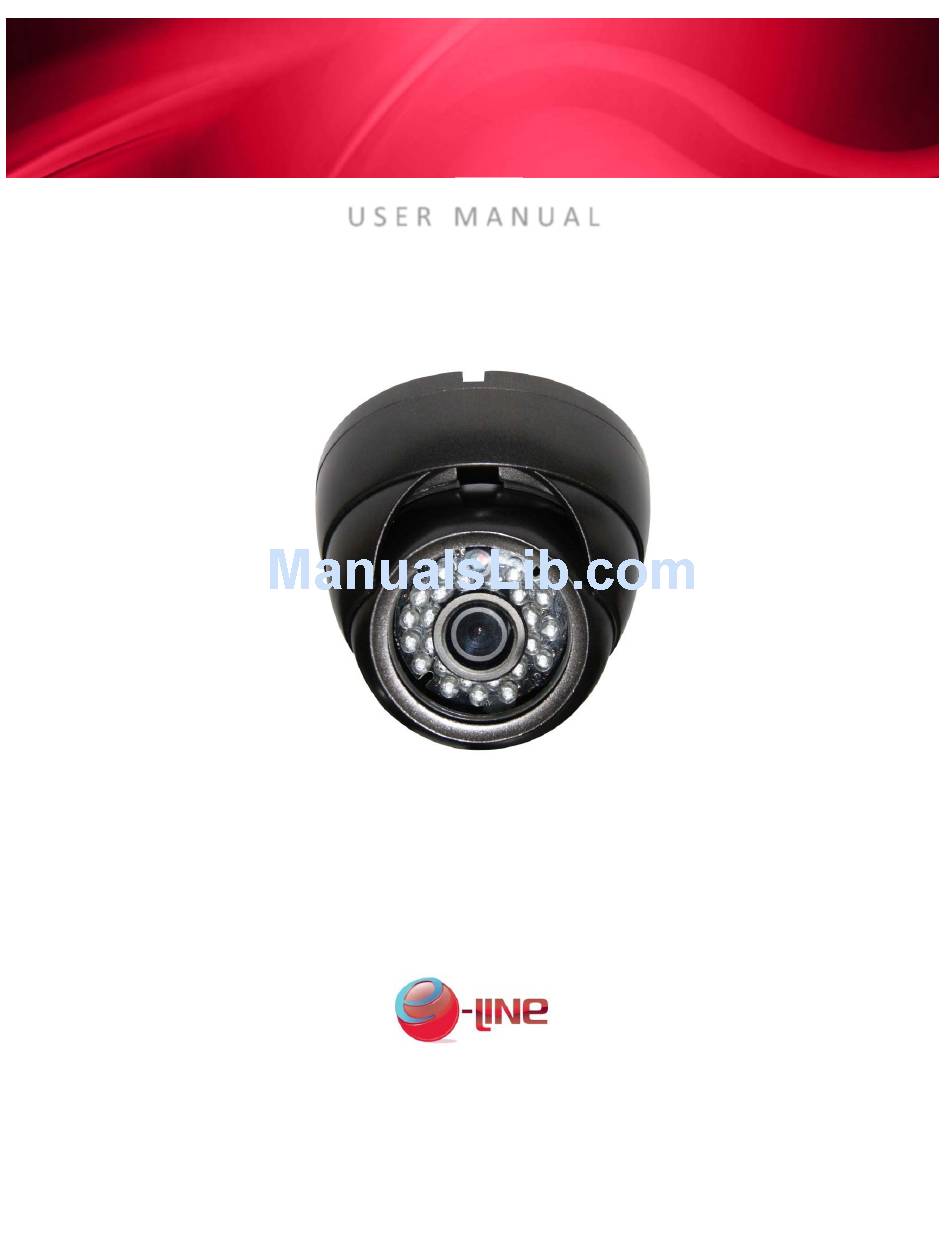

- Page 1 U S E R M A N U A L Indoor/Outdoor IR Vandal Dome ELI‐EVC eLineTechnology.com ...
-
Page 2: Table Of Contents
CAMERA ELI‐EVC / ELI‐EEVC USER MANUAL eLineTechnology.com Table of Contents PRODUCT DESCRIPTION ........................ 3 ............................... 3 EATURES .............................. 3 ODELS SAFETY INFORMATION ......................... 3 FCC STATEMENT........................... 4 PRODUCT COMPONENTS ........................ 4 ............................ 4 OX ONTENTS .................. 5 DDITIONAL ATERIALS EEDED FOR NSTALLATION .......................... 5 RODUCT IAGRAMS INSTALLATION ............................. 5 ............................ 5 OUNTING ............................ 6 ONNECTIONS ........................... 7 DJUSTING THE AMERA .............................. 7 ... -
Page 3: Product Description
CAMERA ELI‐EVC / ELI‐EEVC USER MANUAL eLineTechnology.com Product Description Indoor/Outdoor IR Vandal Dome Congratulations on your purchase of this product. This analog surveillance dome features advanced functions in a compact body and is suited for tight, indoor or outdoor environments. The camera utilizes advanced Sony image sensor technology producing high definition, realistic color. Features Indoor/outdoor vandal dome housing Infrared LEDs for night vision, 20M to 30M range (model dependent) 3‐Axis bracket for versatile positioning of the lens 12V DC Additional features based on model Models Model Number Resolution Lens Features ELI‐EVC‐48‐4IR 480 TVL 3.6mm Fixed 20M IR Range, Low Illumination ELI‐EVC‐60‐4IR 600 TVL 3.6mm Fixed 20M IR Range, Low DWDR, Illumination, OSD, DNR ELI‐EVC‐65‐312IR 650 TVL 2.8~12mm Varifocal ... -
Page 4: Fcc Statement
CAMERA ELI‐EVC / ELI‐EEVC USER MANUAL eLineTechnology.com 14. Keep the camera cable away from the lighting cable. Failure to observe this may cause noise. 15. When the camera is used near a TV/radio antenna, strong electric field, or magnetic field (near a motor or a transformer), images may be distorted and audible noise may be produced. In such a case, route the camera cable through specialized steel conduit tubes. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. FCC Statement THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. This equipment generates and uses radio frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, it may cause interference to radio and television reception. It has been type tested and found to comply with the limits for remote control devices in accordance with the specifications in Sub‐Parts B and C of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by unplugging the equipment, try to correct the interference by one or more of the following measures. Reorient the antenna of the radio/TV experiencing the interference. Relocate the equipment with respect to the radio/TV. Move the equipment away from the radio/TV. Plug the equipment into an outlet on a different electrical circuit from the radio/TV experiencing the interference. If necessary, consult your local dealer for additional suggestions. NOTE: Modifications to this product will void the user’s authority to operate this equipment. Product Components Box Contents Dome Camera Quick Start User Guide Mounting Screws ... -
Page 5: Additional Materials Needed For Installation
CAMERA ELI‐EVC / ELI‐EEVC USER MANUAL eLineTechnology.com Additional Materials Needed for Installation Tape for protecting connections Power supply 12VDC 350mA Product Diagrams Installation Mounting 1. Unscrew the mounting base from the camera by twisting the mounting ring counter‐clockwise. This releases all four parts of the dome (base, ring, hood, and camera). Carefully remove the base from the other parts. Page | 5 ... -
Page 6: Connections
CAMERA ELI‐EVC / ELI‐EEVC USER MANUAL eLineTechnology.com 2. Use the mounting base as a guide to mark the locations for screw and cable management holes on the mounting surface. Drill a starter hole at each marked location. Drill a cable management hole in the center at least 14mm in diameter to permit the camera’s cable to be inserted through the mounting surface. If necessary, insert drywall anchors into the screw holes. 3. Place the mounting base into location. Insert a screw through each of the screw holes in the base and into the mounting surface and then tighten each screw until the base is secure. 4. Feed the camera’s cable through the access hole; position the dome onto the mounted base, and twist the mounting ring clockwise to secure loosely. This will allow you to adjust the position of the hood and the camera. After the camera has been adjusted, tighten the mounting ring securely. Caution: Once power is supplied, do not remove the camera from the mounting base due to risk of electrical shock. Connections 1. Use a BNC connector to connect the camera’s VIDEO OUT to the monitor’s (or DVRs) VIDEO IN. Use the following recommendations for cable types and distances: Maximum Cable Length Type of Coaxial Cable RG‐59/U RG‐6/U RG‐11/U RG‐15/U Recommended Max 250 M 500 M 600 M 800 M Cable Length 825 ft 1650 ft 1980 ft 2640 ft 2. The power is DC 12V (+/‐ 10%) / 350mA. Use the following recommendations for cable types and distances: ... -
Page 7: Adjusting The Camera
CAMERA ELI‐EVC / ELI‐EEVC USER MANUAL eLineTechnology.com Adjusting the Camera 1. To adjust the camera angle, loosen the mounting ring just enough to move the camera but not too much as to make the mount unsecure. 2. After the lens and the hood are into position, tighten the mounting ring. Focusing On models with a varifocal lens, you may adjust the focus and zoom by turning the screws on the sides of the camera. 1. The screw on the left will adjust the lens focus. 2. The screw on the right will adjust the lens zoom. 3. Focus to the depth of field that is most important. Page | 7 ... -
Page 8: On-Screen Display (Osd) Settings
CAMERA ELI‐EVC / ELI‐EEVC USER MANUAL eLineTechnology.com On‐Screen Display (OSD) Settings On the OSD control device on the cable, hit the center button to activate the OSD settings. The menu as below will appear. Use the button by moving up/down/left/right and depressing as ‘Enter’ to change OSD settings. For further definition of each setting see the eLine web site under Support. http://www.elinetechnology.com. Lens ELC DC Exposure HBLC D‐WDR BLC HLI/D‐WDR AGC OFF LOW MIDDLE HIGH 3D DNR OFF LOW MIDDLE HIGH SENSE‐UP AUTO OFF X2 X4 X8 X16 X32 X64 X128 X256 X512 EXIT COLOR WB MODE ATW MANUAL AWC>PUSH AWC R‐Y‐GAIN O‐256 B‐Y‐GAIN 0‐256 EXIT DAY & NIGHT D&N MODE AUTO COLOR B&W EXT FUNCTION MIRROR ON OFF SHARPNESS 0‐30 LSC ... -
Page 9: Specifications
CAMERA ELI‐EVC / ELI‐EEVC USER MANUAL eLineTechnology.com Specifications Feature Specification Minimum Illumination 0.001 Lux / 0 Lux (with IR LED ON) S/N Ratio More than 50dB Scanning System 2:1 Interface Synchronous System Internal, Negative sync Auto Electronic Shutter NTSC: 1/60s~1/100,000s / PAL: 1/50s~1/100,000s Gamma Characteristic 0.45 IR Distance Model Dependent 20 Meters (with ȼ5x24 pcs Infrared LED) 30 Meters (with ȼ5x36 pcs Infrared LED) Video Output 1Vpp. 75Ω Auto Gain Control Auto Power/Current Model Dependent DC 12V (+/‐10%) 350mA – Fixed Lens DC 12V (+/‐10%) 500mA – Varifocal Lens Dimension Model Dependent 94(C) x 69(H) mm – Fixed Lens 131(C)x93(H) mm – Varifocal Lens Weight Model Dependent 400g – Fixed Lens 800g – Varifocal Lens Storage Temperature ‐20°~60°C RH 95% Max ... -
Page 10: Warranty Repair/Replacements
CAMERA ELI‐EVC / ELI‐EEVC USER MANUAL eLineTechnology.com Blurred Image Check the dome cover for dirt or imperfections Check the focus to make sure adjusted correctly Check the lens of the camera to make sure it is clean. Only use a dry, clean lens cloth to clean the lens. Never touch with your fingers. Warranty Repair/Replacements Subject to the terms of the limited warranty in effect at the time of purchase, e‐Line will repair or replace a product that fails to meet the terms provided, within the product’s warranty period. eLine reserves the right to replace any product under warranty with new, refurbished or remanufactured product. For product purchased directly from eLine by a dealer or an integrator, the warranty period starts from either a) the date of shipment from eLine ’s facility (point of origin) or b) the manufacturer’s date code (if the shipment date is unknown). Except for software products (which shall be treated as if purchased directly e‐Line for purposes of determining the start of the warranty period as set forth in the immediately preceding sentence), for product purchased from an authorized eLine distributor by a dealer or an integrator, the warranty period starts from the date the product is purchased by the dealer or integrator. Warranty periods vary based on product category and type of equipment, as shown in Table 1 entitled “Product Warranty Periods” below. We will return equipment or ship replacement equipment via the same incoming ship method at no additional charge. If you request a different return ship method, we will charge for the full shipping cost. Product Warranty Periods Table 1 lists warranty durations for most eLine equipment, sorted by category. Warranty periods start as set forth under the heading “Warranty Repair/Replacements” above. For items that do not appear in Table 1, contact Customer Service or your sales rep for the applicable policy. Product Type Product Warranty Exceptions eLine Cloud Cameras 2 years PTZ Cameras – 1 year Other eLine 2 years ‐‐‐‐ For help or more information on setup, please visit http://elinetechnology.com Or contact eLine support provided by 2D Electronics at 303.938.1133 support@2delectronics.com ...
