Summary of Contents for E-line ELI-ANPTZ-56-37R

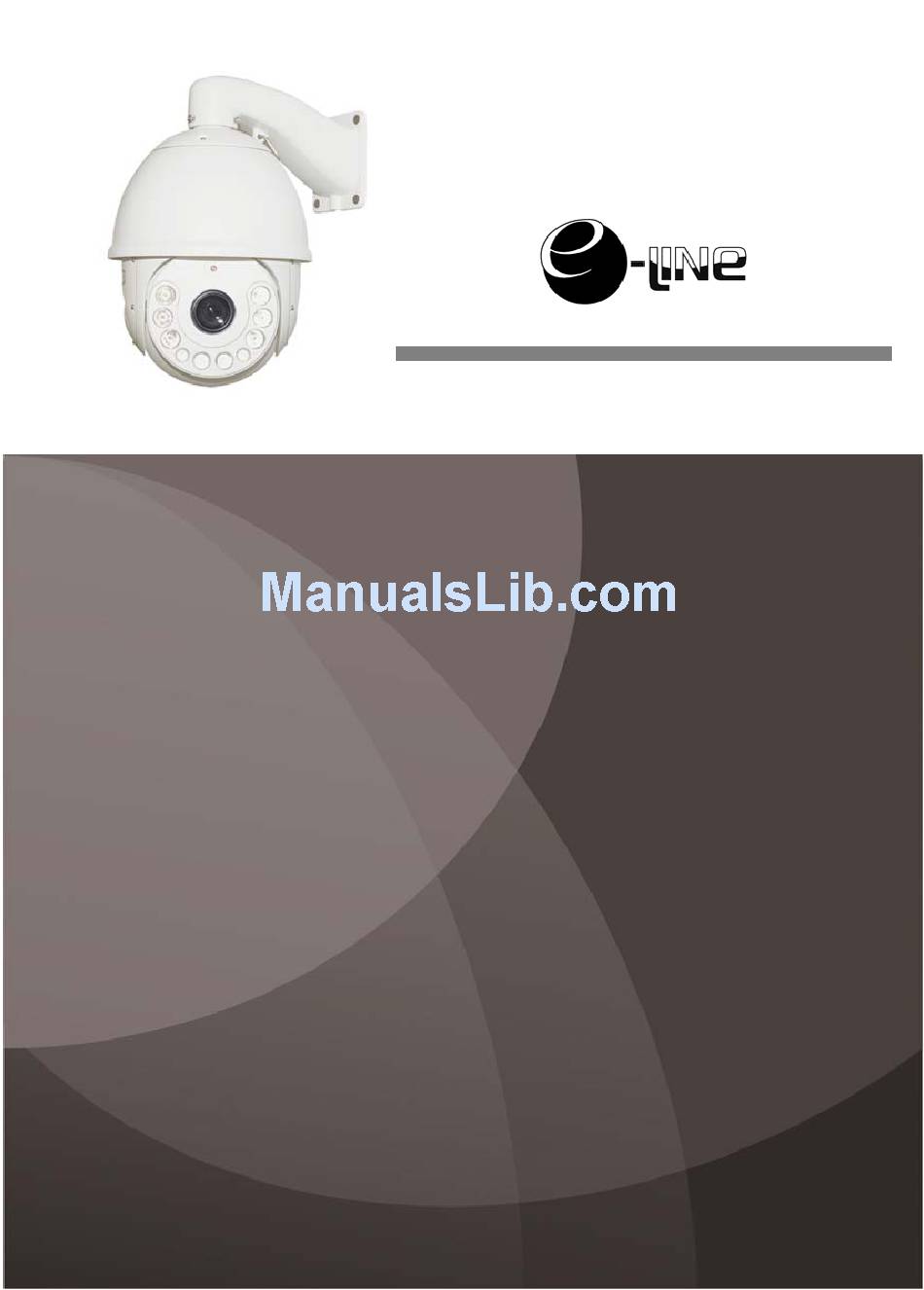

  • Page 1  ...
  • Page 3 Welcome Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact us. This manual is applicable to Speed Dome. This manual may contain several technically incorrect places or printing errors, and the content is subject to change without notice. The updates will be added into the new version of this manual.

  • Page 4: Safety Instruction

    Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions”: Warnings: Neglecting any of the warnings may cause serious injury or death. Cautions: Neglecting any of the cautions may cause injury or equipment damage.
  • Page 5 5. Do not aim the camera at the sun or extra bright places. A blooming or smear may occur otherwise (which is not a malfunction however), and affecting the endurance of CCD at the same time. 6. Please use the provided glove when open up the dome cover, avoid direct contact with the dome cover, because the acidic sweat of the fingers may erode the surface coating of the dome cover.

  • Page 6: Table Of Contents

    Catalog Chapter 1 Brief Introduction ...................... 5 1.1 Description ........................5 1.2 Functions ........................6 Chapter 2 IR Speed Dome Installation ................10 2.1 Install Preparation ...................... 10 2.2 Installation ........................11 2.3 Default Setting ......................12 2.4 DIP SWITCH SETTING .................... 12 2.5 Alarm Wire Diagram ....................

  • Page 7: Chapter 1 Brief Introduction

    Chapter 1 Brief Introduction 1.1 Description Speed Dome is new products model which features built-in Auto focus camera module. Inner Pan/tilt integrated with digital decoder which support line fault diagnosis, and 3D position function. Speed dome set up the precision sensitive and stability motor gives camera no shake in any level speed. Speed Dome is via digital control with precis simple drive system.

  • Page 8: Functions

     Heat balance device built in, fog proof.  Precise motor device which sensitively and steady. The accuracy deviation >0.1, no picture shake.  Support online upgrade , reduce the service cost  Support 3D Positioning Function  Easy setting for DIP and Protocol ...
  • Page 9 1 to 40, with the corresponding speed ranging from 1°/second to 40°/second.  Presets:Each of the user-definable presets can be programmed to use pan, tilt, camera settings and other settings. When preset is called, the dome will automatically move to the defined position. User is allowed to add, modify, delete and call each preset.
  • Page 10 enabled/disabled by the menu.  Backlight Compensation (BLC):If a bright backlight is present, the subjects in the picture may appear dark or as a silhouette. Backlight compensation (BLC) enhances objects in the center of the picture. The dome uses the center of the picture to adjust the iris. If there is a bright light source outside of this area, it will wash out to white.
  • Page 11 Following is the Diagram: Display Means North North East East South West West West East South South North  485 Fault Detect: The speed dome will display the fault case when there is some fault between control side and receiver side. For example: The fault of camera, motor,communication and IR etc. will display on screen with some special characters.

  • Page 12: Chapter 2 Ir Speed Dome Installation

    Chapter 2 IR Speed Dome Installation 2.1 Install Preparation 1. Basic Requirement Before the installation, please read following caution information: 1) Installation and maintenance should be carried out by professional personnel as per relative regulations. All electrical work must obey the latest electrical regulations, fire regulations and relevant regulations.

  • Page 13: Installation

    2)Following is recommend Max distance for 12VDC. Please refer the Appendix 3 Wire Gauge&Transmission Distance Cable Diameter Max Distance(M/ft) 0.75mm 6m(20ft) 9m(30ft) 1.5mm 12m(40ft) 15m(50ft) 3. Please keep the product package well Please keep the product package well, You can send the speed dome to factory with that package if there is any problem need to service.

  • Page 14: Default Setting

    2.2.4 2.2.5 2.2.6 2.3 Default Setting Protocol: Auto Match Address: No.1 Baud rate: 2400-N-8-1 120Ω ohmic resistance： 2.4 DIP SWITCH SETTING Before install the speed dome, please configure the protocol, baud rate, and speed dome address. The Dip switch is on side of speed dome( Analog speed dome As pic 2.4.7) or in the connected cover( IP speed dome as pic 2.4.8) 2.4.7 Diagram of Analog Speed Dip Switch Pic 2.4.8 Diagram of IP Speed Dome Dip Switch...

  • Page 15: Alarm Wire Diagram

    1) Protocol Rule Protocol SW1-1 SW1-2 SW1-3 Auto Match/PELCO-D PELCO-P Save …… …… …… 2) Baud Rate Rules Baud Rate SW1-4 SW1-5 Auto Match/1200BPS 2400BPS 4800BPS 9600BPS 3) 120Ω ohmic resistance Configuration SW1 is the 120Ω ohmic resistance of RS485. Please configure it as the 《Appendix 2 RS485 BUS Connection》.

  • Page 16: Chapter 3 Installation Description

    Chapter 3 Installation Description 3.1 Bracket Dimension Wall Mount Dimension Ceiling Mount Dimension Pole Mount Dimension Corner Mount Dimension 3.2 Wall Mount 1）Accessories Installation Wall Mount Bracket Washer&Screw Cap eLineTechnology.com...

  • Page 17: Ceiling Mount Bracket Installation

    2）Mount Step 3.3 Ceiling Mount bracket Installation 1）Accessories Installation Ceiling Mount Bracket ( length Optional) Washer&Screw Cap 2）Mount Step 3.4 Pole Mount 1）Accessories Mount Wall Mount bracket Pole Mount bracket Fastener Washer,Screws&crew Cap eLineTechnology.com...

  • Page 18: Corner Mount

    2）Mount Step 3.5 Corner Mount 1）Accessories Mount Corner Mount bracket Washer,Screws&crew Cap Wall Mount bracket 2）Mount Step eLineTechnology.com...

  • Page 19: Chapter 4 Operation

    Chapter 4 Operation 4.1 POST( Power On Self Test) The Speed Dome Power on, execute the self test. The steps: System preheat( If it is necessary), camera test,Pan test, Tilt test. The Self Test display as pic 5.1.1, it is takes 40 sec. Note: If the speed dome address is unavailable, the address display the software address, otherwise it will display the address which configured by Dip Switch, The operation of speed dome software address, please referenced by chapter5.3.6.

  • Page 20: Special Function Preset

    PRESET: The Speed Dome support 255 presets. The setting and operation, please reference by  Chapter 5.3. 4.3 SPECIAL FUNCTION PRESET Call Preset Function Call Preset Function Limited Direction of Auto Flip UP,DOWN,LEFT,RIGH T Setting Back to Zero Point Remote Reboot Preset Scanning 1 Call Menu Preset Scanning 2...

  • Page 21: Screen Character Prompted

    4.4 Screen Character prompted The speed dome supply the screen character prompted for easily to operation.It can display the multiples of lens,azimuth angle,alarm,Date and title of the presets.  Lens Multiples: Display the format for Z XXX,XXX is multiples of lens. ...

  • Page 22: Chapter 5 Menu Guide

    Chapter 5 Menu Guide Menu of Speed dome as follows: Remarks:If the menu have many pages need to display,customer can operate "Down" of arrow keys for turn to next pages.There maybe difference in the camera module function.Different camera module's function may be display on the menu in difference.Please prevail in kind. eLineTechnology.com...

  • Page 23: Menu Operation Guide

    5.1 Menu operation guide Call preset point No.95 to open the menu via controller keyboard,DVR,client software.Please refer to 5.1.1.For example,If you want to open the camera menu.you could enter PTZ Housing mode according to at front of panel with "PTZ Housing"button,then press "Video"button,Finally press No.keys "0 9 5" or press No.keys "0 9 5"...

  • Page 24: Main Menu And System Information

    Keyboard special definition key as below : “←”：Delete one byte “┘”：Confirmation input and return “_”：Input Space "ABC/abc/Pinyin"：Input method select button. Pic 5.1.1 input method When the input method is spell type,it will display the selected byte in third lines.The selected cursor move to the byte you need,press <OPEN>...

  • Page 25: Function Setting

    5.3 FUNCTION SETTING 5.3.1 DISPLAY SETTING "DISPLAY INFORMATION SETTING" menu has two pages,As shown 5.3.1.Each menu item can be selected independently continuous display of the time,each items displays a fixed location in the video on the screen,the display time interval is 1sec,3sec,6sec,also can select normally open or close."Alarm Indication"...

  • Page 26: Camera Setting

    5.3.3 Regional Limit Pic. 5.3.4 Timer setting 5.3.2 Timer setting As shown 5.3.5,Move the keyboard joystick left and right or press the left and right button on front of DVR panel for change the menu items.Move the keyboard joystick up and down or press the up and down button on front of DVR panel for change the menu items.Optional Timer 1-8.Timing action include 1-8 presets,Pattern scan 1-4,Cruise scan 1-8,Horizontal scan,Linear sweep tow points,,etc.The customer can set start time and end time.
  • Page 27 Parameters special meaning and Setting Method as follows: Focus Mode:Optional Automatic,Hand and Semi-automatic.In the automatic focus mode,speed  dome will automatic adjust the focus of camera module,keeping clearly image.Control keyboard by hand or "focus+" and "focus-" button on front of DVR panel can not adjust the far or near of the focus.When not enabled auto-focus,it need manual focus.When select semi-automatic focus,speed dome will auto-focus in movement or zoom.The speed dome will fixed focus when it stop movement or zoom.The default for auto-focus.
  • Page 28 Image Flip: You could set display the picture on the screen up,down,left and right reverse. Image Mirror:The picture on the screen will reverse by right and left via this function Shake Reduction Level:Shake Reduction have closed,high,medium and low four options,Closed for don't start shake reduction function;...
  • Page 29 left or right. Proportional Zooming: when open proportional zooming function,the PTZ Housing will change the  zoom according to zoom magnification in keyboard control state.When the zoom magnification is increased,the speed of speed dome will automatic change slowly;When the zoom magnification decreases,the movement speed of speed dome will automatic change to fast.In order to get the good tracking effect.If closed this function and in the higher magnification,it is difficult for tracking slow target and stop target.
  • Page 30 1. Presets Setting Enter "Presets Setting" Menu,Shown in Fig 5.3.10. Preset means the unit can monitor the zone among the specified presets。You could select Cruise Numbers from 1 to 8,the number of presets,speed or time through moving control keyboard joystick left and right or press "left"...
  • Page 31 4. Partern Scan Enter"Partern Scan"Menu,Shown in Pic.5.3.13. Partern Scan means that user operation series action records inside the speed dome.Such as horizontal moving,Camera module zooming,,etc. Pic. 5.3.13 Partern scan setting Pic.5.3.14 Advance Setting  Partern scan numbers:Option pattern scan numbers is from 1 to 4. ...
  • Page 32 5.3.7 ALARM SETTING Enter "ALARM SETTING" Menu,Shown in Pic.5.3.15 PIC.5.3.15 ALARM SETTING  Alarm Channel:Alarm channel can select the Number from 1 to 4. Alarm Switcher:Selecting open or closed in alarm switcher.   Alarm output channel: Selected No.1 or No.2 channel in alarm output channel. ...
  • Page 33  IR switch mode:IR switch mode can select IR open,closed,timing or auto. Photosensitive threshold: Photosensitive threshold can select high,medium,low grades.   White Light Protection Mode:It can select high,medium and low three options,it can improve the white brighter performance,in order to automatic open the IR LED. ...
  • Page 34 5.8.10 Application Enter "Application" Menu.Shown in Pic.5.3.18. Pic.5.3.18 Application Pic.5.3.19 Communication check  Communication Log:You could select open closed.When speed dome have problem,Customer could send the communication Log to our factory engineer for analysis.  Communication Test: Press <OPEN> Button for enter communication test,it is need software to support it.

  • Page 35: Privacy Mask

    Pic.5.3.22 Integral self-checking Pic.5.3.23 IR self 5.3.11 Privacy Mask Enter "Privacy Mask" Menu,Shown in Pic.5.3.24.(Remarks:some module camera don't support this function) Pic. 5.3.24 Privacy Mask Pic. 5.3.25 Preset setting  Mask Number: Mask number can select from 1 to 24. ...
  • Page 36  Preset Number:Preset Number can select the number from 1 to 48. Preset Tile: Press <OPEN> button for editing the tile of preset.See 5.3.1 Area tilt setting as your  reference.  Setting Preset: Press <OPEN> button for setting preset.See Pic. 5.3.1 Area tilt setting as your reference.

  • Page 37: Lightning And Surge Protection

    Lightning and Surge Protection This product adopts Ceramic Gas Discharge Tube and TVS-class lightning protection technology to effectively prevent such pulse signal damage caused by instantaneous lightning under 4000W or electric surge. But, for outdoor installing, on the premise of ensuring electric safety, necessary protective measures should be taken according to practical situation: ...

  • Page 38: Appendix Rs485 Bus-Mastering Knowledge

    Appendix RS485 Bus-mastering knowledge RS485 Bus-mastering basic characteristics  According to RS485 bus-mastering standard,RS485 bus for half-duplex communication bus,its maximum load capacity is 32 payload(including main controller and controlled set)  RS485 bus-mastering transmission distance. When you use Twisted pair with 0.56mm(24AWG) for communication cable,The baud rate is different.The Max.

  • Page 39: Appendix Simple Trouble Shooting Table

    For this case,we suggest you add one RS485 distributor.It can solved all problem.Avoid production problems and improve communications reliability. Appendix Simple Trouble Shooting Table Problems Possible causes solutions Power supply adaptor damaged or Power supply Replace not sufficient No action, no picture Wrong contact of power when power is switched Correct...

  • Page 40: Appendix Iii The Relationship Between Wire And Distance

    Power supply not sufficient Replace or Power cables too long Abnormal self-check Power On again Bad contact of control lines Remove IR intelligent high-speed dome out of control The host operations have a Power up the host again problem the load is too much ,the Increase yards distributor distance is too far Focus out of control...

  • Page 41: Appendix Iv Awg Sheet At Home And Abroad

    21(6) 34(10) 55(16) 139(42) 20(6) 32(9) 51(15) 129(39) 18(5) 30(9) 47(14) 120(36) 17(5) 28(8) 44(13) 113(34) 16(4) 26(7) 42(12) 106(32) 15(4) 25(7) 39(11) 100(30) 14(4) 23(7) 37(11) 95(28) 14(4) 22(6) 35(10) 90(27) Appendix IV AWG sheet at Home and Abroad Metric bare wire dia.
  • Page 42 0.710 0.3958 0.750 0.4417 0.800 0.5027 0.900 0.6362 1.000 0.7854 1.250 1.2266 1.500 1.7663 2.000 3.1420 2.500 4.9080 3.000 7.0683 eLineTechnology.com...

  • Page 43: Appendix V Address Coding Table

    Appendix V Address Coding Table SW2 Address Setting Add 33 ON OFF OFF OFF OFF ON OFF OFF ON OFF OFF OFF OFF OFF OFF OFF 34 OFF ON OFF OFF OFF ON OFF OFF OFF ON OFF OFF OFF OFF OFF OFF ON ON OFF OFF OFF OFF OFF OFF 35 ON ON OFF OFF OFF ON OFF OFF OFF OFF ON OFF OFF OFF OFF OFF...
  • Page 44 SW2 Address Setting（Continued） Add ON OFF OFF OFF OFF OFF ON OFF 97 ON OFF OFF OFF OFF ON ON OFF 66 OFF ON OFF OFF OFF OFF ON OFF 98 OFF ON OFF OFF OFF ON ON OFF ON ON OFF OFF OFF OFF ON OFF 99 ON ON OFF OFF OFF ON ON OFF 68 OFF OFF ON OFF OFF OFF ON OFF 100 OFF OFF ON OFF OFF ON ON OFF...
  • Page 45 SW2 Address Setting（Continued） Add 161 ON OFF OFF OFF OFF ON OFF ON 129 ON OFF OFF OFF OFF OFF OFF ON 162 OFF ON OFF OFF OFF ON OFF ON 130 OFF ON OFF OFF OFF OFF OFF ON 163 ON ON OFF OFF OFF ON OFF ON 131 ON ON OFF OFF OFF OFF OFF ON 132 OFF OFF ON OFF OFF OFF OFF ON...
  • Page 46 SW2 Address Setting（Continued） Add 225 ON OFF OFF OFF OFF ON ON ON 193 ON OFF OFF OFF OFF OFF ON ON 194 OFF ON OFF OFF OFF OFF ON ON 226 OFF ON OFF OFF OFF ON ON ON 227 ON ON OFF OFF OFF ON ON ON 195 ON ON OFF OFF OFF OFF ON ON 196 OFF OFF ON OFF OFF OFF ON ON...
