Summary of Contents for Belkin Bob

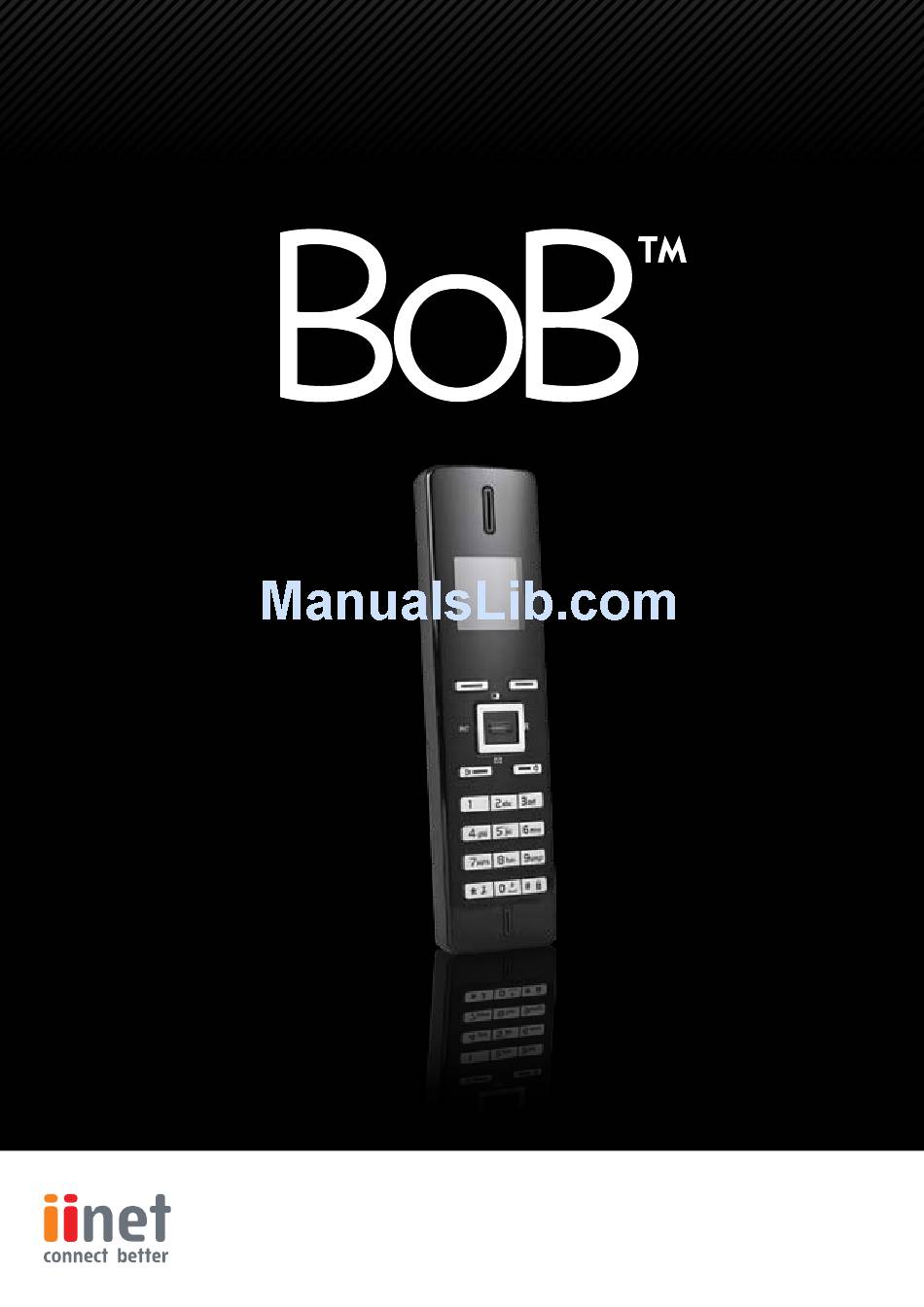

- Page 1 handset...
-
Page 2: Before You Begin
Before You Begin Before operating the handset, please read these instructions carefully. For first-time charging, charge the batteries for a minimum of 16 hours before initial use. Intended Purpose: This product is intended to be connected indoors to an analogue telephone line. The phone was constructed in accordance with the Digital Enhanced Cordless Telecommunications (DECT). -
Page 3: Table Of Contents
Chapter 2 : Installation Pg. 02 Installing the batteries Pg. 0 Keys / LED Pg. 03 Supplied Charger Pg. 03 Chapter 3 : Getting to know your BoB handset Pg. 04 Keys / LED Pg. 04 Display (LED) Pg. 04 Battery Indicator Pg. - Page 4 Pg. 13 Deleting numbers from the call list Pg. 13 Chapter 7 : Troubleshooting Pg. 14 Chapter 8 : Specifications Pg. 15 Chapter 9 : Declaration of Conformity Pg. 16 Belkin International, Inc. Limited Year Product Warranty Pg. 16...
-
Page 5: Chapter 1 : Safety Advice
• The equipment is not to be used in a damp room Never use normal (e.g. bathrooms) or rooms where there is a lot Clean your BoB handset with a slightly damp cloth of dust. non-rechargeable or with an anti-static cloth. Never use cleaning •... -
Page 6: Chapter 2 : Installation
* Charging indicator will only light when BoB handset is seated inside supplied BoB handset charger and not when seated inside BoB - 4 port wireless VoIP router. Page ... -
Page 7: Keys / Led
Left / Internal Key INT OK Key Left Menu key Supplied Charger* Charging indicator Handset charging cradle * Please note: BoB - 4 port wireless VoIP router also has an in-built charging dock which is able to charge your BoB handset. Page 3... -
Page 8: Chapter 3 : Getting To Know Your Bob
Chapter 3 : Getting to know your BoB Handset Display (LCD) The actual function is displayed as an icon or text directly above the display keys. Phone Mute OK Icon line Confirm Back Text lines Menu “No” Key Delete... -
Page 9: Chapter 4 : Bob Tm Handset Operation
After finishing your call, press the on hook key base • Press to confirm unit to hang up. • On the back of the BoB router, press the ‘register Calling a programmed number from the additional handsets’ button phone book •... -
Page 10: Receiving A Call
Chapter 4 : handset operation Note Receiving a Call ‘Out of range’ warning During an internal or external incoming call, the If the handset is out of range of the base unit, a handset will start to ring. You can temporarily disable warning signal will sound. -
Page 11: Locating A Misplaced Handset
‘Ringer volume’ is selected If you cannot find the handset, briefly press the • Press to confirm. “locate handset” button on the back of BoB (BoB - 4 port wireless VoIP router). • The current volume is shown and audible. -
Page 12: Turning Key Click On/Off
Chapter 4 : handset operation Turning key click on/off Auto answer You can set the handset to make a beep whenever When there is an incoming call and the handset is you press a key. on the base, the phone automatically takes the line when lifted. -
Page 13: Default Reset (Handset Reset)
Chapter 4 : handset operation Note Default reset (Handset reset) Set the alarm • Press the left menu key under You can restore all handset settings back to default and erase all phonebook, call log, VIP list and redial • Press the up or down key repeatedly entries. -
Page 14: Phone Book
Chapter 4 : handset operation Looking up a number in the View name and number of an entry in the phone book phone book • Press the right menu key • Press the phonebook option key • Enter the first letter of the desired name via the alphanumeric keypad or press the up or down key •... -
Page 15: Tools
Chapter 4 : handset operation Tools Changing the PIN code (handset system PIN code) Appointment Certain functions are only available if you know the PIN code of the base. You can set 5 appointments or reminders which you can give a name and an alarm by date and time. The PIN code has 4 digits. -
Page 16: Chapter 5: Additional Hansets
Chapter 5 : Additional handsets Note You can subscribe up to 5 handsets on one base. Receiving an internal call. Each handset can register to 4 base stations and • The internal call icon and the number of the the user can select which base they want to use. By handset calling, appear on the display. -
Page 17: Chapter 6: Caller Id
Chapter 6 : Caller ID Note When you receive a call, the telephone number Storing a number from the call list in the phone of the caller, the date and time appears on the book handset display. If the name is programmed in •... -
Page 18: Chapter 7 : Troubleshooting
Chapter 7 : Troubleshooting Symptom Possible cause Solution No Display; Batteries fitted Check fitment and polarity of the display remains unlit batteries Batteries discharged Recharged the batteries Handset turned off Turn ON the handset No Tone Telephone cord badly connected Check the telephone cord connection Line is occupied by another... -
Page 19: Chapter 8 : Specifications
Chapter 5 : Specifications Standard DECT (Digital Enhanced Cordless Telecommunications) GAP (Generic Access Profile) Frequency range: 1880 MHz to 1900 MHz Number of channels: 10 duplex channels Moudulation: GFSK Speech coding: 3 kbit/s Emission power: 10mW (average power per channel) Range: 300m in open space / 50m maximum in-house Base power supply:... -
Page 20: Belkin International, Inc. Limited Year Product Warranty
In the event that Belkin is unable to repair THIS WARRANTY CONTAINS THE SOLE WARRANTY or replace the product (for example, because it has OF BELKIN.THERE ARE NO OTHER WARRANTIES,... - Page 21 Business Support 13 4 49 bizsupport@iinet.net.au Belkin 1800 235 546 Open 4 hours a day, 7 days a week © 009 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. P75007au-G...
