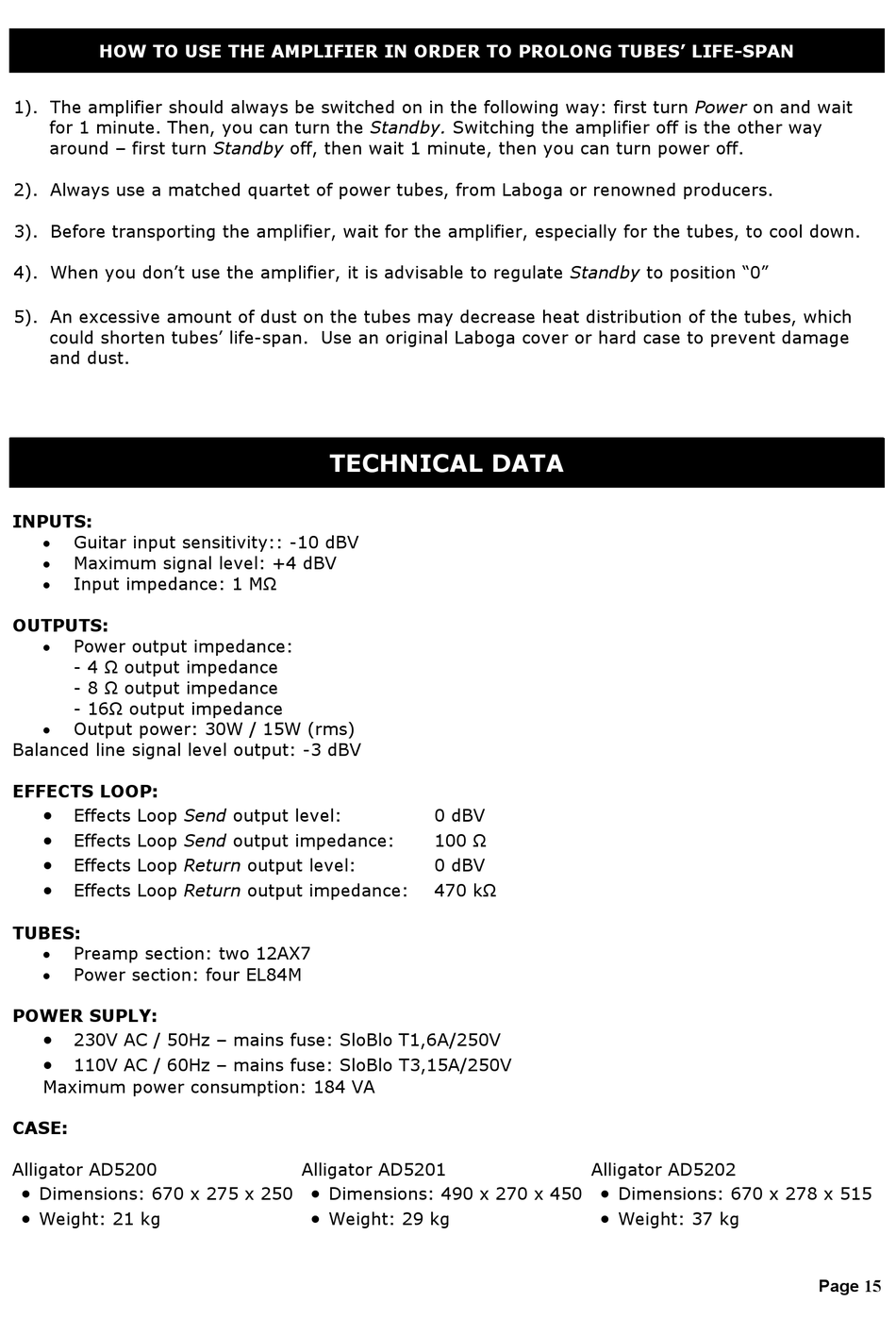

HOW TO USE THE AMPLIFIER IN ORDER TO PROLONG TUBES' LIFE-SPAN
1). The amplifier should always be switched on in the following way: first turn Power on and wait
for 1 minute. Then, you can turn the Standby. Switching the amplifier off is the other way
around – first turn Standby off, then wait 1 minute, then you can turn power off.
2). Always use a matched quartet of power tubes, from Laboga or renowned producers.
3). Before transporting the amplifier, wait for the amplifier, especially for the tubes, to cool down.
4). When you don't use the amplifier, it is advisable to regulate Standby to position "0"
5). An excessive amount of dust on the tubes may decrease heat distribution of the tubes, which
could shorten tubes' life-span. Use an original Laboga cover or hard case to prevent damage
and dust.
INPUTS:
 Guitar input sensitivity:: -10 dBV
 Maximum signal level: +4 dBV
 Input impedance: 1 MΩ
OUTPUTS:
 Power output impedance:
- 4 Ω output impedance
- 8 Ω output impedance
- 16Ω output impedance
 Output power: 30W / 15W (rms)
Balanced line signal level output: -3 dBV
EFFECTS LOOP:

Effects Loop Send output level:

Effects Loop Send output impedance:

Effects Loop Return output level:

Effects Loop Return output impedance:
TUBES:
 Preamp section: two 12AX7
 Power section: four EL84M
POWER SUPLY:

230V AC / 50Hz – mains fuse: SloBlo T1,6A/250V

110V AC / 60Hz – mains fuse: SloBlo T3,15A/250V
Maximum power consumption: 184 VA
CASE:
Alligator AD5200

Dimensions: 670 x 275 x 250

Weight: 21 kg

TECHNICAL DATA

0 dBV
100 Ω
0 dBV
470 kΩ
Alligator AD5201

Dimensions: 490 x 270 x 450

Weight: 29 kg
Alligator AD5202

Dimensions: 670 x 278 x 515

Weight: 37 kg
Page 15
