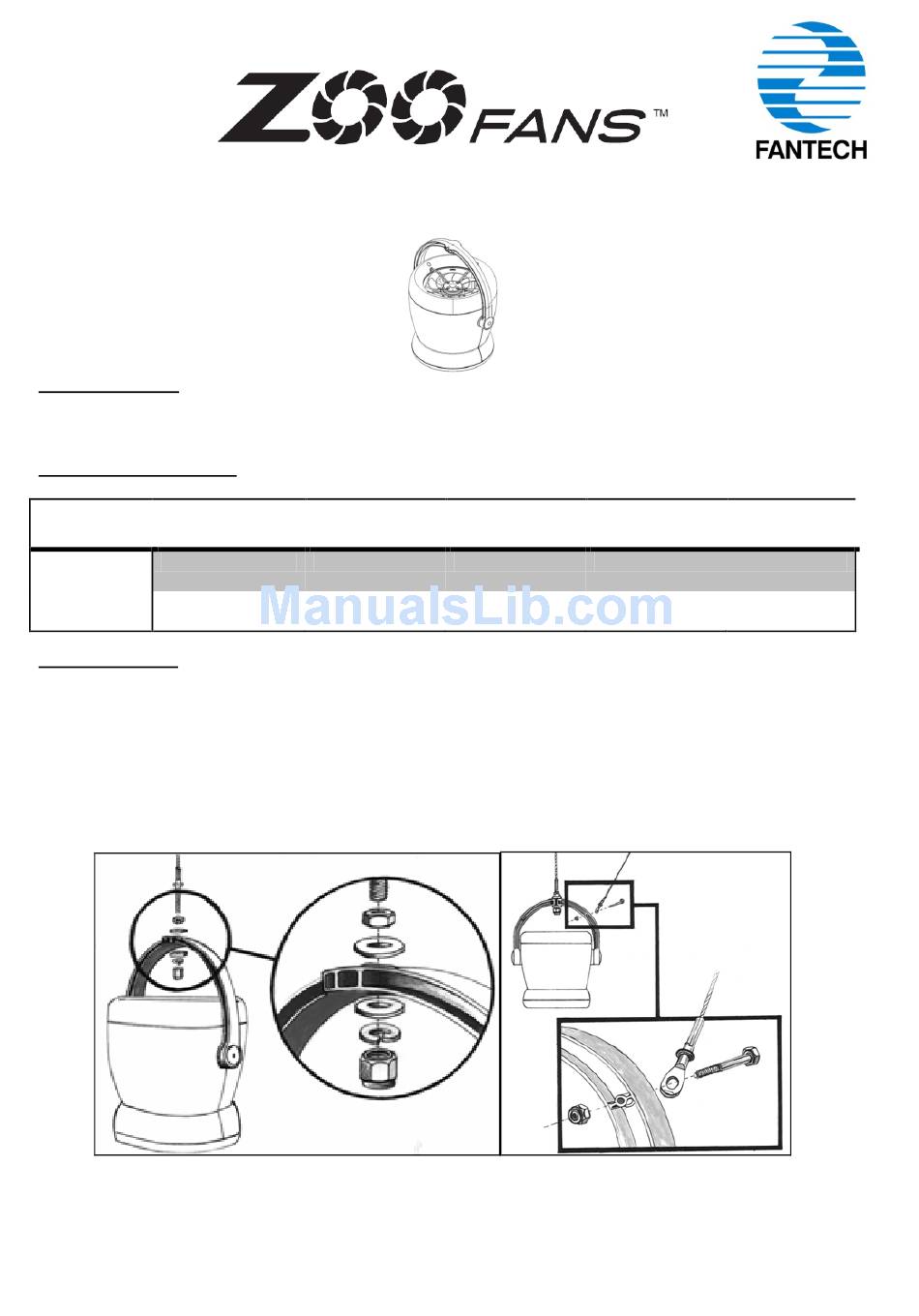

ZFH30 / ZFH60 Installation and Operation Guide

PRE-INSTALLATION

Installation of this product should be carried out by an appropriately qualified person. Ensure the product has arrived in
good condition and that the impeller is free to rotate.

ZOO FANS SPECIFICATIONS

Model
Width
ZFH30
0.44 m
ZFH60
0.53 m

HANGING THE FAN

The fan must be visible from its switch/controller unless a suitable means of disconnect is used at the motor. The fan
intake must be 0.3m from any obstruction. If the fan is to be hung below ZOO Fans are designed to be hung vertically or at
an angle. For vertical installations, proceed to STEP 1 below. To install your ZOO Fan at an angle, additional hardware is
required (all thread).

STEP 1: Fasten Main Hanging Cable and Stabilization Tether

Using the hardware and cable from the 200LB bag, attach the 2.4m Cable and fit the hardware as shown in Figure 1. Using
the hardware and 3.7m cable from the 100LB bag, attach the cable and fit the hardware as shown in Figure 2.
Part no.: INST-ZOOFAN
Weight
6.8 kg
10.5 kg
Figure 1
09/12
Full Load
Max RPM
Current
0.24 A @ 230V
1370
0.38 A @ 230V
1230
Figure 2
3
Max m
/s
0.316
0.566
Page 1 of 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZFH30 and is the answer not in the manual?

Questions and answers

Summary of Contents for Zoo Fans ZFH30

  • Page 1 ZFH30 / ZFH60 Installation and Operation Guide PRE-INSTALLATION Installation of this product should be carried out by an appropriately qualified person. Ensure the product has arrived in good condition and that the impeller is free to rotate. ZOO FANS SPECIFICATIONS...
  • Page 2 STEP 2: Hanging the Fan and securing the Gripples Hang the fan using the Main Hanging Cable to the Truss, I-Beam, or support beam using the Gripple supplied (Figure 3). Pull the cable through the Gripple until the desired height is achieved. When this is done, attach the Stabilization Tether to the Truss, I-Beam, or support beam using the Gripple provided.
  • Page 3 Part no.: INST-ZOOFAN 09/12 Page 3 of 3...
