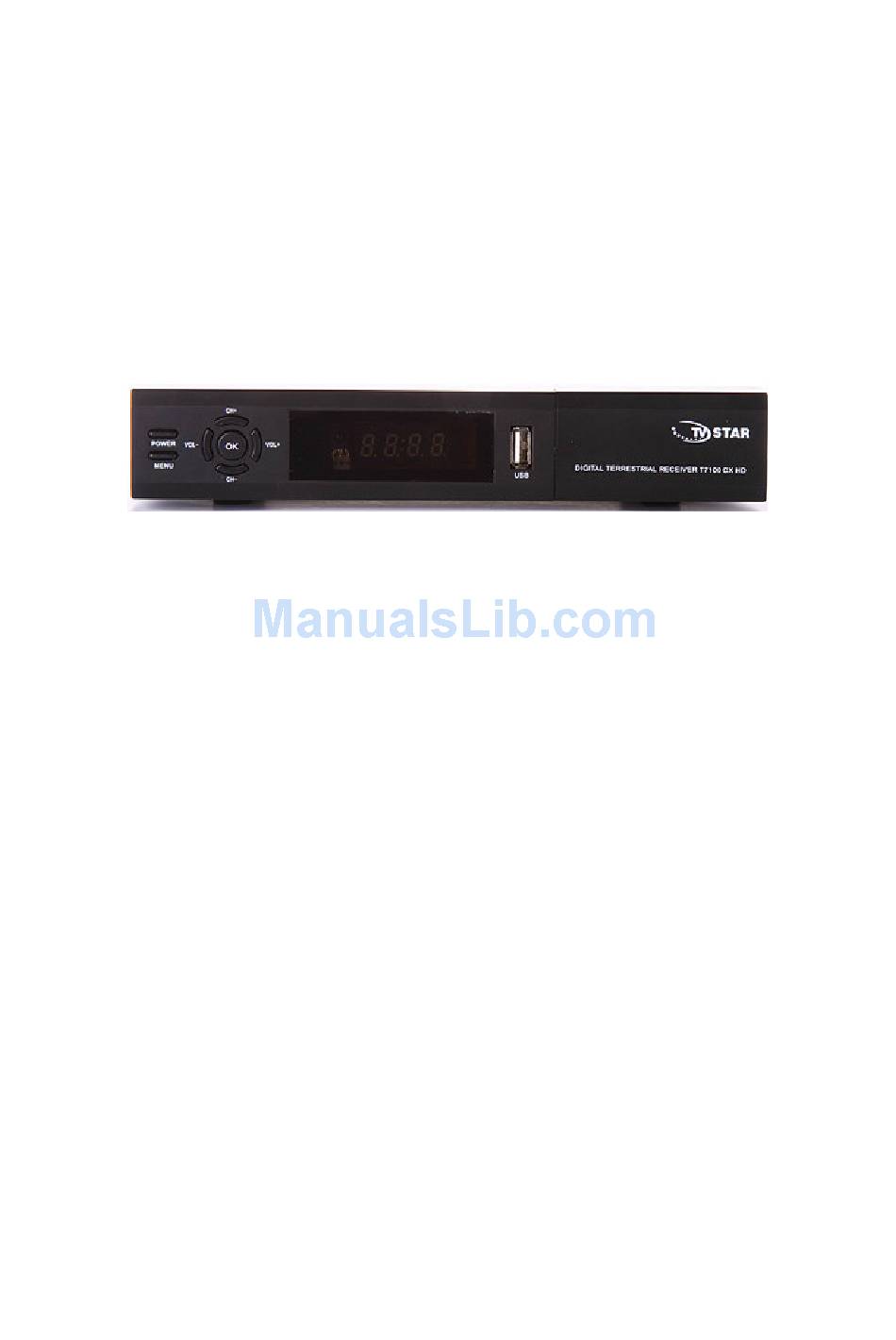

- Page 1 DIGITAL TERRESTRIAL RECEIVER TV STAR T7100 CX HD USER MANUAL...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions........................ 3 Front and Rear Panel..........................4 Remote Controle ........................... 5 Connecting to a Television ........................6 Connecting to an Audio System ......................7 Connecting to a DVD Recorder or VRC ....................8 First time Installation ..........................8 Troubleshooting .......................... -
Page 3: Important Safety Instructions
Important Safety Instructions About manual This manual covers general functional features of your decoder (signal converter). All initial information is provided in this document. Prior operation, please, ensure that your decoder is properly installed. After, using a remote control please perform indications, provided in this manual. Since you will familiarize with the remote control and analyse features of decoder, this manual will be useful as a source of references. -
Page 4: Front And Rear Panel
Accessories AAA battery Power adapter SUN-557 Remote Control User Manual Front and Rear Panel 1.Front panel 1. MENU: To enter into the main menu and exit all menus 2. VOL-: Decrease the volume of sound 3. CH-: Change channels or items from top to bottom on the menus 4. -
Page 5: Remote Controle
9. CH+: Change channels or items from top to bottom on the menus 10. CARD SLOT: Decode the smart card (You can select open or close the door) 2. Rear panel 1. RF IN: Use to connect an antenna. 2. RF LOOP THROUGH: Use it when connecting to another STB 3. -
Page 6: Connecting To A Television
SUBTITLE: Display subtitle options (availability depends on the channel) LANG: Change the Audio language and Left/Right channel (availability depends on the channel) TIMESHIFT: Use after RECORD button for timeshift EXIT: Use this key to quit current menu. INFO: Display information about the current channel. TV/RADIO: Switch between Digital Radio and DVB-T modes. -
Page 7: Connecting To An Audio System
For the highest quality connection use a direct HDMI connection, see below. Connecting to an Audio System... -
Page 8: Connecting To A Dvd Recorder Or Vrc
Connecting to a DVD Recorder or VRC First time Installation After all connections have been made properly,switch on TV and make sure the unit is connected to the main Power.Press power button to switch the unit on. If you are using the unit first time or have restored the unit to Factory Default,the Installation Guide Menu will appear on you TV screen. - Page 9 Mangage Settings.Select an option and press OK or RIGHT to adjust that setting.Press the EXIT button to exit the Menu. (a) Program Edit To edit your program prederences (lock/skip/favourite/move or delete),you will need to enter the Program Edit Menu.This Menu requires a password to access.Enter the default password’0000’.
- Page 10 To confirm your settings and exit the menu, press the EXIT button. Press the YELLOW button to disable the locked channels function. To view the locked channels, you will be required to enter either the default password '0000' or your last set password. The master unlock password is '8888'. (b) EPG (Electronic Program Guide) The EPG is an on-sreen TV guide that shows sheduled programs seven days on advance for every tuned channel.
- Page 11 [NTSC]: for NTSC system TV. [PAL]: for PAL system TV Channel Search To access the Menu, Press MENU then select [Search Channel] using the RIGHT/LEFT key. The Menu provides options to adjust the Search Channel settings. Press UP/DOWN to select an option and press RIGHT/LEFT to adjust the setting.
- Page 12 Select the Time Zone Offset when [Time Offset] is set to Manual. Option To access the Menu, Press MENU then select [Option] using the RIGHT/LEFT key .The Menu provides options to adjust the OSD Language,Subtitle Language and Audio Language. Select an option and press RIGHT/LEFT to adjust the setting. Press EXIT to exit the Menu. (a) OSD (On Screen Display) Language Select an OSD language.
- Page 13 To access the Menu, Press MENU then select [USB] using the RIGHT/LEFT keys. The Menu provides options to playback Music, Photo and Multimedia files .It can support AVI, MP3,WMA,JPEG and BMP formats. The unit will only support USB device with FAT32 file system. It will not support NTFS file system.
- Page 14 Press “timer” button enter into “schedule” menu, then press the red button start to edit. Highlight the yellow you wish to setting start-time, end-time, channel No. Press the OK button Press the EXIT button The schedule window will be displayed with a number of options. You will be able to select from the following two options: Mode: View or Record Once you have made your selections press the enter key to confirm the recording time slot.
-
Page 15: Troubleshooting
Note: Time Shifting will only be available when USB HDD is connected to the system and read/write speed is high enough to do that. Press [Stop] button to end the timeshift, and it will back to the normal playing of the program Troubleshooting Problem Potential Reasons... -
Page 16: Technical Specifications
Technical Specifications Item Sub Item Parameter Input Frequency 174~230MKz 470~862MKz RF Input level -82~-20dBm Tuner IF Bandwidth 7MHz and 8MHz Modulation QPSK, 16QAM, 64QAM Decoder Format MPEG1; MPEG2; MPEG4 (H.264), SD, HD Output Format SD 720x576, HD 1280x720 (720p), 1920x1080 (1080i), Video 4:3 ir 16:9 Output Port...
