- Page 1 HIGH DEFINITION DIGITAL RECEIVER FULL HD 1080p TV STAR T1010p HD USB PVR USER MANUAL...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions........................ 3 Front and Rear Panel..........................4 Remote Controle ........................... 5 Connecting to a Television ........................6 Connecting to a DVD Recorder or VRC ....................7 First time Installation ..........................8 Troubleshooting ..........................14 Technical Specifications ........................15... -
Page 3: Important Safety Instructions
Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -

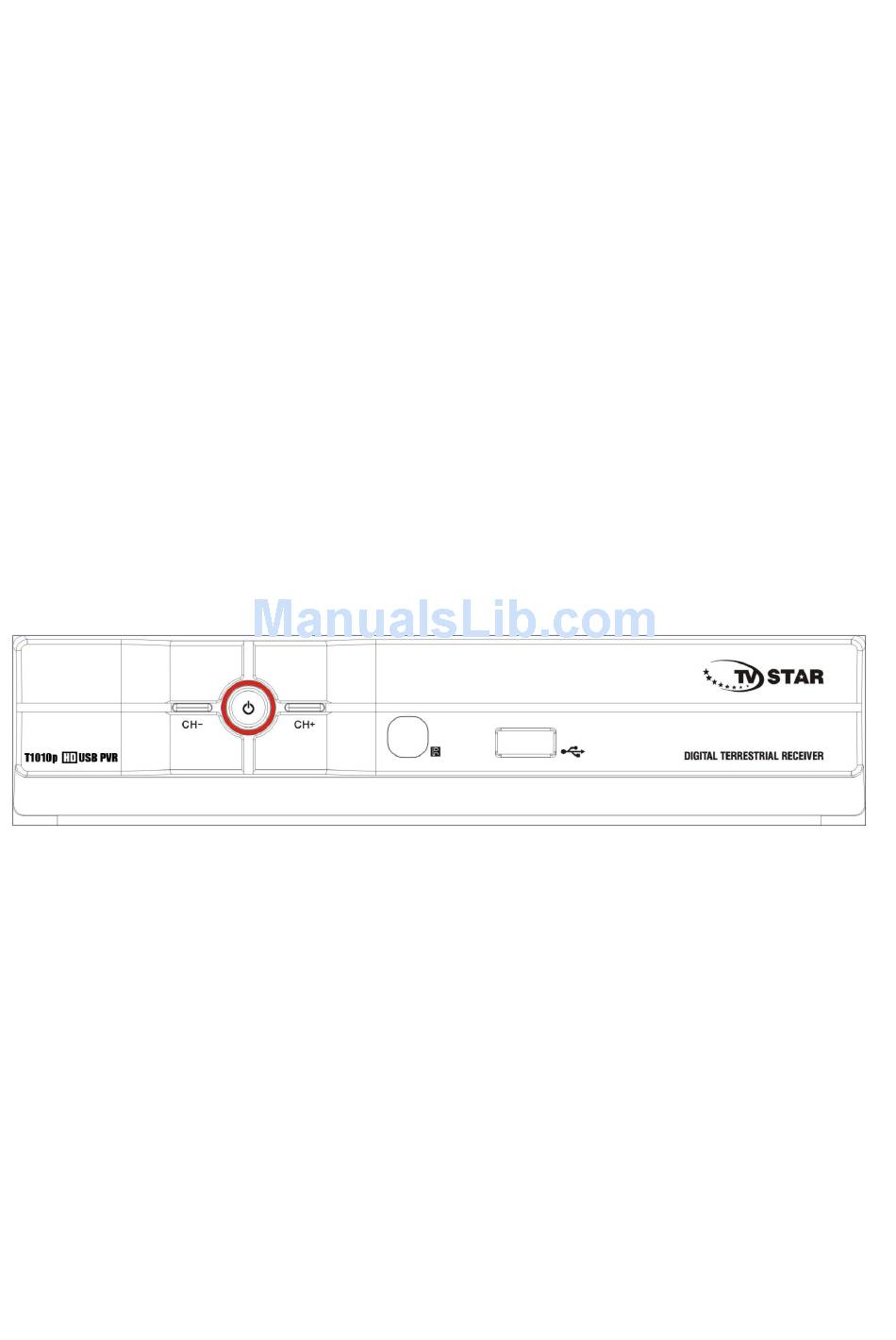

Page 4: Front And Rear Panel
This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of life separately from your household waste. There are separate collection systems for recycling. For more information, please contact the local authority or your retailer where you purchased the product. -
Page 5: Remote Controle
3. CH+: Change channels or items from top to bottom on the menus 4. REMOTE CONTROL SENSOR: used to channels without using the Remote Control 5. USB: For software upgrade and media playback 2. Rear panel 1. RF IN: Use to connect an antenna. 2. -
Page 6: Connecting To A Television
TIMESHIFT: Use after RECORD button for timeshift EXIT: Use this key to quit current menu. INFO: Display information about the current channel. TV/RADIO: Switch between Digital Radio and DVB-T modes. PAGE+/PAGE-: To navigate inside the menus. TIMER: Use to access ON/OFF timer directly. PVR and Multimedia keys Installation the Batteries Remove the battery cover from... -
Page 7: Connecting To A Dvd Recorder Or Vrc
Connecting to a DVD Recorder or VRC... -
Page 8: First Time Installation
First time Installation After all connections have been made properly,switch on TV and make sure the unit is connected to the main Power.Press power button to switch the unit on. If you are using the unit first time or have restored the unit to Factory Default,the Installation Guide Menu will appear on you TV screen. - Page 9 2. Repeat the previous step to select more channels to delete. Skip TV or Radio Channel 1. Select the chennel you would like to skip and press the GREEN button. A skip symbol is displayed. The channel is marked as a skip. 2.
- Page 10 [By ONID] Sort the channels accroding to ONID (d) LCN (Logical channel number) Set LCN on or OFF if you want to sort the channels manually. Picture Setting To access the Menu,Press MENU then select [Picture] using the RIGHT/LEFT key .The Menu provides options to adjust the video settings.Press UP/DOWN to select an option and press RIGHT/LEFT to adjust that setting.Press EXIT to exit the menu.
- Page 11 If a channel is found,it is saved and added to the channels list.If channels can not be found during searching ,the unit will exit automatically. (c) Country Select your country of residence. (d) Antenna Power Enable Antenna Power if an external active antenna is connected. Time Setting To access the Menu,Press MENU then select [Time] using the RIGHT/LEFT key .The Menu provides options to adjust the...
- Page 12 Set or change the password for locked programs. Enter your old password nor the default password’0000’. You will then be asked to enter your new password. Press OK button to confirm your new password. Once it is confirmed, press EXIT to exit the Menu. The master unlock password is ‘8888’’. (b) Restore Factory Default Reset you STB to the Default Factory Settings.
- Page 13 - Subtitle BG: [White]: Displays the subtitle in white background. [Transparent]: Displays the subtitle in transparent background. [Grey]: Displays the subtitle in grey background. [Yellowgreen]: Displays the subtitle in yellowgreen background. - Subtitle Font Color: [Red]: Displays Subtitle in red font. [Blue]: Displays Subtitle in blue font.
-
Page 14: Troubleshooting
- Some USB devices may not be properly recognized. - Even when they are in a supported format, some files may not play or display depending on the content. (e) Timeshift When you are playing the program, you can insert the USB, and at any time you can press the [Time shift] button, the frame will be paused, and you may press the [PLAY] button after a second, it will start to timeshift now. -
Page 15: Technical Specifications
Technical Specifications Item Sub Item Parameter Input Frequency 174~230MKz 470~860MKz RF Input level -78~-20dBm Tuner IF Bandwidth 7MHz and 8MHz Modulation QPSK,16QAM,64QAM Decoder Format MPEG4 AVC/H.264 HP@L4 MPEG2 MP@ML.HL Output Format 576P , 720P, 1080i, 1080p, 4:3 ir 16:9 Video Output Port HDMI(V1.3C), RGB, CVBS Decoder Format...
