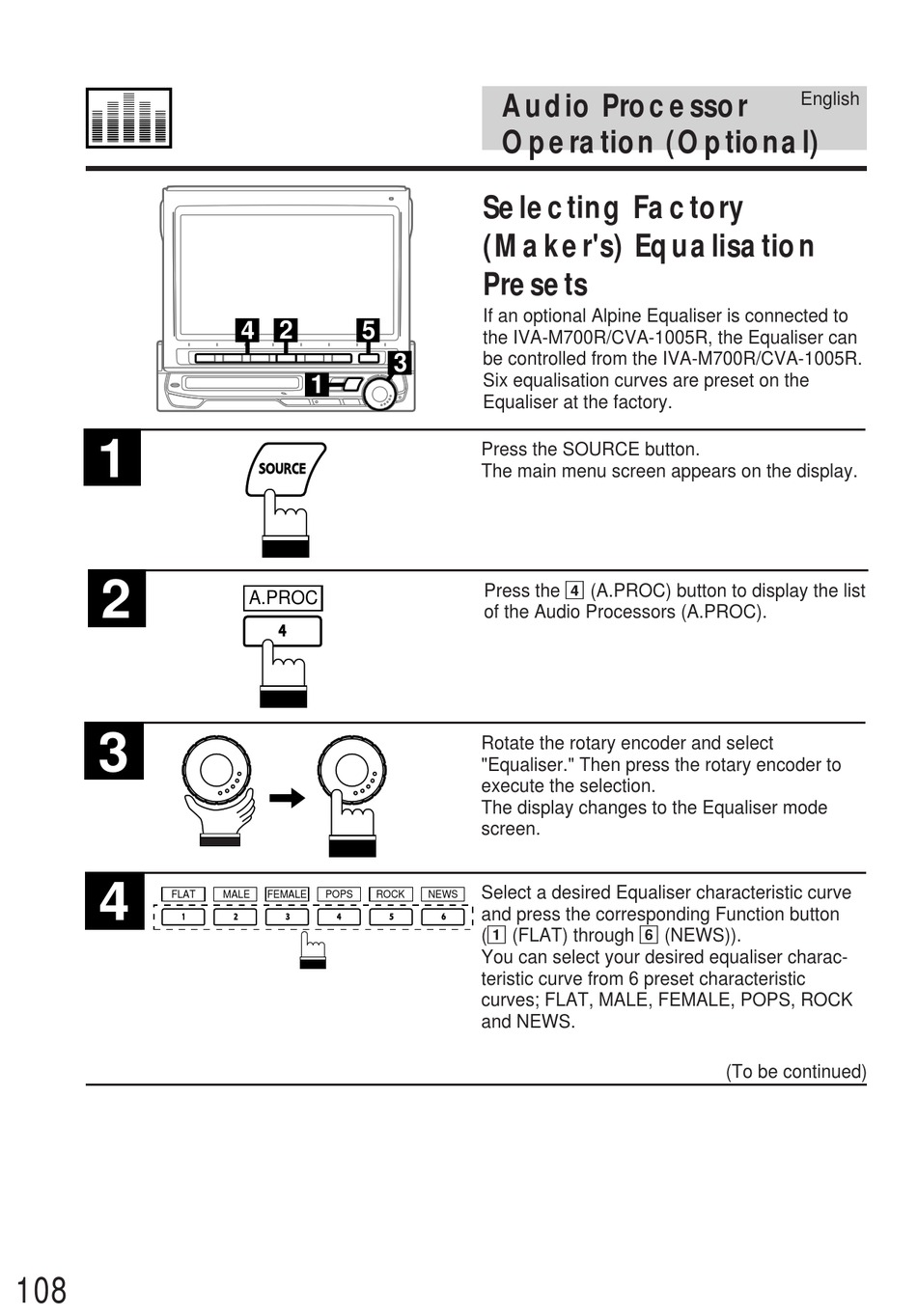

Alpine IVA-M700R Owner's Manual page 108

1
2
3
4
FLAT
108
4 2 5
3
1
A.PROC
MALE FEMALE POPS ROCK
Audio Processor
Operation (Optional)
Selecting Factory
(Maker's) Equalisation
Presets
If an optional Alpine Equaliser is connected to
the IVA-M700R/CVA-1005R, the Equaliser can
be controlled from the IVA-M700R/CVA-1005R.
Six equalisation curves are preset on the
Equaliser at the factory.
Press the SOURCE button.
The main menu screen appears on the display.
Press the 4 (A.PROC) button to display the list
of the Audio Processors (A.PROC).
Rotate the rotary encoder and select
"Equaliser." Then press the rotary encoder to
execute the selection.
The display changes to the Equaliser mode
screen.
Select a desired Equaliser characteristic curve
NEWS
and press the corresponding Function button
(1 (FLAT) through 6 (NEWS)).
You can select your desired equaliser charac-
teristic curve from 6 preset characteristic
curves; FLAT, MALE, FEMALE, POPS, ROCK
and NEWS.
English
(To be continued)
