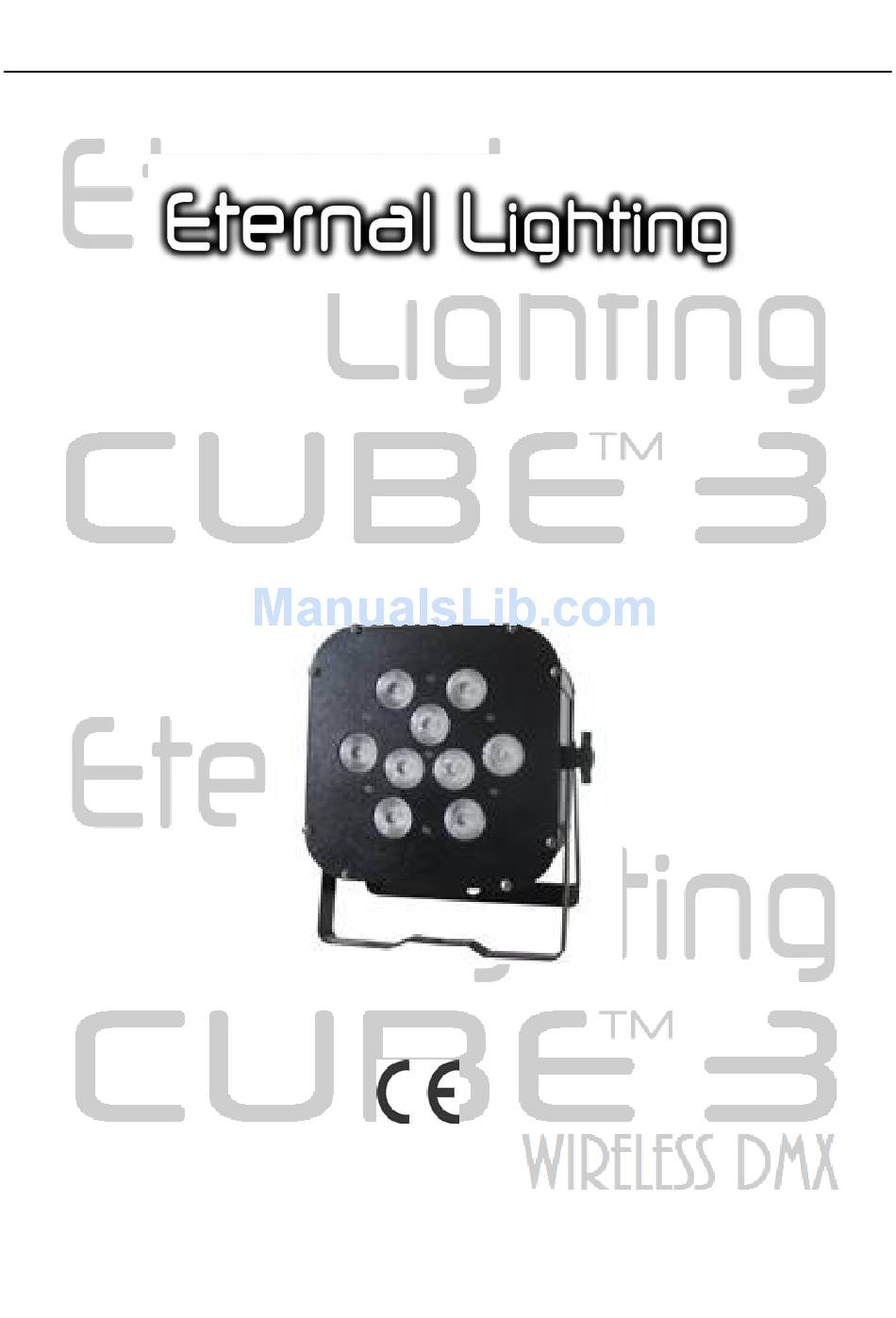

- Page 1 CUBE3™ RGB TRI LED User Manual (Battery Powered DMX LED Fixture) Please read over this manual before operating the light.
- Page 2 Do not return this unit to your dealer without first contacting. Introduction: The CUBE3™ RGB TRI LED is a DMX intelligent LED par light. This par light is lightweight and compact which makes it a great piece for mobile DJ‟s and clubs.
- Page 3 ● The ambient temperature must always be under +35° C Set Up Power Supply: Before plugging your unit in, be sure the source voltage in your area matches the required voltage for your CUBE3™ RGB TRI LED. The CUBE3™ RGB TRI...
- Page 4 DMX chain. Operating Instructions Operating Modes: You can use the CUBE3™ RGB TRI LED in 4 ways: ● Sound activation – The unit will activated by the sound signal. ● Static display – The unit will display the pattern in static way.
- Page 5 DMX Values and Functions 3CH Mode Value Description 0-255 RED dimmer (0-255) 0-255 GREEN dimmer (0-255) 0-255 BLUE dimmer (0-255) 7CH Mode Value Description 0-255 RED dimmer (0-255) 0-255 GREEN dimmer (0-255) 0-255 BLUE dimmer (0-255) 0-255 R, G, B dimmer (0-255) 0-255 Auto Slow to Fast (0-255) 0-255...
- Page 6 LED Operation Menu: After initialization, the unit is ready for setting and working. Please see the following table for setting information. Display Function ADDR DMX Address（0-512） CHMD 3CH/7CH SLND NAST Master SLAL Slave SHND SOND Sound control COLO Color choose 1-7 Auto operation FADE Running Speed (SP1-SP8)
- Page 7 (1) Alpha-numeric display (2) Touch switches (3) Microphone (4) DMX-In socket (5) DMX-Out socket (6) Power switch (7) Battery switch (8) GND (9) Power socket and fuse holder (10) Fixation screw (11) Mounting bracket There are two buttons on the rear panel of the lighting. One is for power, and the other is for battery.
- Page 8 For wireless receiver Wireless Module of DMX512 MODE：PCB-WI-DMX Brief： DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data (generated by console )by wireless way, which solves lighting control issues of wireless transmitting completely between console and lighting, lighting and lighting and so on, It get rid of connecting cable limited completely And also can ensure without any time delay when signal data is transmitting, signal data is real time and reliably.
- Page 9 (1) Antenna (2)Power switch for wireless receiver (3) Wireless indicator (4)ID code selector Product feature: Product name：2.4G wireless DMX512 R/T molding board Small size，Easy to suit for interior of accessed lighting Single key to operate，tricolor LED displaying Transmitting standard DMX512 protocol data of console，also can transmitting lighting and lighting DMX512 protocol data.
- Page 10 Compatible series product as follows: Wireless transmitter Operating manual： ID code and LED color corresponding relationship： 1：RED 2：GREEN 3：RED+GREED 4：BLUE 5：RED+BLUE 6：GREEN+BLUE 7：RED+GREED+BLUE Press button on transmitter to select group to match corresponding color on the receiving fixture.
- Page 11 1. Quiet or high pitched sounds will not activate the unit. If problems are not resolved, contact your dealer for service. Specifications Model: CUBE3™ RGB TRI LED Working Position: Any safe working position Power Supply: Switching power supply Voltage: AC 100-220V /50~60Hz...
- Page 12 LED: 10pcs (3in1) Net Weight: 7lbs Dimensions: 8 inches x 8 inches x 6 inches Note: All information is subject to change without prior notice. 2011-07-06...
