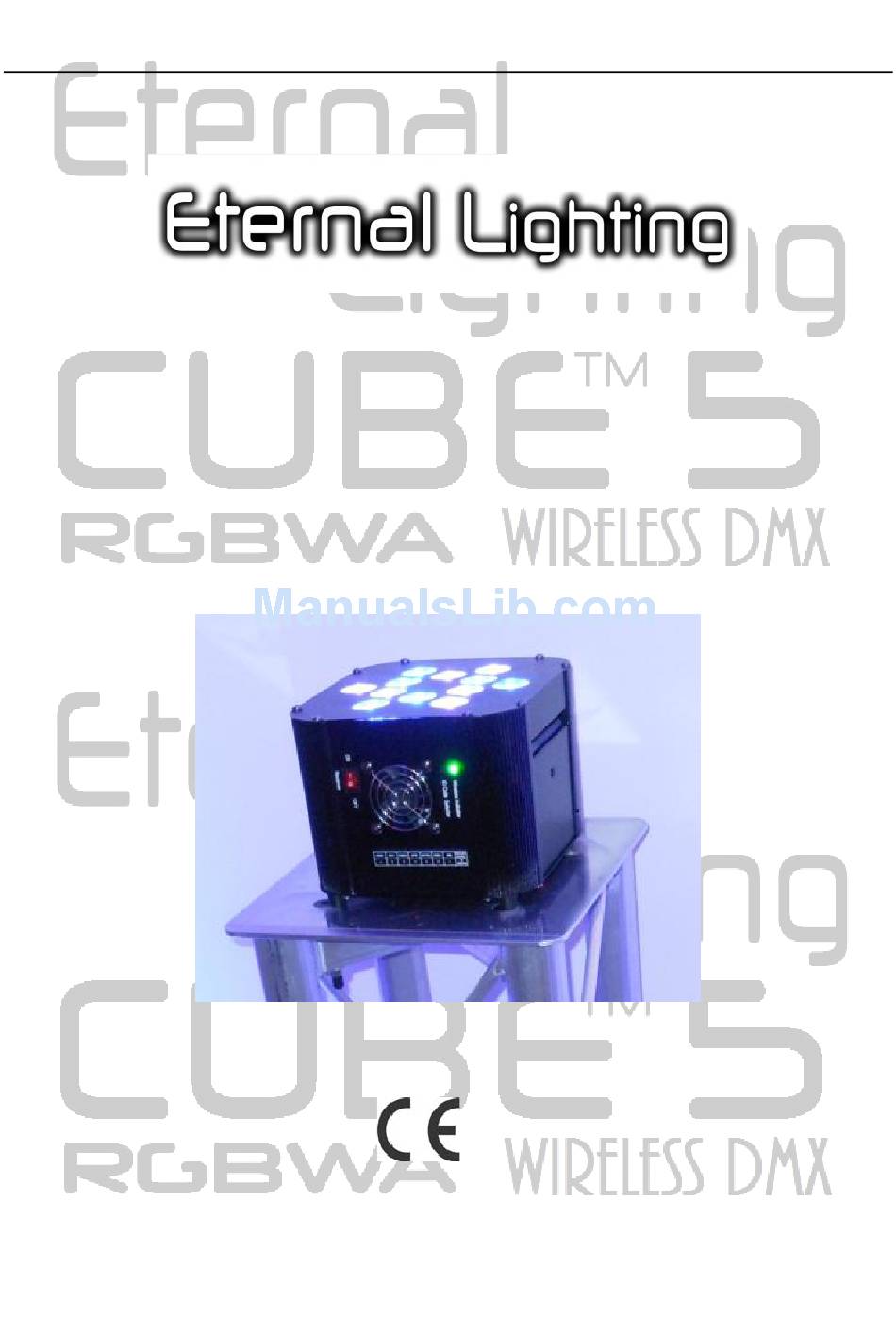

- Page 1 CUBE5™ RGBWA LED User Manual (Battery Powered DMX LED Fixture) Please read over this manual before operating the light.
- Page 2 Do not return this unit to your dealer without first contacting. Introduction: The CUBE5™ RGBWA LED is a DMX intelligent LED par light. This par light is lightweight and compact which makes it a great piece for mobile DJ’s and clubs.
- Page 3 ● The ambient temperature must always be under +35° C Set Up Power Supply: Before plugging your unit in, be sure the source voltage in your area matches the required voltage for your CUBE4™ RGBW QUAD LED. The CUBE5™ RGBWA...
- Page 4 DMX chain. Operating Instructions Operating Modes: You can use the CUBE5™ RGBWA LED in 4 ways: ● Sound activation – The unit will activated by the sound signal. ● Static display – The unit will display the pattern in static way.
- Page 5 DMX Values and Functions 3CH, 4CH, 5CH, 8CH & 11CH Mode...
- Page 6 Touch Buttons There are four touch buttons under the LED display: Menu, Down, Up, Enter. Normally, the LED will display the current DMX address code of the fixture. At this time, presses Menu to choose the function you want to set up. Press and hold Up or Down to fast scrolling within the menu options.
- Page 7 (1) Alpha-numeric display (2) Touch switches (3) Microphone (4) DMX-In socket (5) DMX-Out socket (6) Power switch (7) Battery switch (8) GND (9) Power socket and fuse holder (10) Fixation screw (11) Mounting bracket There are two buttons on the rear panel of the lighting. One is for power, and the other is for battery.
- Page 8 Results will vary based on brightness of LEDs ● It is suggested to charge the battery for at least 8 hours, which will extend the life span of the battery. ● At the bottom of the fixture, there is a little hole which is the indicating light for the charge.
- Page 9 (1) Antenna (2)Power switch for wireless receiver (3) Wireless indicator (4)ID code selector Product feature: Product name：2.4G wireless DMX512 R/T molding board Small size，Easy to suit for interior of accessed lighting Single key to operate，tricolor LED displaying Transmitting standard DMX512 protocol data of console，also can transmitting lighting and lighting DMX512 protocol data.
- Page 10 Compatible series product as follows: Wiresless transmitter Operating manual： ID code and LED color corresponding relationship： 1：RED 2：GREEN 3：RED+GREED 4：BLUE 5：RED+BLUE 6：GREEN+BLUE 7：RED+GREED+BLUE Press button on transmitter to select group to match corresponding color on the receiving fixture.
- Page 11 1. Quiet or high pitched sounds will not activate the unit. If problems are not resolved, contact your dealer for service. Specifications Model: CUBE5™ RGBWA 10Watt LEDs DMX Working Position: Any safe working position Power Supply: Switching power supply Voltage: AC 100-220V /50~60Hz Power Consumption: 40W Colors: RGBWA Color Mixing (6) RGBA QUAD 10Watt &...
- Page 12 For more information please contact Support by email at support@eternallighting.com...
