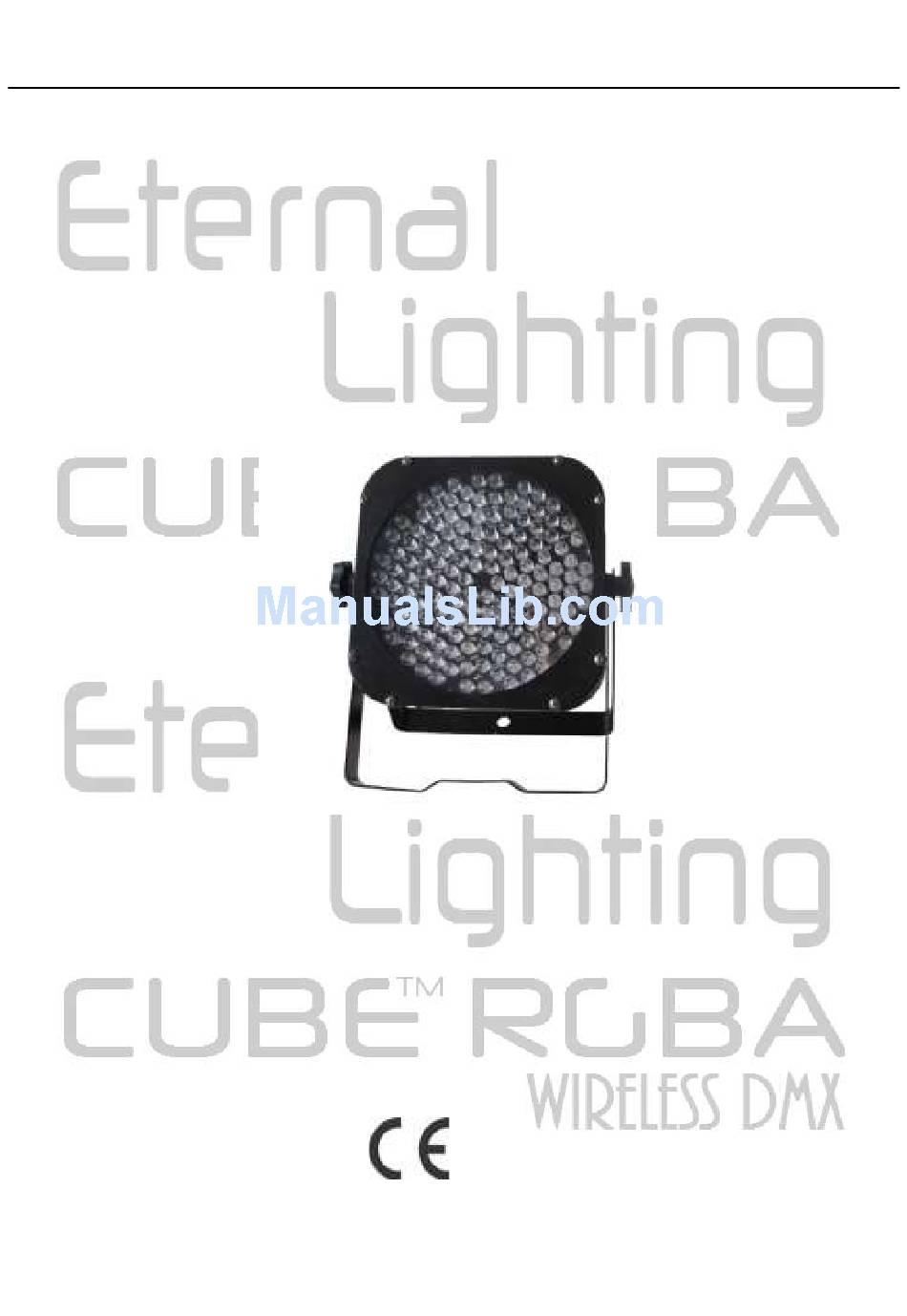

- Page 1 CUBE™ RGBA User Manual Battery Powered Wireless DMX LED Fixture Battery Powered LED Fixture – (Without DMX Built inside)
- Page 2 Please read over this manual before operating the light Most important: FIRST CHARGE THE FIXTURES FOR 6-8 Hours on the First Charge before use. Plug in Power cord. Turn off Power Switch and Turn other switch to charge. Introduction Unpacking: Thank you for purchasing the CUBE™ RGBA. Every CUBE™ RGBA has been thoroughly tested and has been shipped in perfect operating condition.
- Page 3 Safety Precautions ● To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture. ● Do not spill water or other liquids into or on to your unit. ● Be sure that the local power outlet matches that of the required voltage for your unit. ●...
- Page 4 Auto Mode - The unit will automatically chase through the different patterns. DMX control mode - This function will allow you to control the lighting with a standard DMX 512 controller. Battery powered – This function will allow you to control the lighting independently without any DMX cable DMX Mode: Operating through a DMX controller give the user the freedom to create their own programs tailored to their own individual needs.
- Page 5 0-255 R, G, B, A STROBE from slow to fast (0-255) 0-255 SOUND (Off 0-15 ON 16-255) LED Operation Menu: Touch Buttons There are four touch buttons under the LED Alpha-numerical display: Menu, Down, Up, Enter. Normally, the LED will display the current DMX address code of the fixture. At this time, presses Menu to choose the function you want to set up.
- Page 6 (1) Touch switches (2) Alpha-numeric display (3) DMX-In socket (4) DMX-Out socket (5) Power switch (6) Battery switch (7)POWER IN (8) POWER OUT (9) Fuse holder 250v 2A (10) BAT fuse 250v 5A (11).GND (12).BAT Indicator (13) Mic There are two buttons on the rear panel of the lighting. One is for power, and the other is for battery.
- Page 7 the battery. ● At the bottom of the fixture, there is a little hole which is the indicating light for the charge. When charge the light, the indicating light will be in red, and when charged full, it will be in green.
- Page 8 (1) Antenna (2)Power switch for wireless receiver (3) Wireless indicator (4)ID code selector Product feature: Product name：2.4G wireless DMX512 R/T molding board Small size，Easy to suit for interior of accessed lighting Single key to operate，tricolor LED displaying Transmitting standard DMX512 protocol data of console，also can transmit lighting and lighting DMX512 protocol data.
- Page 9 Compatible series product as follows: Wiresless transmitter Operating manual： ID code and LED color corresponding relationship： 1：RED 2：GREEN 3：RED+GREED 4：BLUE 5：RED+BLUE 6：GREEN+BLUE 7：RED+GREED+BLUE Press button on transmitter to select group to match corresponding color on the receiving fixture.
- Page 10 different ID value if you need use more than 1 group wireless net at same time in same place. The red LED flashs when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section. Green LED flash till received corrected same ID value, LED flash more fast once DMX data more fast.
- Page 11 Working Position: Any safe working position Power Supply: Switching power supply Voltage: AC 100-220V /50~60Hz Power Consumption: 20W Colors: RGBA Color Mixing LED: 198pcs of high brightness 10mm LED, Red, Green and Blue each 48pcs, Amber54pcs Warranty: 1 Year Note: All information is subject to change without prior notice. 2011-07-06...
